Version 1

(Acoustic cover screwed down)

Remove seal caps (1) and unfasten nuts (2).

Remove acoustic cover.

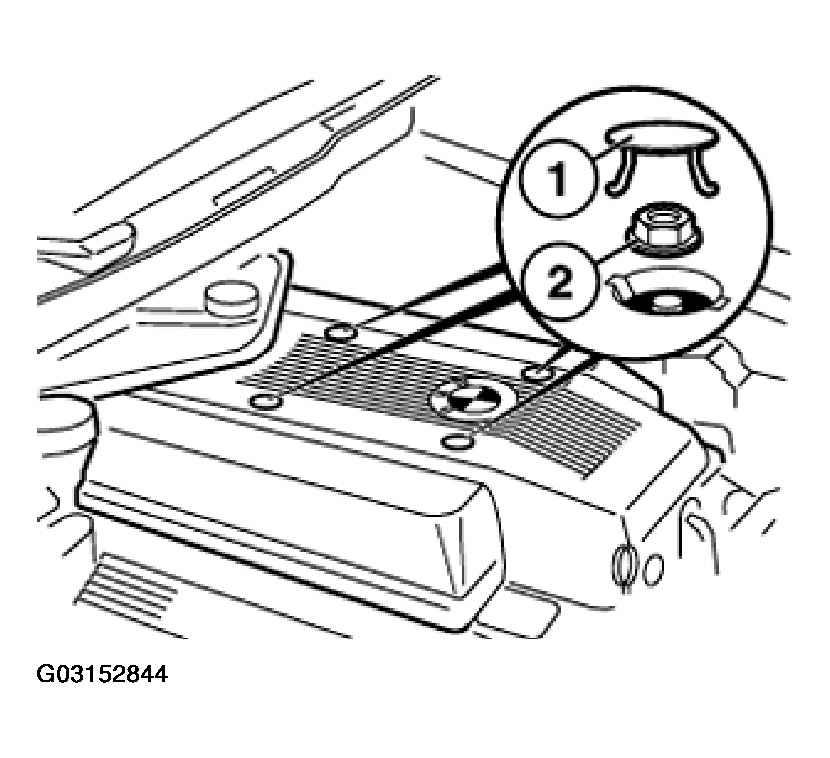

Fig 1: Removing Seal Caps And Unfastening Nuts For Acoustic Cover
G03152844Courtesy of BMW OF NORTH AMERICA, INC.
