13 00 002 Checking function of Digital Engine Electronics (DME)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Connect up MoDiC or BMW DIS.

Interrogate DME fault memory. See Fig 1 or Fig 2 .

Note down fault messages stored in memory.

Further information on troubleshooting in line with DIS or MoDiC instructions.

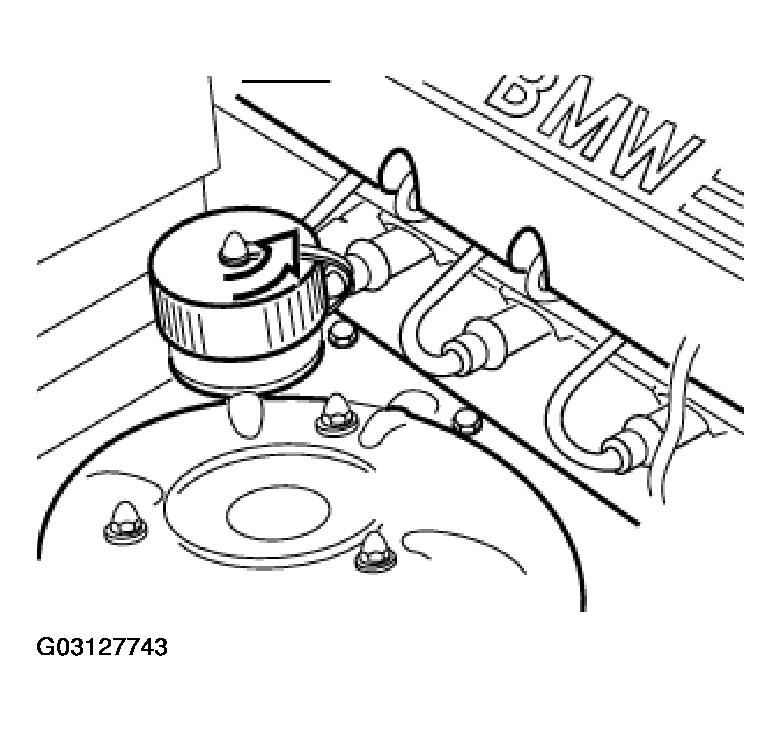

Fig 1: Locating Diagnostic Connector In Engine Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

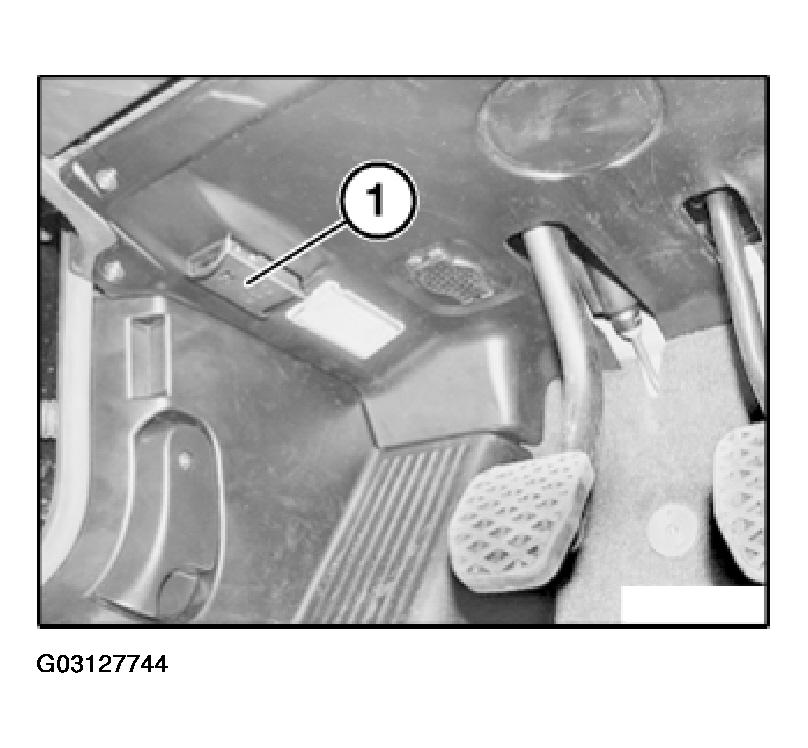

OBD socket (1) in driver's footwell:

Same procedure as above.

Fig 2: Locating OBD Socket In Driver's Footwell

Courtesy of BMW OF NORTH AMERICA, INC.
