Removal & Installation
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

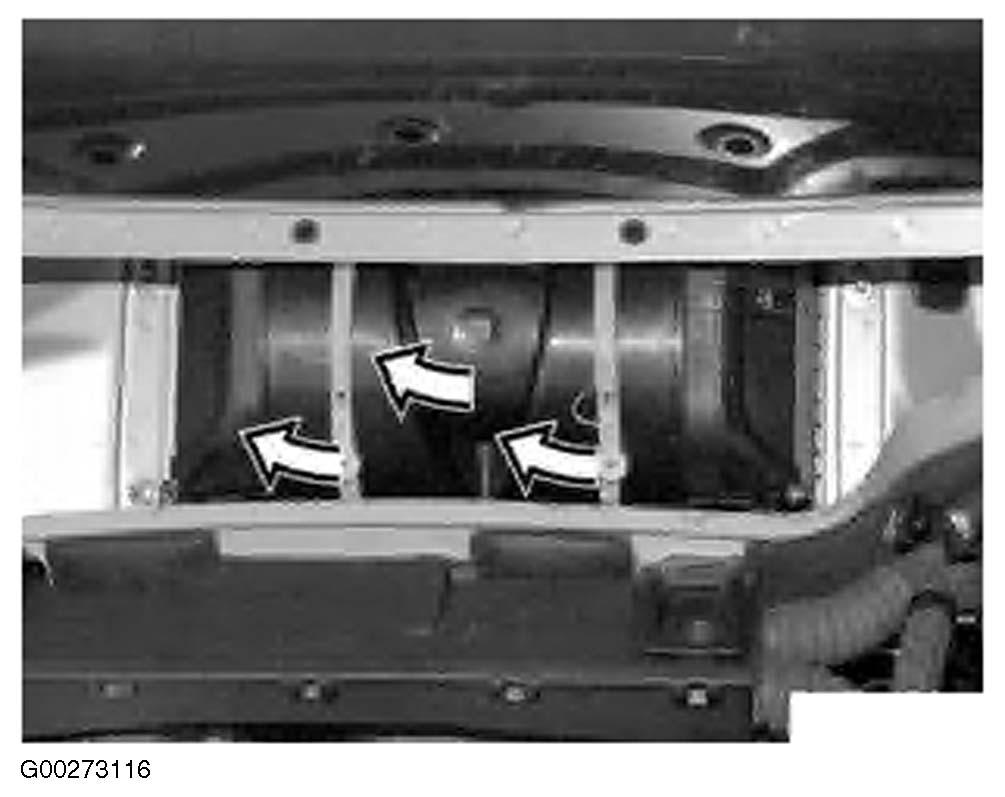

Remove windshield wiper assembly. Unfasten clamping straps and remove fan cover. See Fig 1

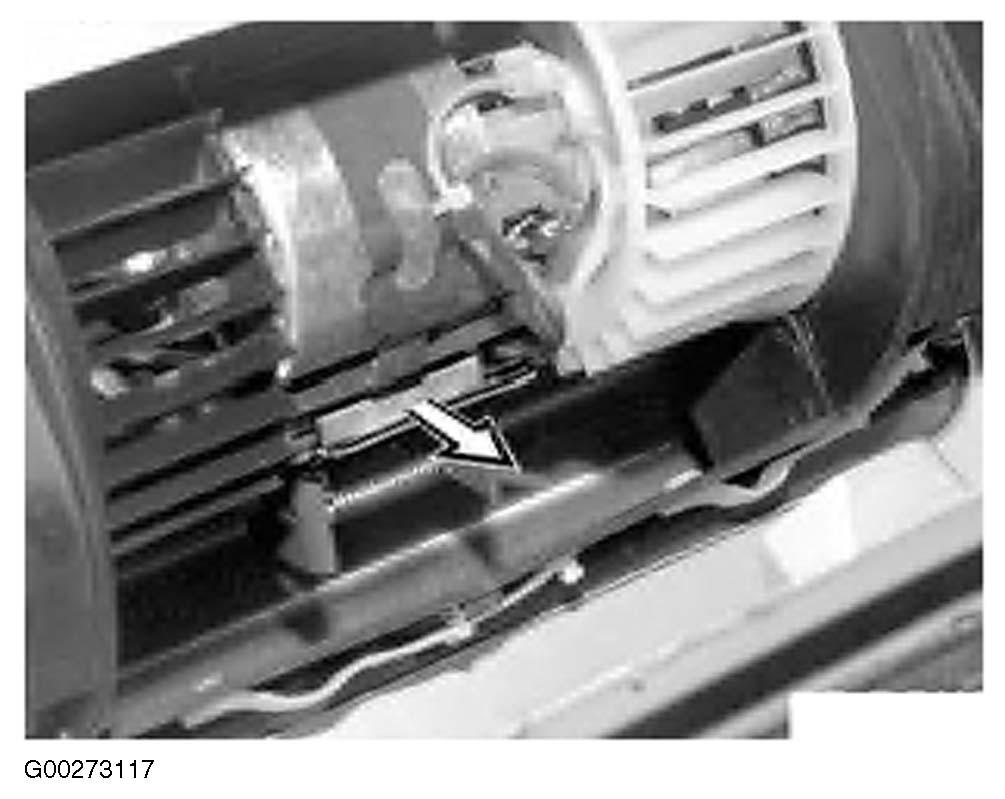

. Remove fan resistor. See Fig 2
. Disconnect fan electrical connector. Unclip fan retaining bracket. Lift out blower motor. To install, reverse removal procedure.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
