Test 06: Fuel Tank Quantity & Coolant Temperature

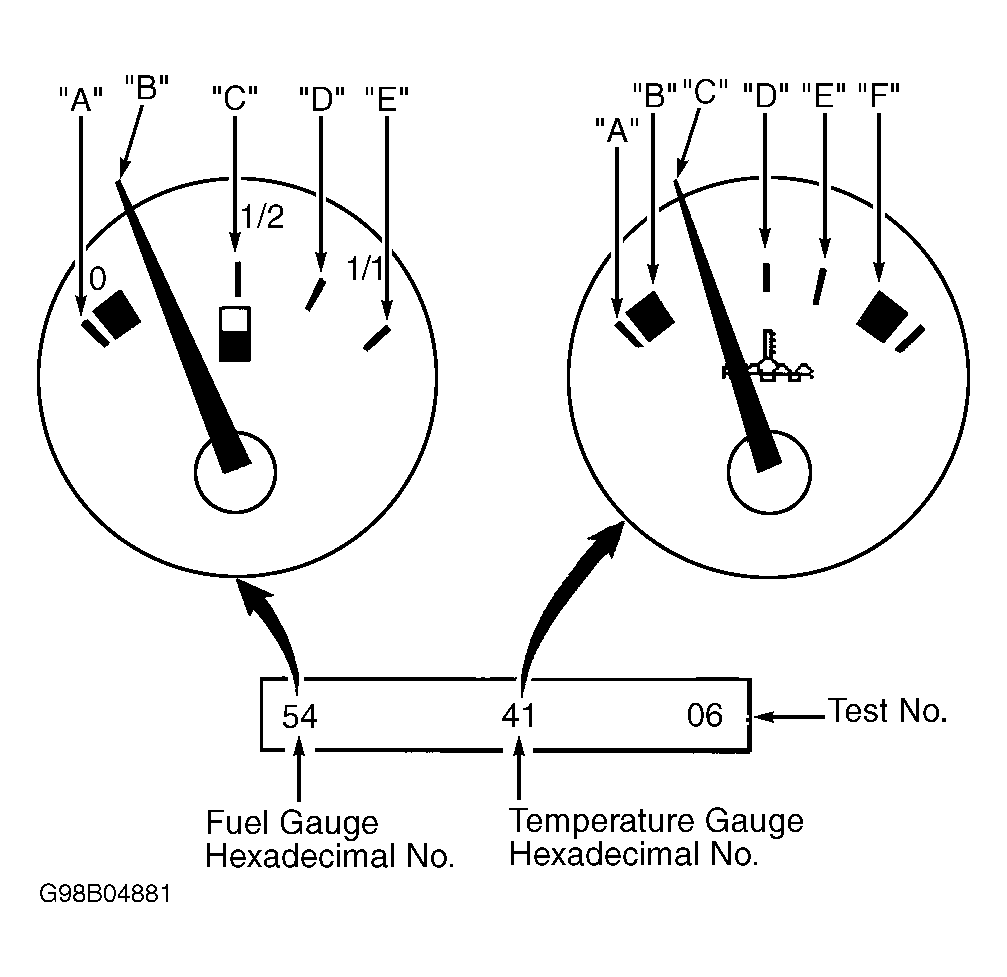

This test displays current fuel tank quantity and coolant temperature in trip odometer display as a hexadecimal number. Fuel gauge hexadecimal value is displayed as a 2-digit number in the left of the display, and temperature value is displayed in center of display as a 2-digit number. Also, fuel gauge and temperature gauge should display accordingly. See appropriate GAUGE DISPLAY VALUES table.
GAUGE DISPLAY VALUES (FUEL)
| Gauge Reading |
Hexadecimal No. |
| A (Empty) |
0d |
| B (Reserve) |
37 |
| C (1/4) |
54 |
| D (1/2) |
90 |
| E (3/4) |
c4 |
| F (Full) |
f0 |
GAUGE DISPLAY VALUES (TEMPERATURE)
| Gauge Reading |
Hexadecimal No. |
| A |
ce |
| B |
6d |
| C |
5c |
| D |
4f-23 |
| E |
1e |
| F |
18 |
Courtesy of BMW OF NORTH AMERICA, INC.
