51 41 000 Removing and installing left or right front door trim panel

WARNING: This page is about a different car, the 2001 BMW 740iL and 2001 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Lower door window completely.

Lift out footwell light (1) and remove connector.

Version with memory on passenger seat:

If necessary, lift out memory switch (2) and remove connector.

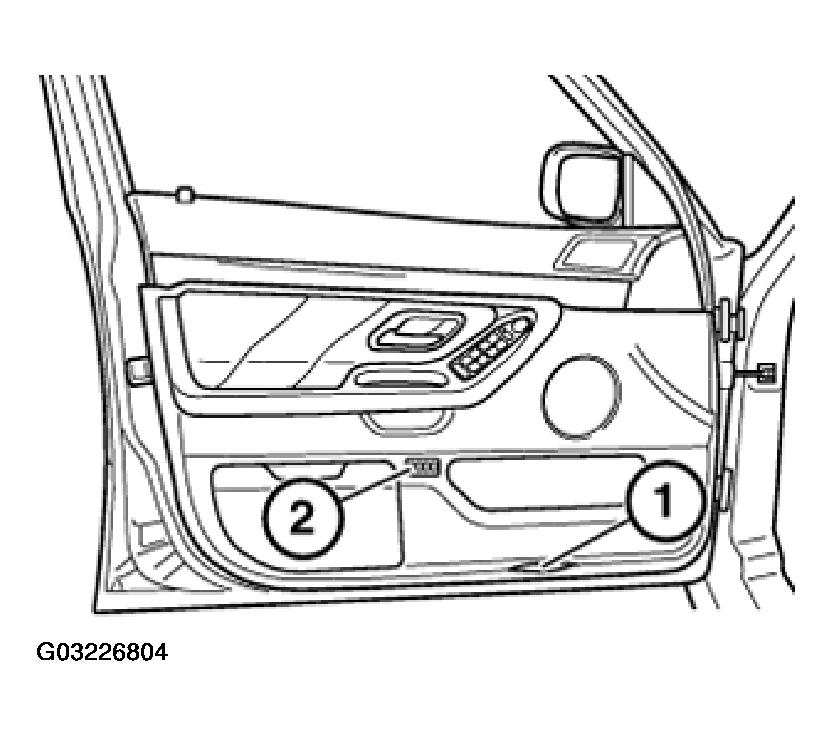

Fig 1: Lifting Out Footwell Light And If Necessary Memory Switch

Remove rocker switch (1) for power window, refer to 61 31 115 REPLACING ROCKER SWITCH FOR SIDE-WINDOW OPERATION .

Lift out finisher (2) and unfasten screw.

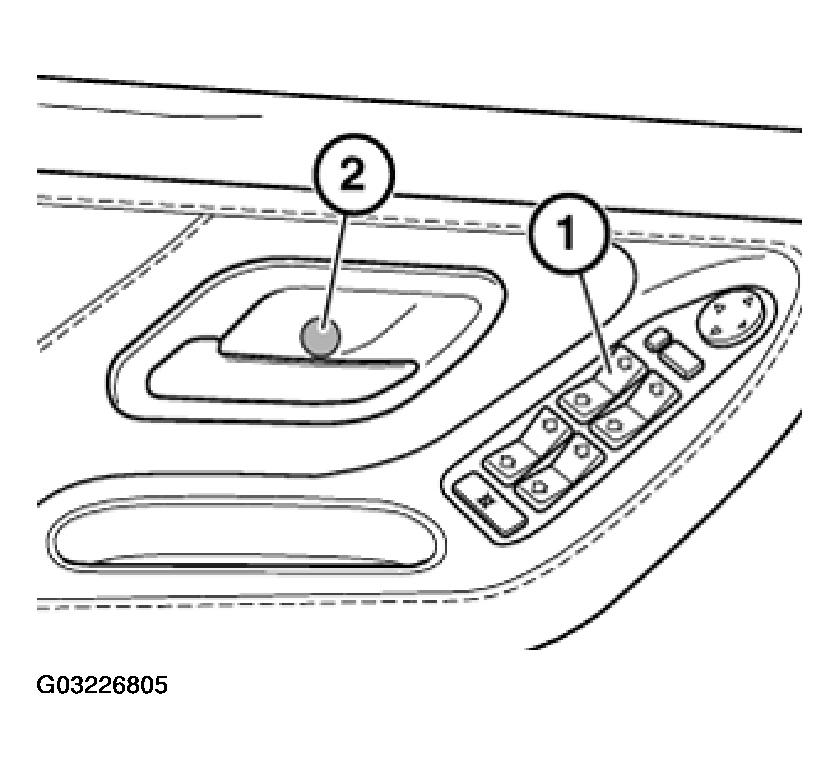

Fig 2: Removing Rocker Switch For Power Window

CAUTION: Dismantle screw for lock retainer (malfunction if actuating rod is bent).

Remove cap (1).

Lift out locking unit and pull button (2) upwards to remove.

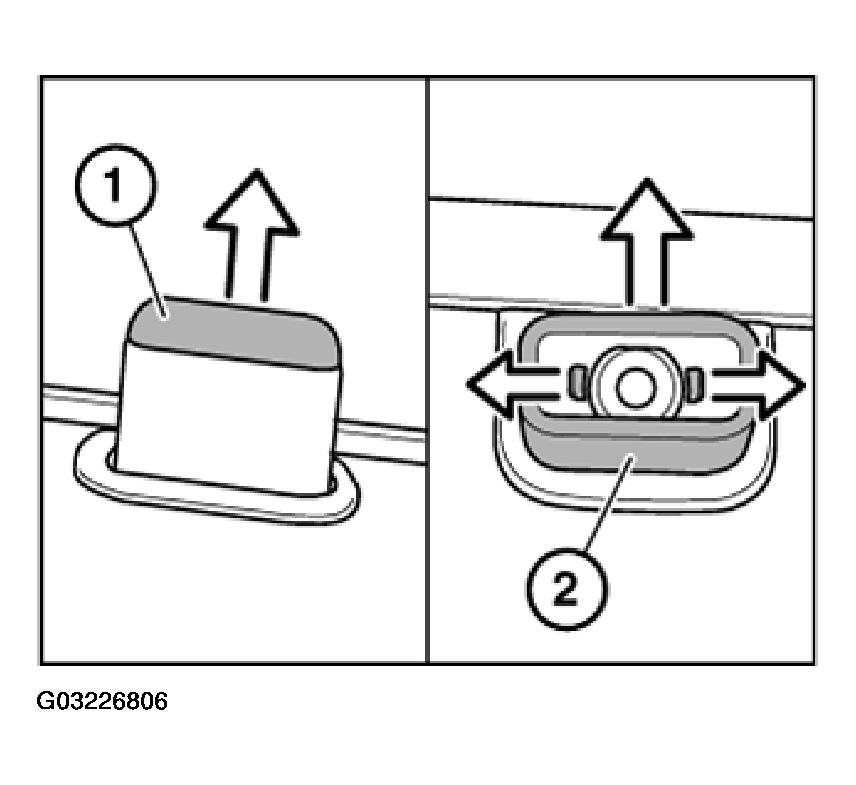

Fig 3: Removing Cap And Lifting Out Locking Unit

Installation:

Check gap (A) between cap (1) and guide (2).

(A) = 14.5 +/- 1 mm.

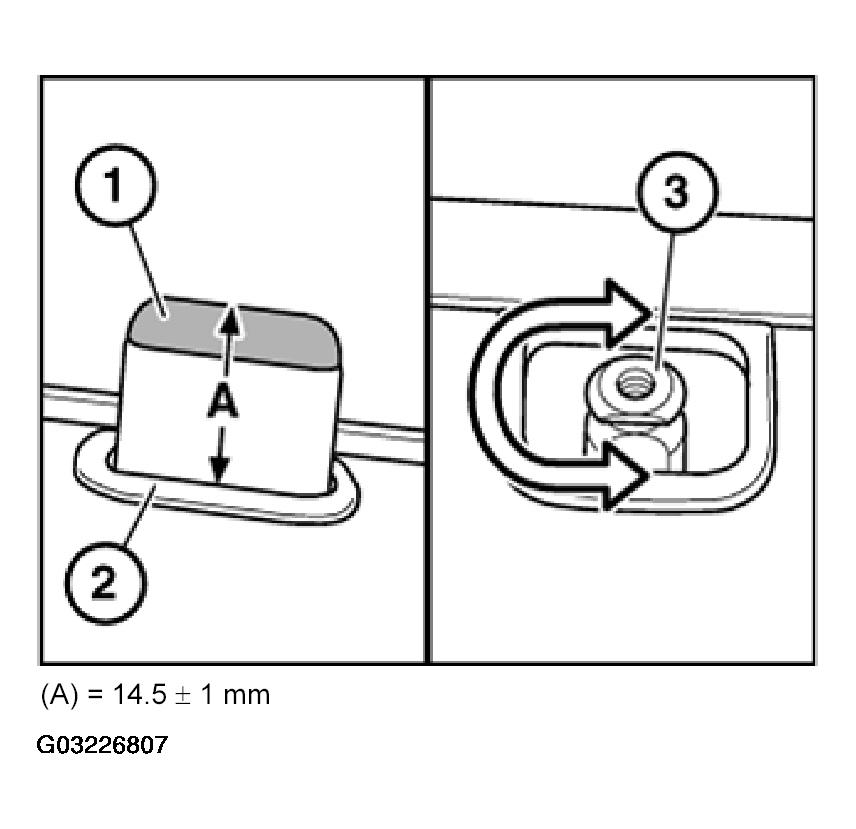

Fig 4: Checking Gap (A) Between Cap (1) And Guide (2)

If necessary, remove button and adjust sleeve (3).

Unclip door trim panel all around.

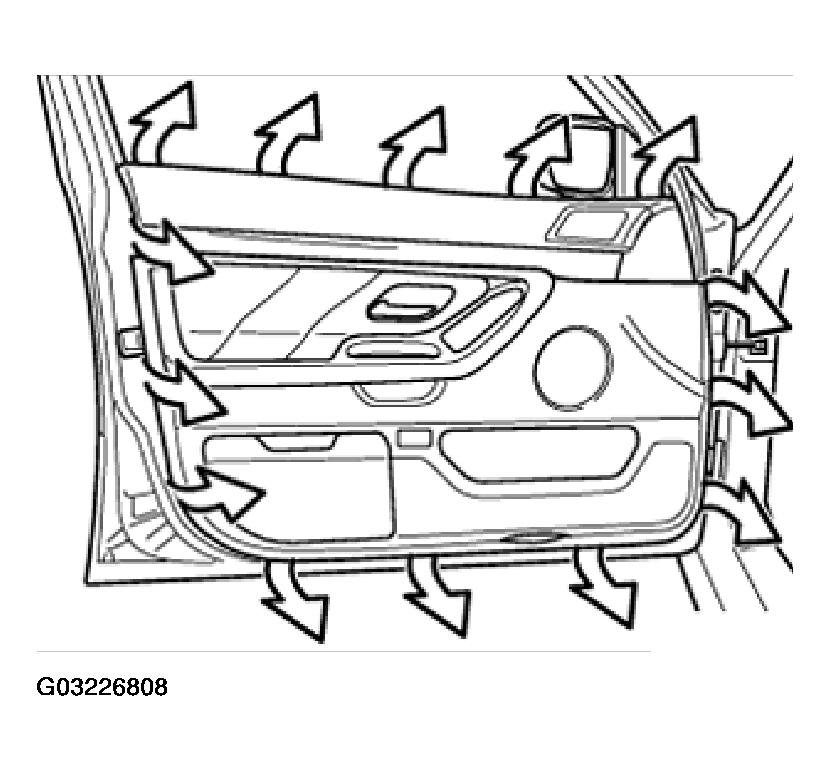

Fig 5: Uncliping Door Trim Panel

Pull door trim upwards out of door clip and slide door opener (1) through the door trim panel.

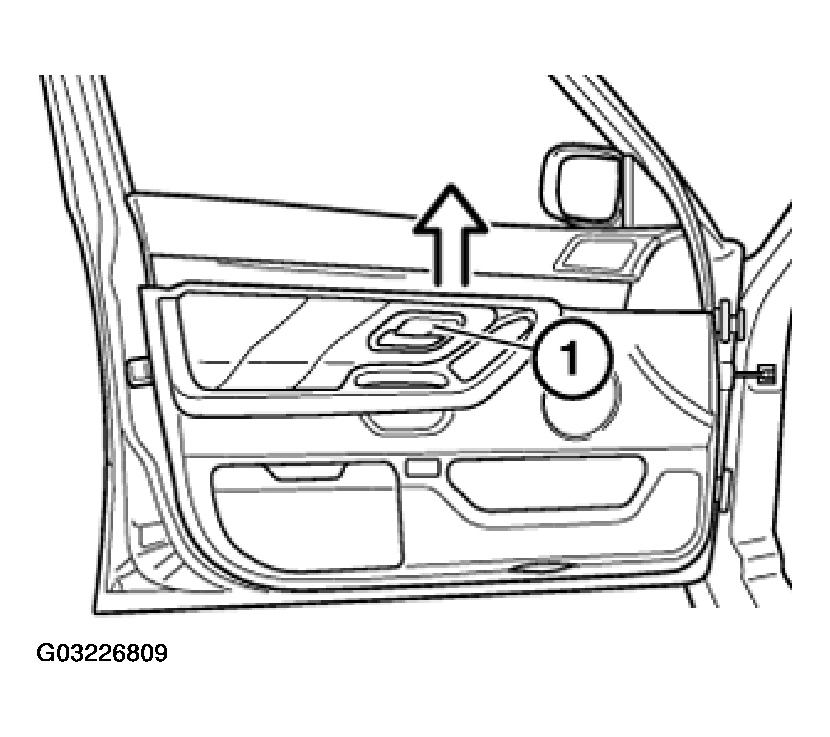

Fig 6: Pulling Door Trim Upwards Out Of Door Clip

Remove door clip.

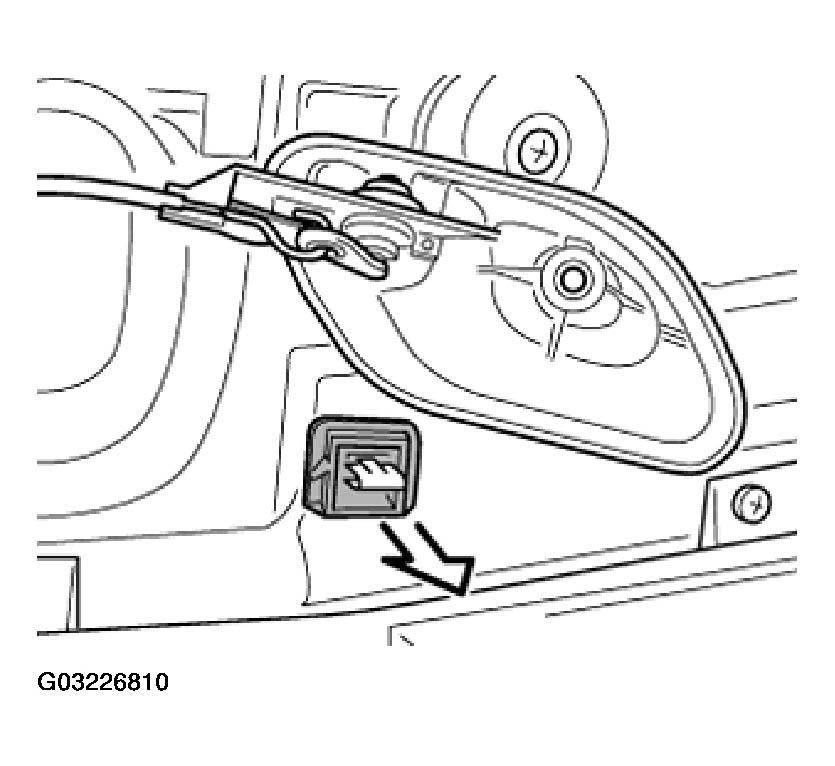

Fig 7: Removing Door Clip

Installation:

Install door clip in door trim.

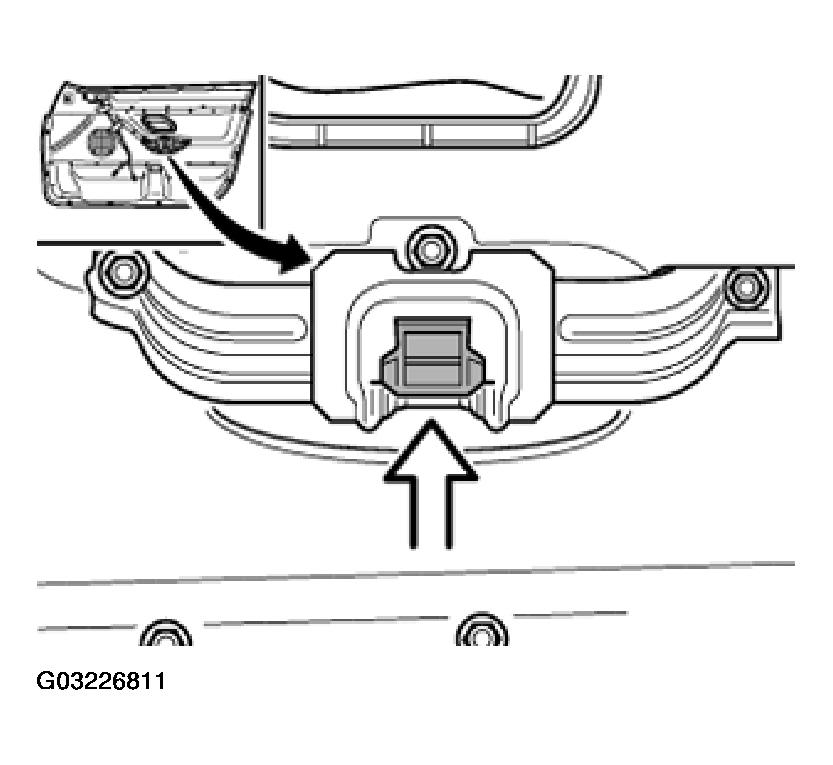

Fig 8: Installing Door Clip In Door Trim

Installation:

If necessary, replace damaged clips.

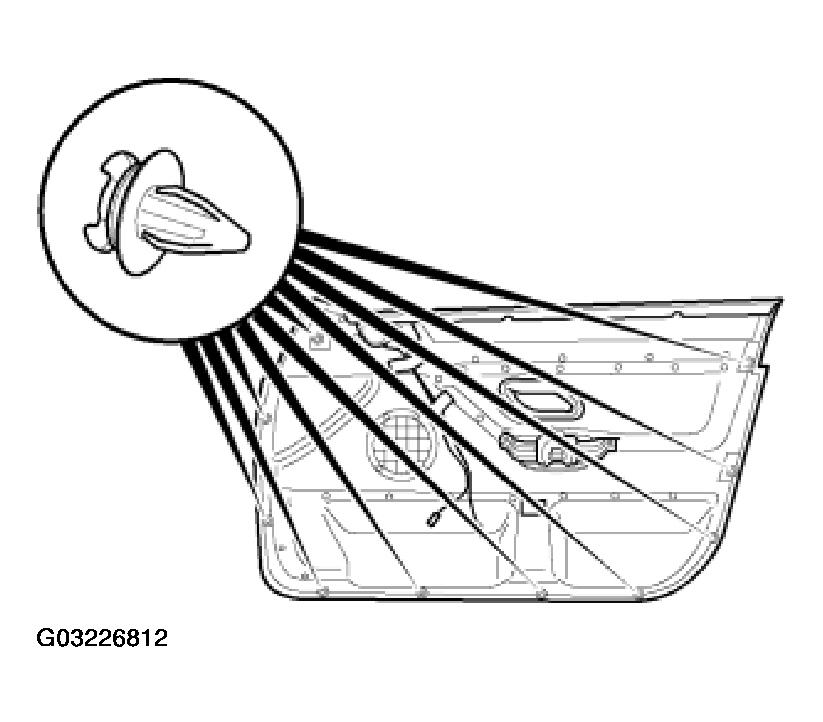

Fig 9: Identifying Clips

Installation:

Remove window cavity seal from inside front door (risk of damage), refer to 51 21 351 REPLACING WINDOW RECESS COVER ON LEFT OR RIGHT FRONT DOOR .
