Removal & Installation

  1. Remove wheel arch trim.
  2. Open pressure relief screw (1) on control valve. Catch escaping oil. See Figure .
  3. Disconnect wires. Unfasten screws (1) and remove pressure accumulator. Note position of washer (2), space bush (3) and grommet (4). See Fig 1 .
  4. To install, reverse removal procedure. Tighten screw (1) to 80 INCH lbs. (9 N.m). Tighten lines to specification. See TORQUE SPECIFICATIONS  .

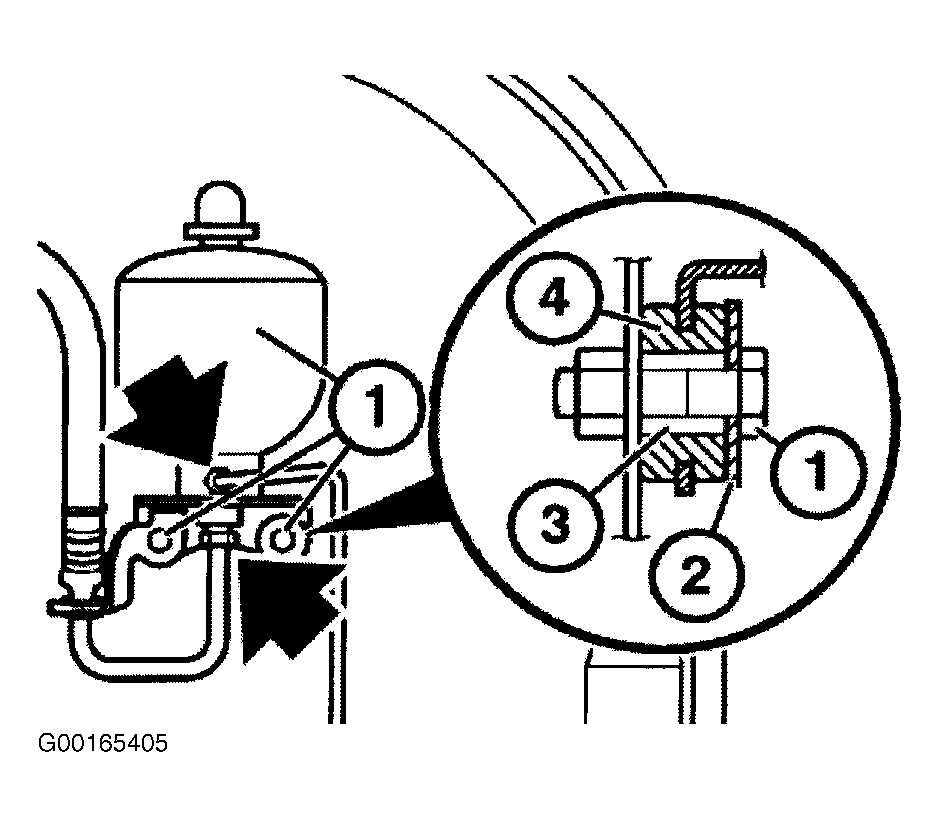

Fig 1: Identifying Pressure Accumulator Components
G00165405Courtesy of BMW OF NORTH AMERICA, INC.
