Minimum set: Mechanical tools
SPARK PLUG TOOL - GENERAL SPECIFICATION
| In conjunction with: | 12 1 200 |
| Note: | For releasing spark plugs as well as for tightening to torque limit |
| Engine | M40, M42, M43, M43TU, M44, M50, M52, M60, M62, M70, M73, N40, N42, N46, N73, S14, S38, S50B30, S50B32, W10, W11 |
| Storage location: | B13 |
| Order number: | 12 1 170 Spark plug tool |

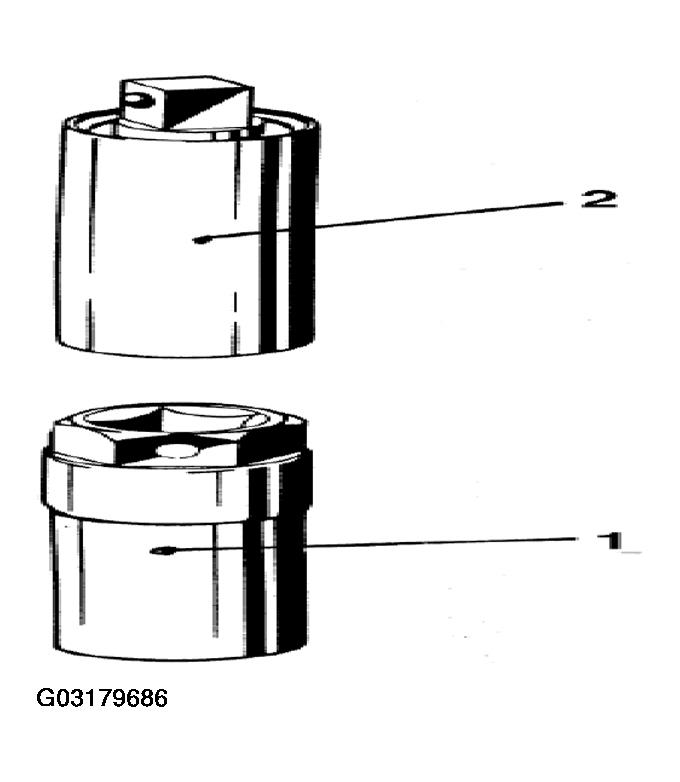

| Consisting of: | |
| 1 = 12 1 171 | Spark plug key WAF 16 mm |
| Note: S50, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, W10, W11, N40, N42, N73 | |
| In conjunction with: 12 1 172 (S50), 12 1 200 (M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, W10, W11, N73) | |
| 2 = 12 1 172 | Torque limiter 23 Nm +/- 3 Nm |
| Note: S14, S38, S50 | |
| In conjunction with: 12 1 171 (S50), 12 1 160 (S14, S38) | |
