Wheel Bearing: Installation

To install, reverse removal procedure. Press in wheel bearing using Guide Sleeve (33-4-036), Spindle (33-4-032) and Support Nut/Bearing (33-4-038) on brake shoe side or Disc (33-4-037) on drive flange side.
Press in rear axle shaft using Input/Output Flange Press (23-1-300), Adapter (33-4-080) and Sleeve (33-4-020). Tighten collar nut while using Flange Holder (33-4-000). Drive in lock plate using Driver Handle (00-5-000) and Driver (33-4-060).

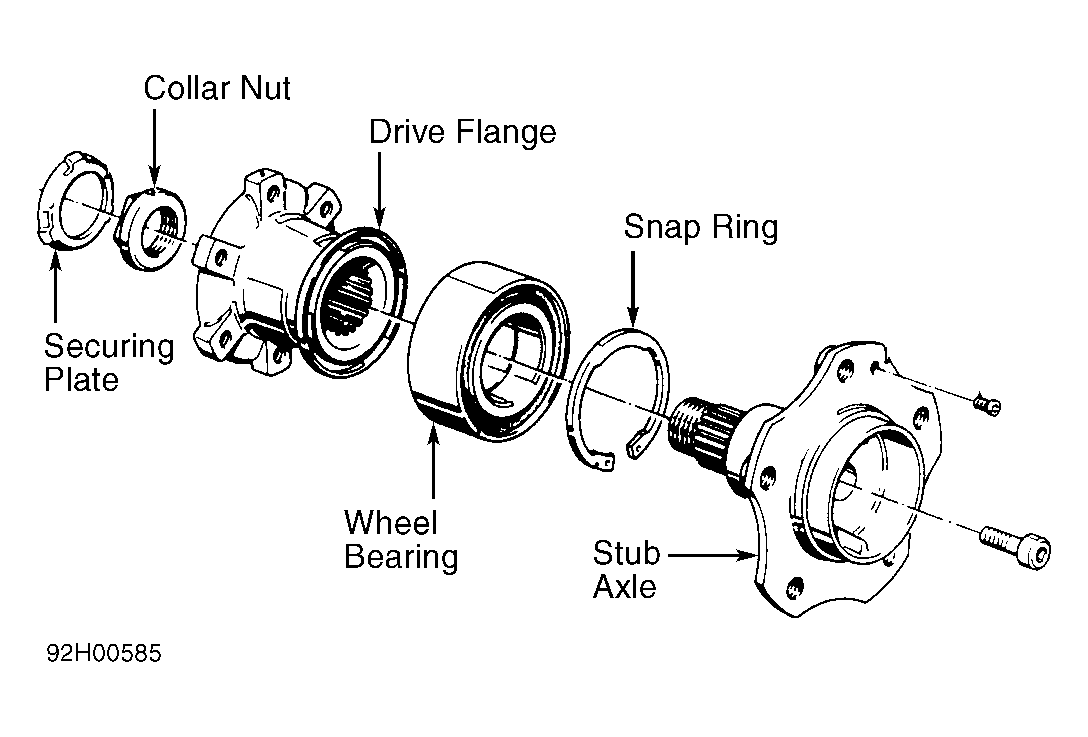

Fig 1: Exploded View Of Rear Wheel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
