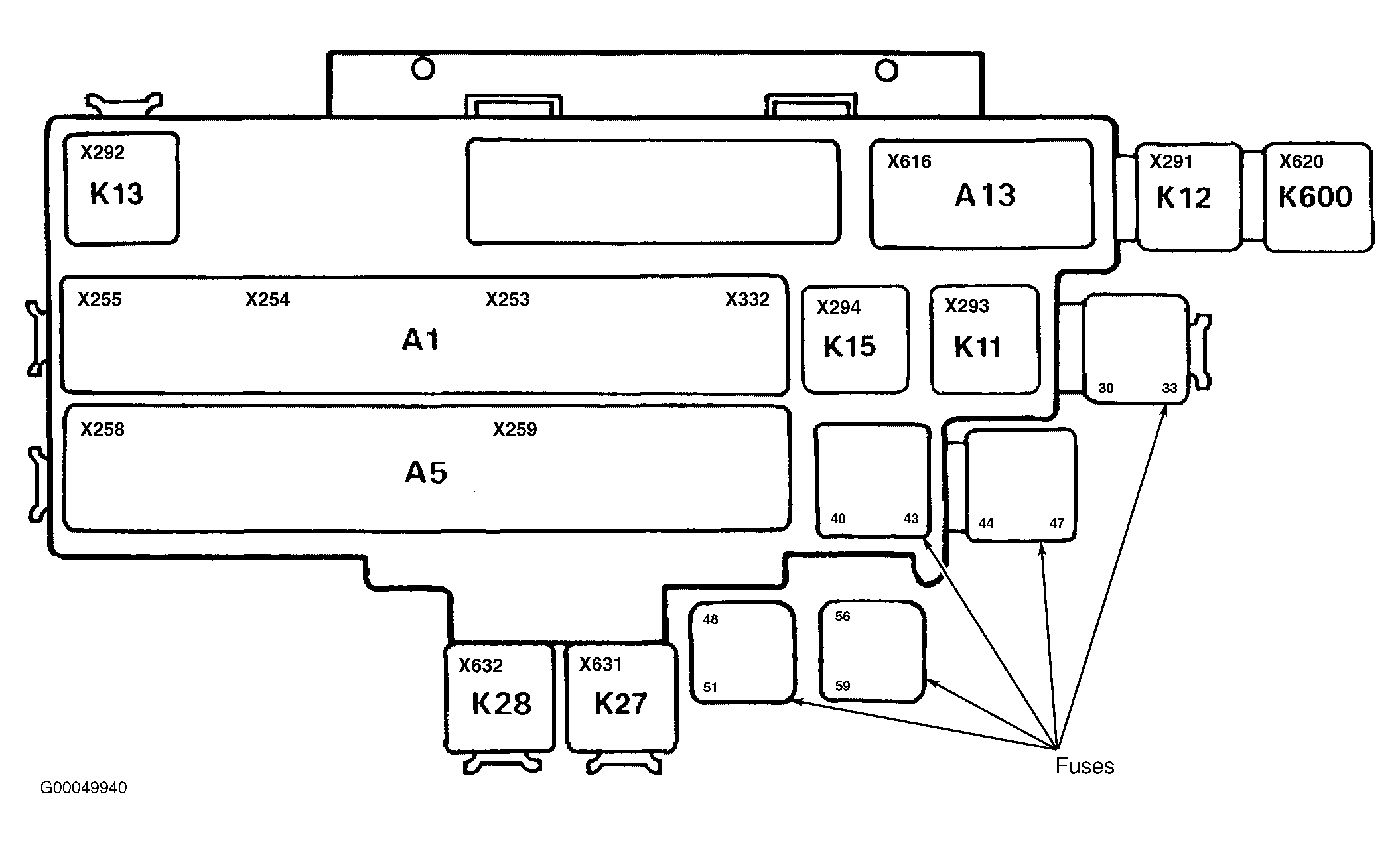

Rear Fuse Panel Identification (1992-94)
Courtesy of BMW OF NORTH AMERICA, INC.
- 30 - 7.5 Amp
Door Lock Heating, Central Locking System, Power Windows, Memory Seat, Sunroof, Central Body Electronics, Interior Lights
- 31 - 7.5 Amp
Central Locking System, Power Windows, Sunroof
- 32 - Blank
- 33 - 15 Amp
Instrument Cluster/Check Control, License/Trunk Lights, Interior Lights, Interior Accessory Lights, Anti-Theft
- 34 - 39 Blank
- 40 - 30 Amp
Power Seats, Heated Seats, Automatic Headrest
- 41 - 30 Amp
Radio/CD Player, Anti-Theft
- 42 - 30 Amp
Memory Steering Column, Memory Mirrors, Memory Seat
- 43 - 30 Amp
Power Seats
- 44 - 30 Amp
Memory Mirrors, Power Windows, Memory Seat, Sunroof, Central Body Electronics, Windshield Wipers, Headlight/Foglight Washer, Brake Lights
- 45 - 30 Amp
Electronic Damper Control
- 46 - 30 Amp
Rear Window Defogger/Antenna
- 47 - Blank
Central Body Electronics
- 48 - 15 Amp
Power Steering Column
- 49 - 54 Blank
