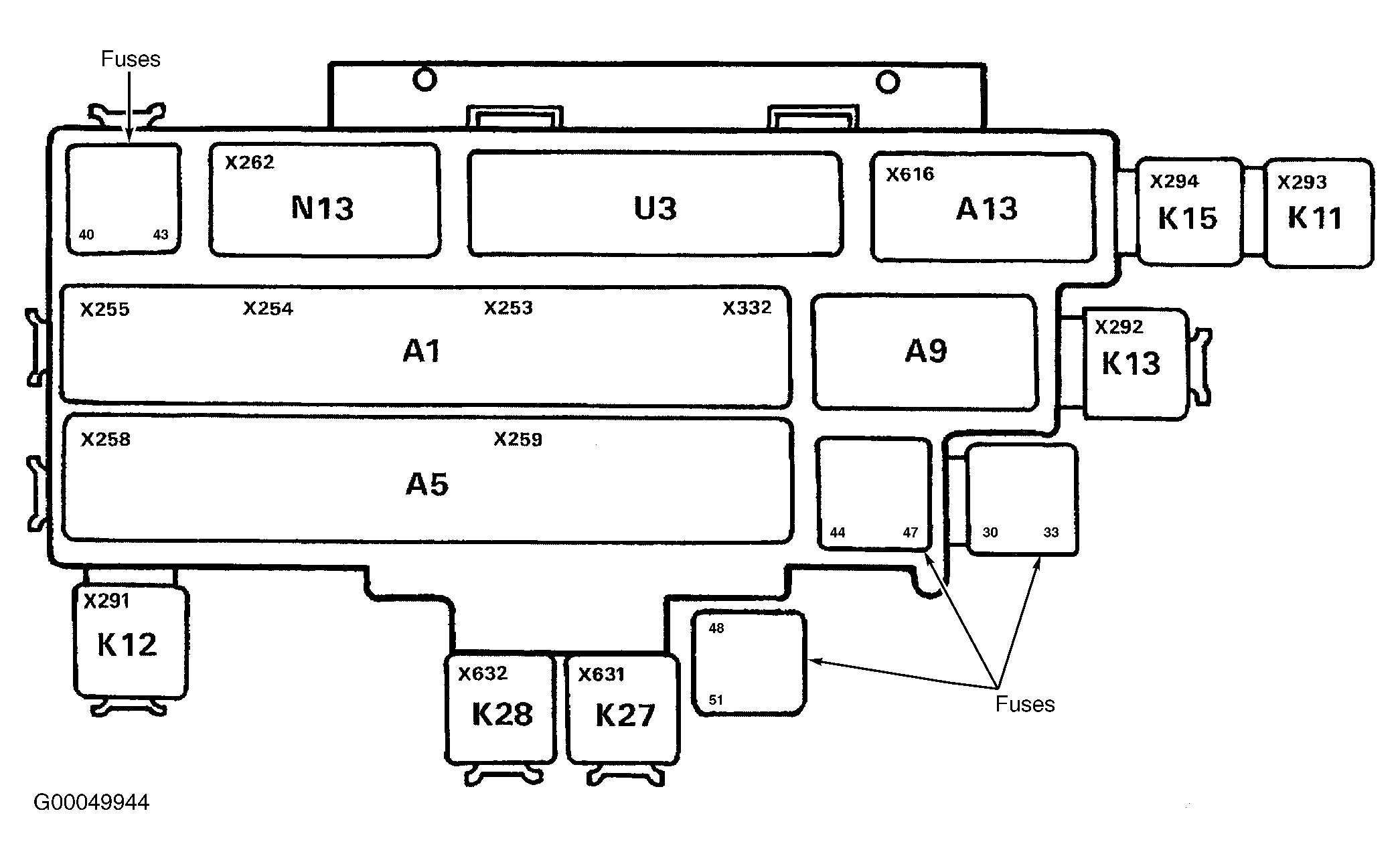

Rear Fuse Panel Identification (1989-91)
Courtesy of BMW OF NORTH AMERICA, INC.
- 30 - 7.5 Amp
Central Body Electronics, Central Locking System, Door Lock Heating, Interior Lights, Memory Mirrors, Memory Seat, Power Windows, Sunroof
- 31 - 7.5 Amp
Anti Theft, Cellular Telephone, Central Locking System, Infrared Locking system, Power Windows, Sunroof
- 33 - 15 Amp
Glove Box Light, Cigarette Lighter, Ashtray Light, Flashlight Charging Plug, Instrument Cluster/Check Control, Interior Lights, License/Trunk Lights
- 34 - 15 Amp
Not Used
- 40 - 30 Amp
Automatic Rear Headrest, Power Seats
- 41 - 30 Amp
Radio/CD Player
- 42 - 30 Amp
Memory Mirrors, Memory Seats
- 43 - 30 Amp
Power Seats
- 44 - 30 Amp
Central Body Electronics, Headlight & Fog Light Washers, Interior Lights, Memory Mirrors, Memory Seat, Power Windows, Sunroof, Windshield Washer, Windshield Wipers, Windshield Wiper Pressure Control
- 45 - 30 Amp
Accessory Connector (Not Used)
- 46 - 30 Amp
Rear Window Defogger
- 47 - 30 Amp
Central Body Electronics
- 50 - 30 Amp
Accessory Connector (Not Used)
