Front Fuse Panel Identification (1992-94)

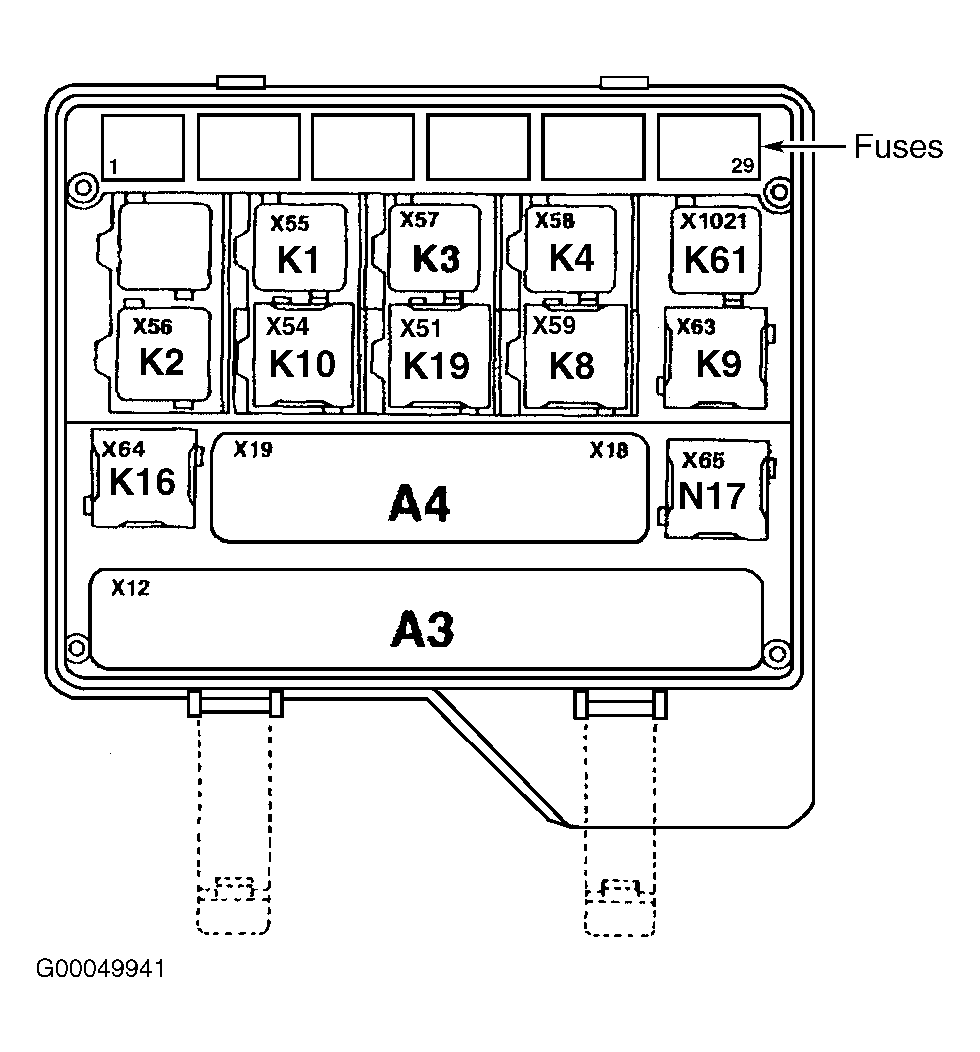

Fig 1: Front Fuse Panel Identification (1992-94)

Courtesy of BMW OF NORTH AMERICA, INC.

• 1 - 15 Amp  Throttle Control, Transmission Control, Brake Lining Warning, ABS, Traction Control, Instrument Cluster/Check Control, Lamp Monitor, Park/Tail/Marker/Underhood Lights, Brake Lights, Cruise Control
• 2 - 7.5 Amp  Light Switch, Lamp Monitor, Turn Hazard Lights, Headlight/Foglights, Interior Lights
• 3 - 7.5 Amp  Headlight/Foglight Washer, Light Switch, Lamp Monitor, Turn Hazard Lights, Headlight/Foglights
• 4 - 7.5 Amp  Light Switch, Lamp Monitor, Park/Tail/Marker/Underhood Lights, License/Trunk Lights, Interior Lights
• 5 - 10 Amp  Headlight/Foglight Washer, Lamp Monitor, Headlight/Foglights, Park/Tail/Marker/Underhood Lights, License/Trunk Lights, Interior Lights, Interior Accessories
• 6 - 15 Amp  Turn/Hazard Warning Flashers
• 7 - 15 Amp  Headlight/Foglights, Lamp Monitor
• 8 - Blank
• 9 - 15 Amp  Horn, Windshield Washer Jet Heaters, Climate Control, Auxiliary Fan
• 10 - 7.5 Amp  Headlights/Foglights
• 11 - 7.5 Amp  Headlights/Foglights
• 12 - 15 Amp  Electronic Damper Control, Electric Mirror, Mirror Memory, Instrument Cluster/Check Control, Back Up Lights
• 13 - 7.5 Amp  Lamp Monitor, Headlight/Foglights, Turn/Hazard Lights
• 14 - 7.5 Amp  Lamp Monitor, Headlights/Foglights
• 15 - 7.5 Amp  Windshield Wipers, Windshield Washers, Instrument Cluster, Interior Accessories, On Board Computer
• 16 - 30 Amp  Power Steering Column Adjust, Mirror Memory, Memory Seat, Heated Seats
• 17 - 7.5 Amp  Charging System, Start, Engine Control System, Throttle Control, Transmission Control, Brake Lining Warning, ABS Traction Control, Mirror Memory, Door Lock Heating, Power Windows, Seat Memory, Sunroof, Central Body Electronics, Headlight/Foglight Washer, Instrument Cluster/Check Control, Interior Lights, Cruise Control, On-Board Computer
• 18 - 15 Amp  Power Steering Column Adjust, Mirror Memory, Seat Memory, Interior Lights, Interior Accessories, Radio/CD Player, Cellular Telephone, Anti-Theft System
• 19 - 30 Amp  Park Ventilation, Climate Control
• 20 - 7.5 Amp  Throttle Control, Brake Lining Warning, Central Locking System, Power Windows, Sunroof, Instrument Cluster/Check Control, Park/Tail/Marker/Underhood Lights, Back Up Lights, Park Ventilation, Climate Control
• 21 - 7.5 Amp  Park Ventilation, Rear Window Defogger/Antenna, Climate Control
• 22 - 30 Amp  Headlight/Foglights Wash System
• 23 - 15 Amp  Engine Control System
• 24 - N/A  Engine Control System
• 25 - 30 Amp  Auxiliary Fan
• 26 - 30 Amp  Interior Accessories
• 27 - N/A  Power Seats, Heated Seats, Automatic Rear Headrests
• 28 - 15 Amp  Starting System, Engine Control System, Power Assist Steering
• 29 - 7.5 Amp  Automatic Stability Control, Power Seats, Heated Seats, Automatic Rear Headrests, Windshield Washer Jet Heaters, Instrument Cluster/Check Control, Climate Control, Auxiliary Fan
