Fuses & Circuit Breakers - E23 & E32
>>
Fuse And Relay Location
>>
Auxiliary Relay Box (1989-94)
>>
750iL
Auxiliary Relay Box (1989-94): 750iL
K210
- Fuel Pump Relay No. 1
K211
- Fuel Pump Relay No. 2
K212
- Main Relay No. 1
K213
- Main Relay No. 2
K214
- Oxygen Sensor Relay

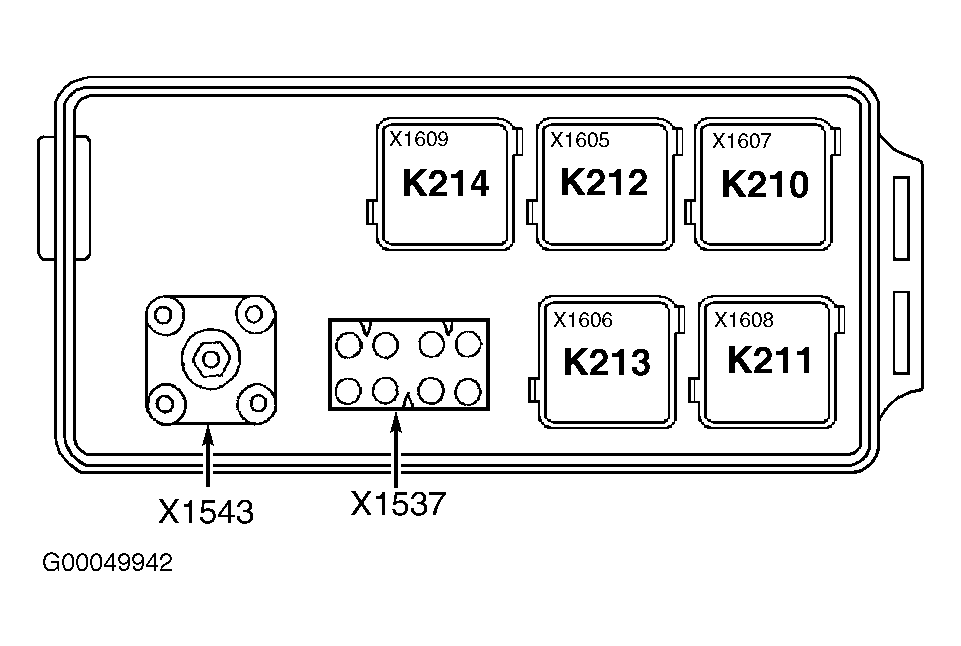

Fig 1: Auxiliary Relay Box (1989-94 750iL)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
