Instrument Cluster

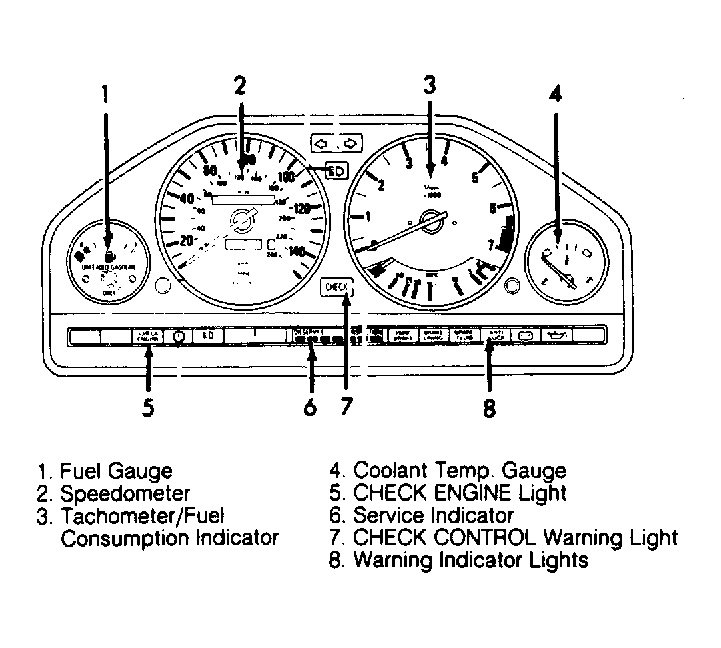

Instrument cluster includes speedometer, tachometer, fuel gauge and temperature gauge. See Fig 1 . Active check control panel is located at bottom of instrument cluster (above mirror on 318i and 318is). Gauges use variable resistance sending units. A voltage limiter is not used.
