ZKE Headlight Washer (SRA)

Fig 1: Headlight Washer (1 Of 3)
G00053381Courtesy of BMW OF NORTH AMERICA, INC.

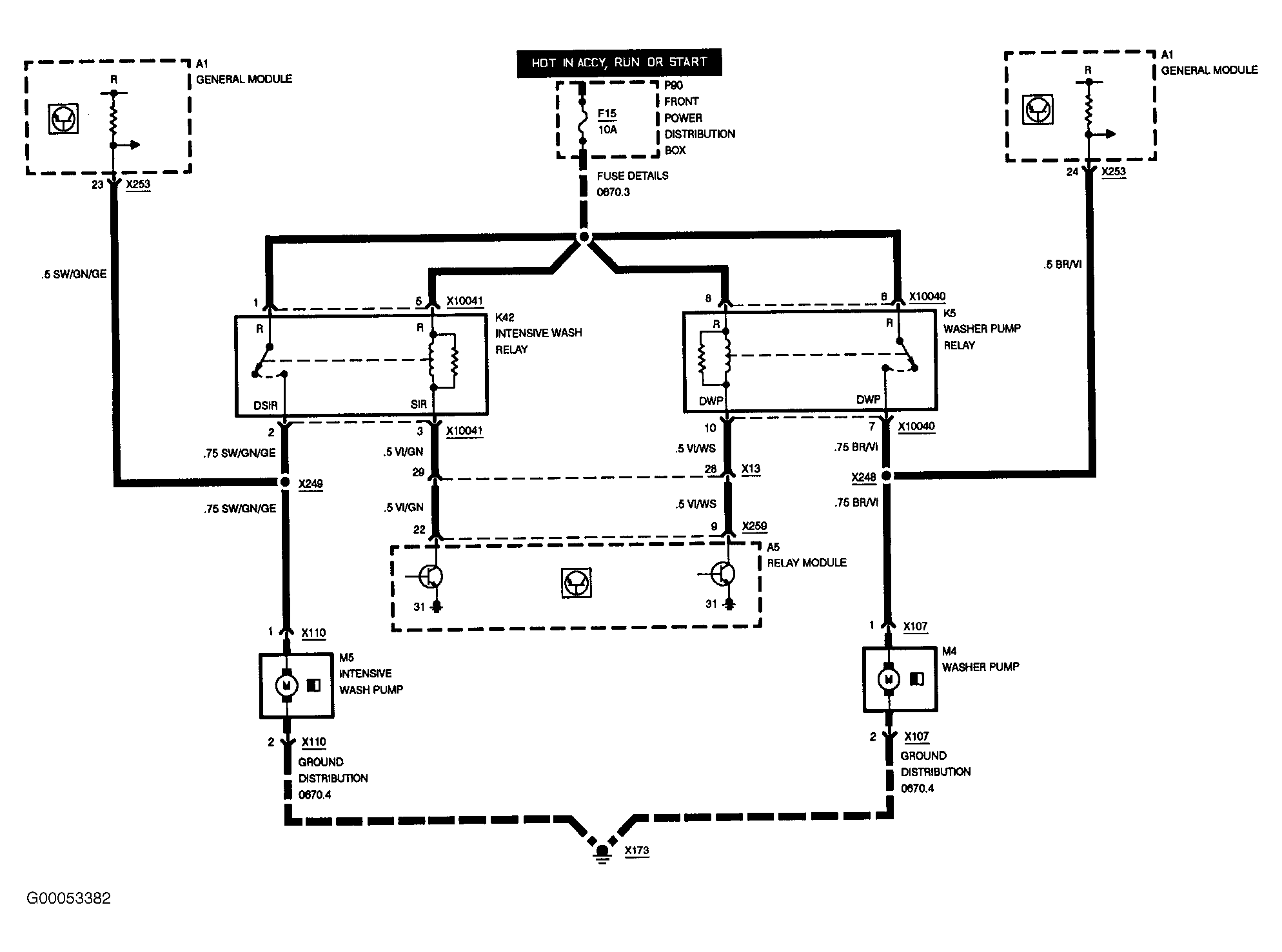

Fig 2: Headlight Washer (2 Of 3)
G00053382Courtesy of BMW OF NORTH AMERICA, INC.

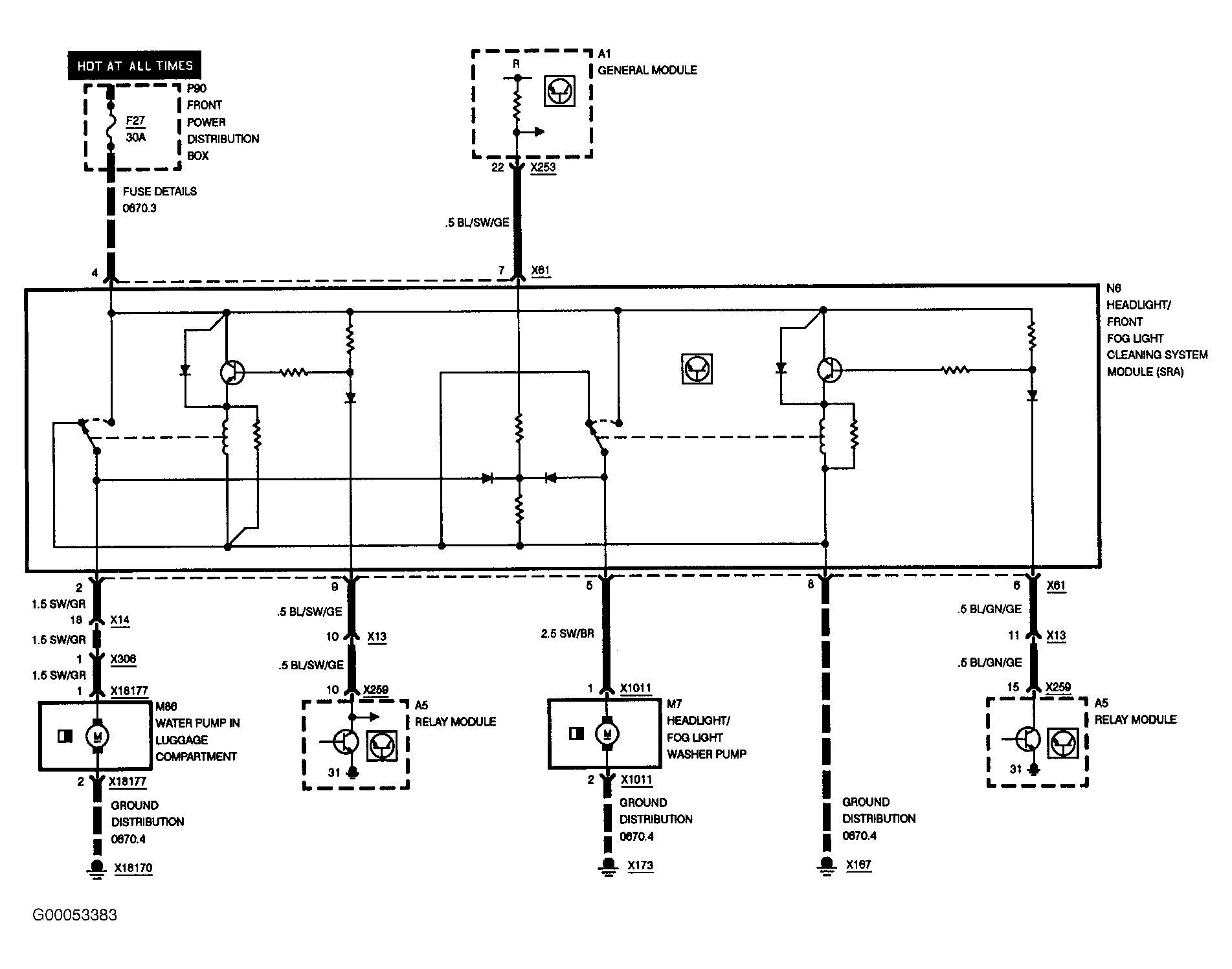

Fig 3: Headlight Washer - Output Details (3 Of 3)
G00053383Courtesy of BMW OF NORTH AMERICA, INC.
