ZKE Door Lock Heating (TSH)

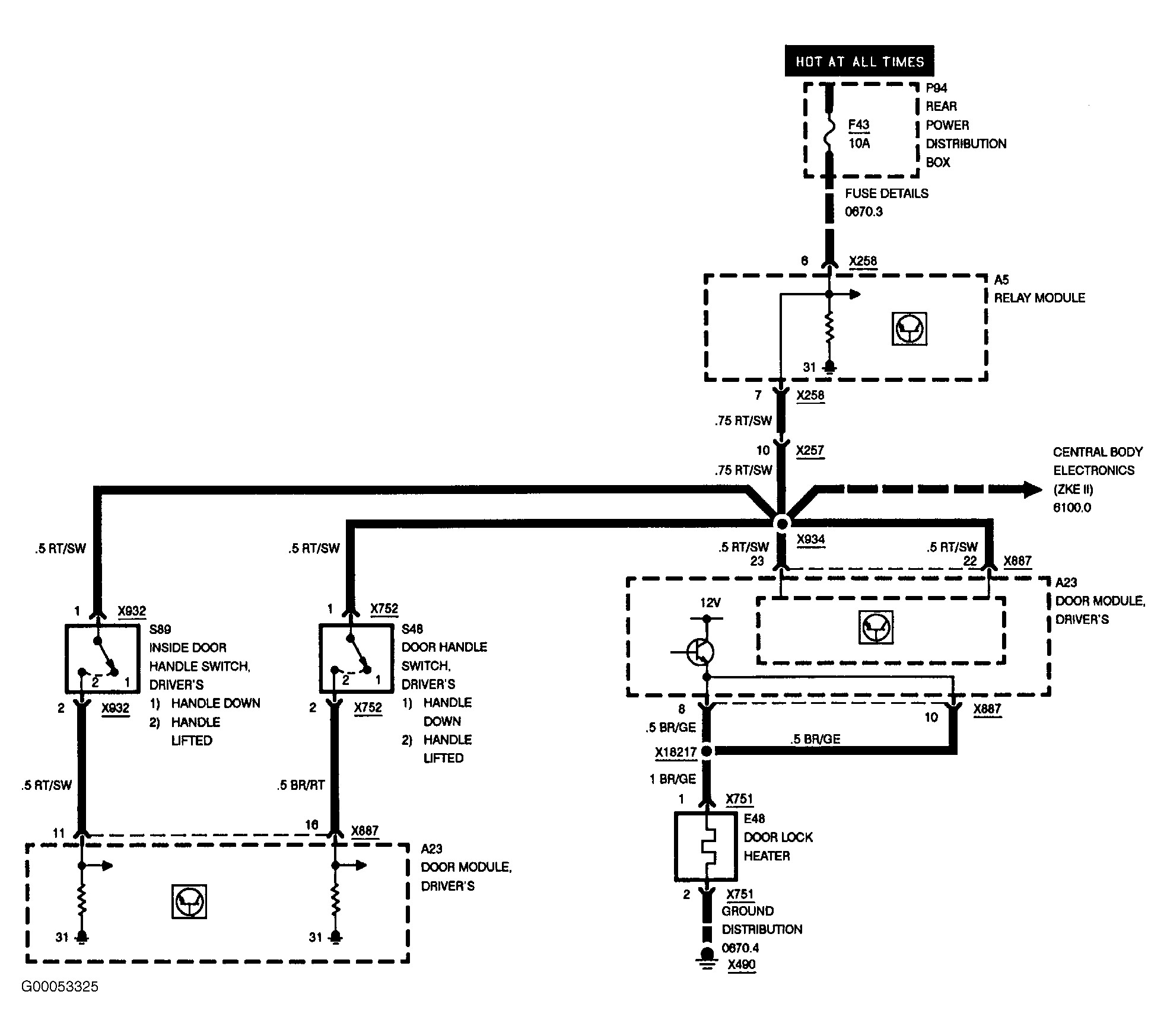

Fig 1: ZKE Door Lock Heating (TSH)

G00053325

Courtesy of BMW OF NORTH AMERICA, INC.
