ZKE Central Locking (ZV): Outputs

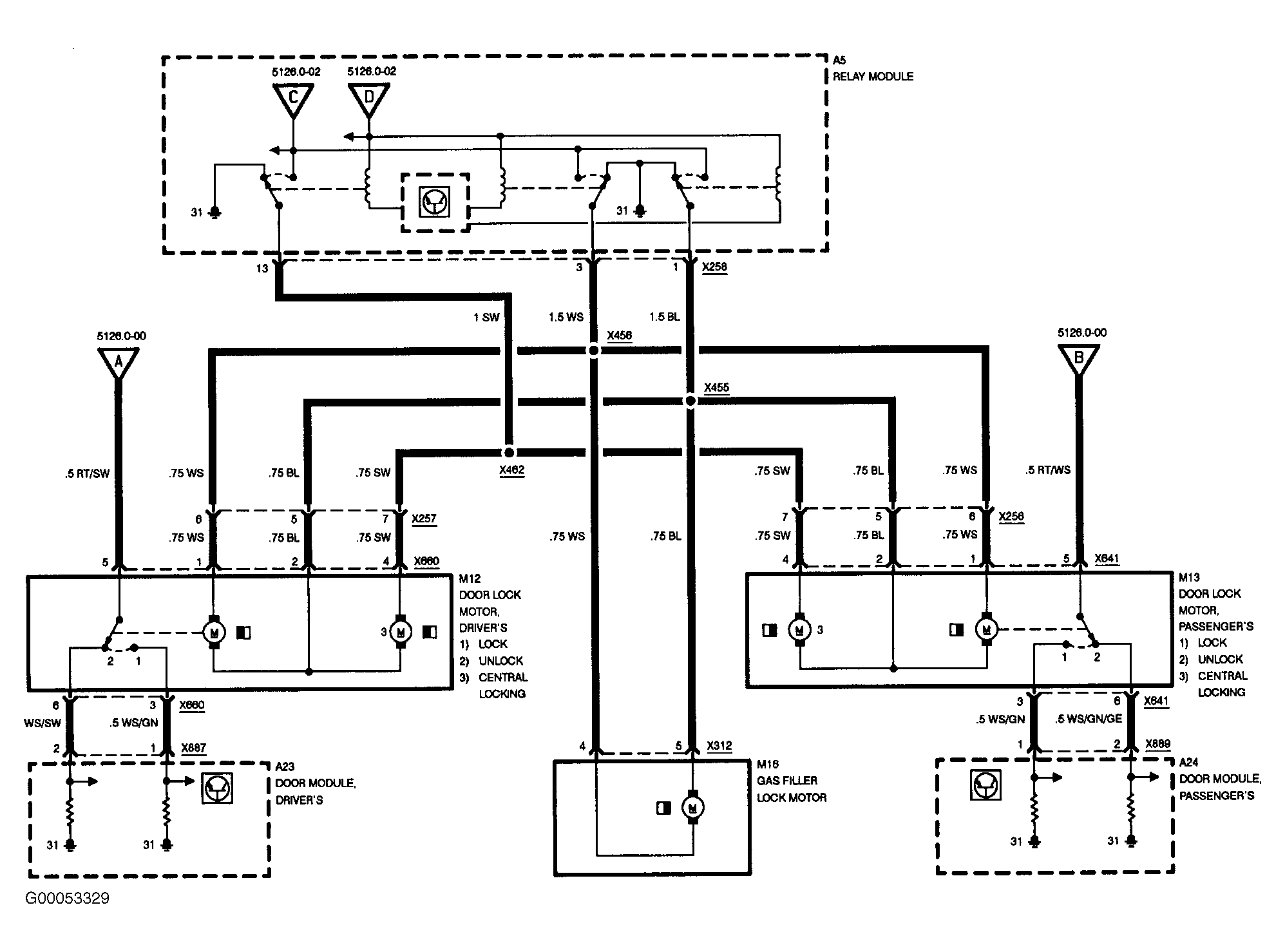

Fig 1: ZKE Central Locking Outputs

G00053329

Courtesy of BMW OF NORTH AMERICA, INC.
