ZKE Central Locking (ZV): Inputs

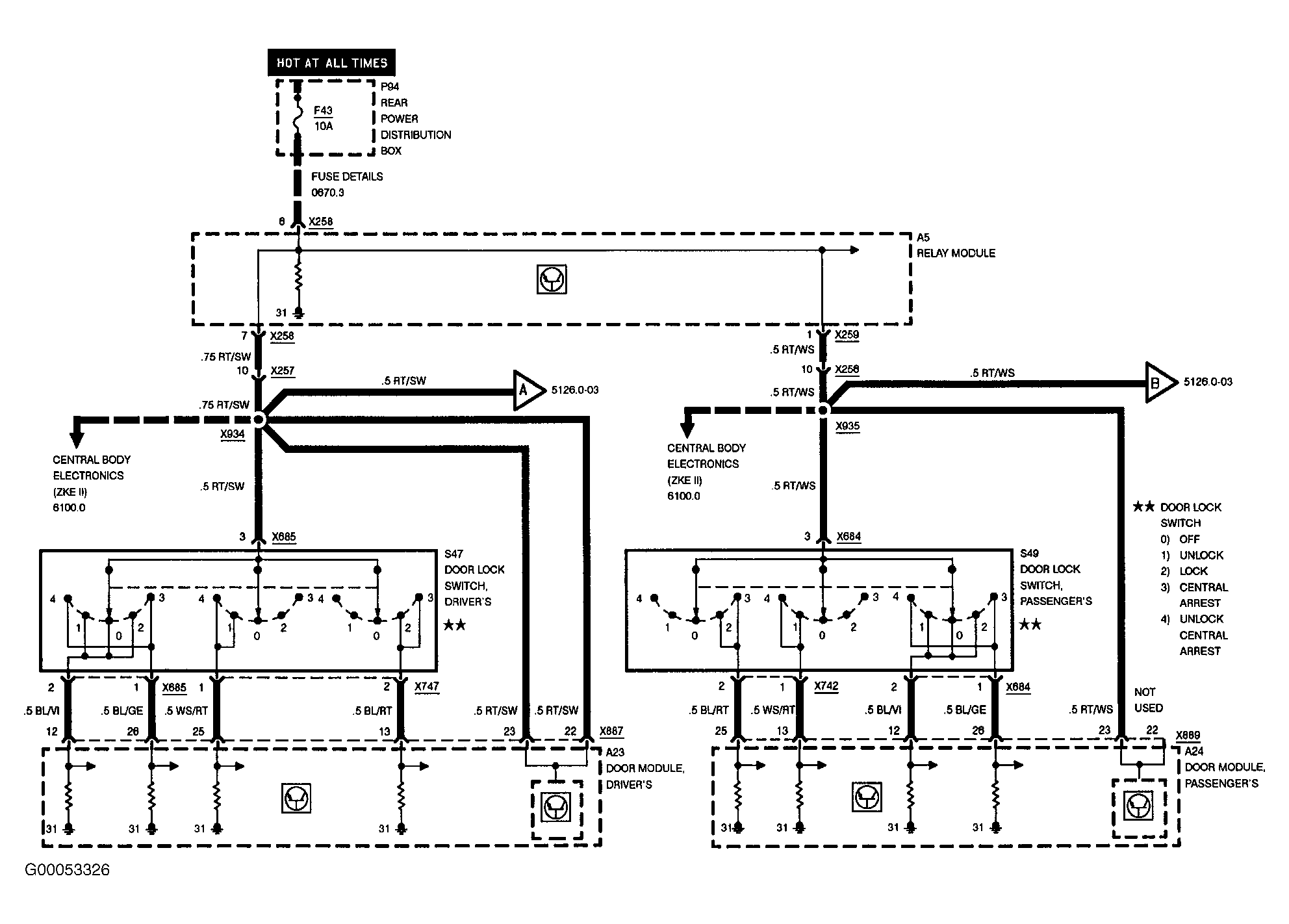

Fig 1: ZKE Central Locking Inputs (1 Of 3)
G00053326Courtesy of BMW OF NORTH AMERICA, INC.

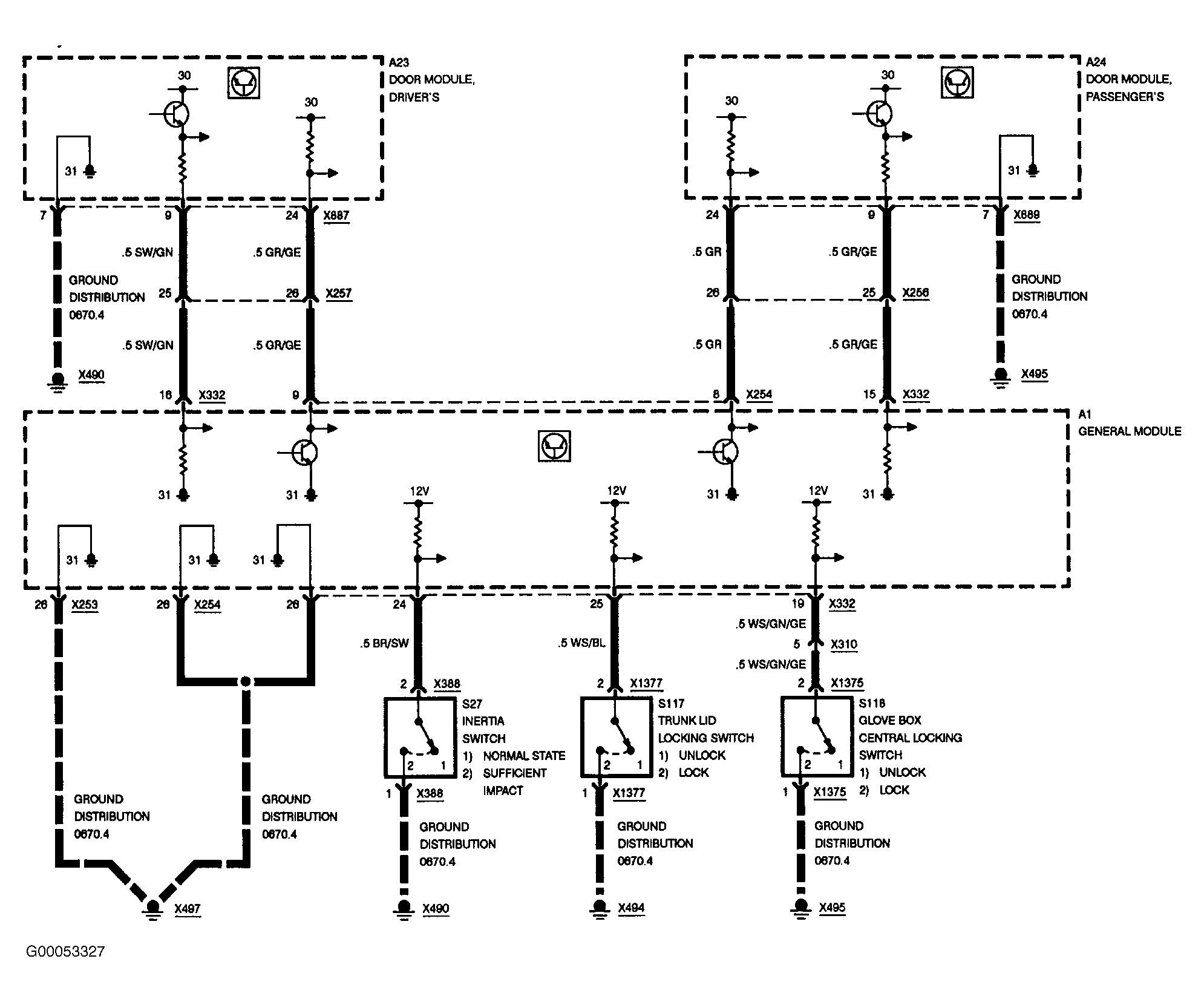

Fig 2: ZKE Central Locking Inputs (2 Of 3)
G00053327Courtesy of BMW OF NORTH AMERICA, INC.

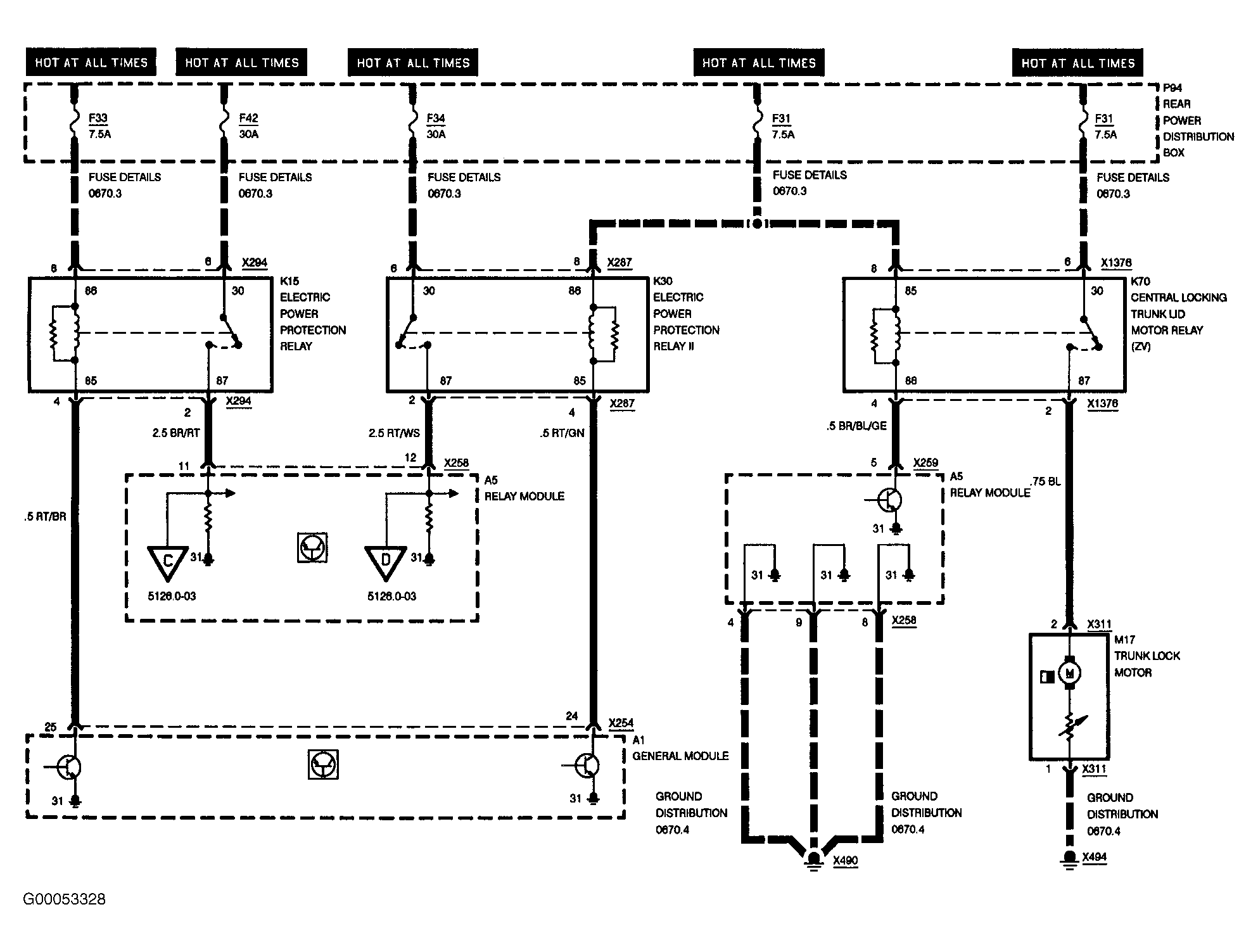

Fig 3: ZKE Central Locking Inputs (3 Of 3)
G00053328Courtesy of BMW OF NORTH AMERICA, INC.
