Wiper/Washer Control (ZKE)

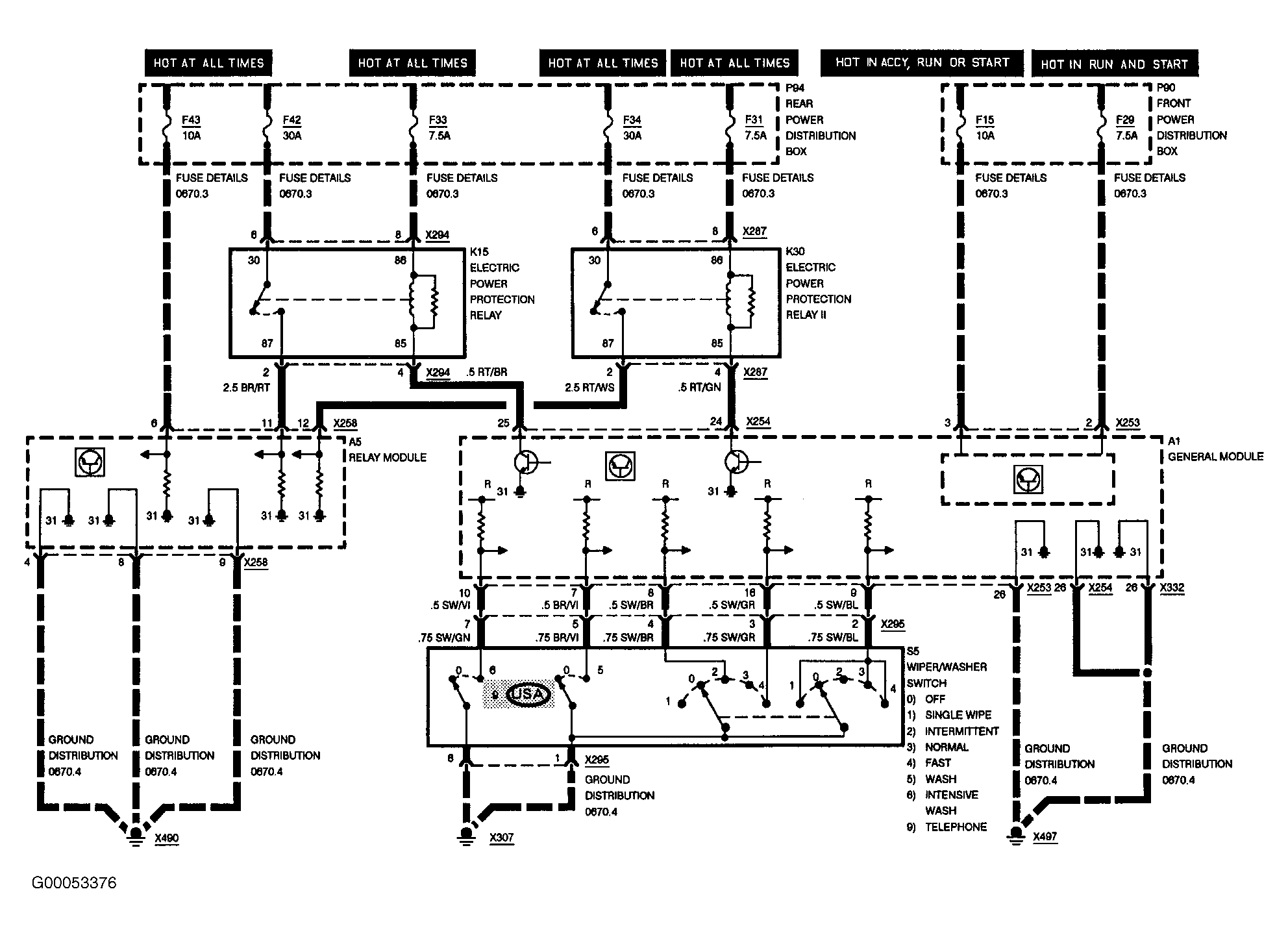

Fig 1: Wiper/Washer Control (1 Of 3)
G00053376Courtesy of BMW OF NORTH AMERICA, INC.

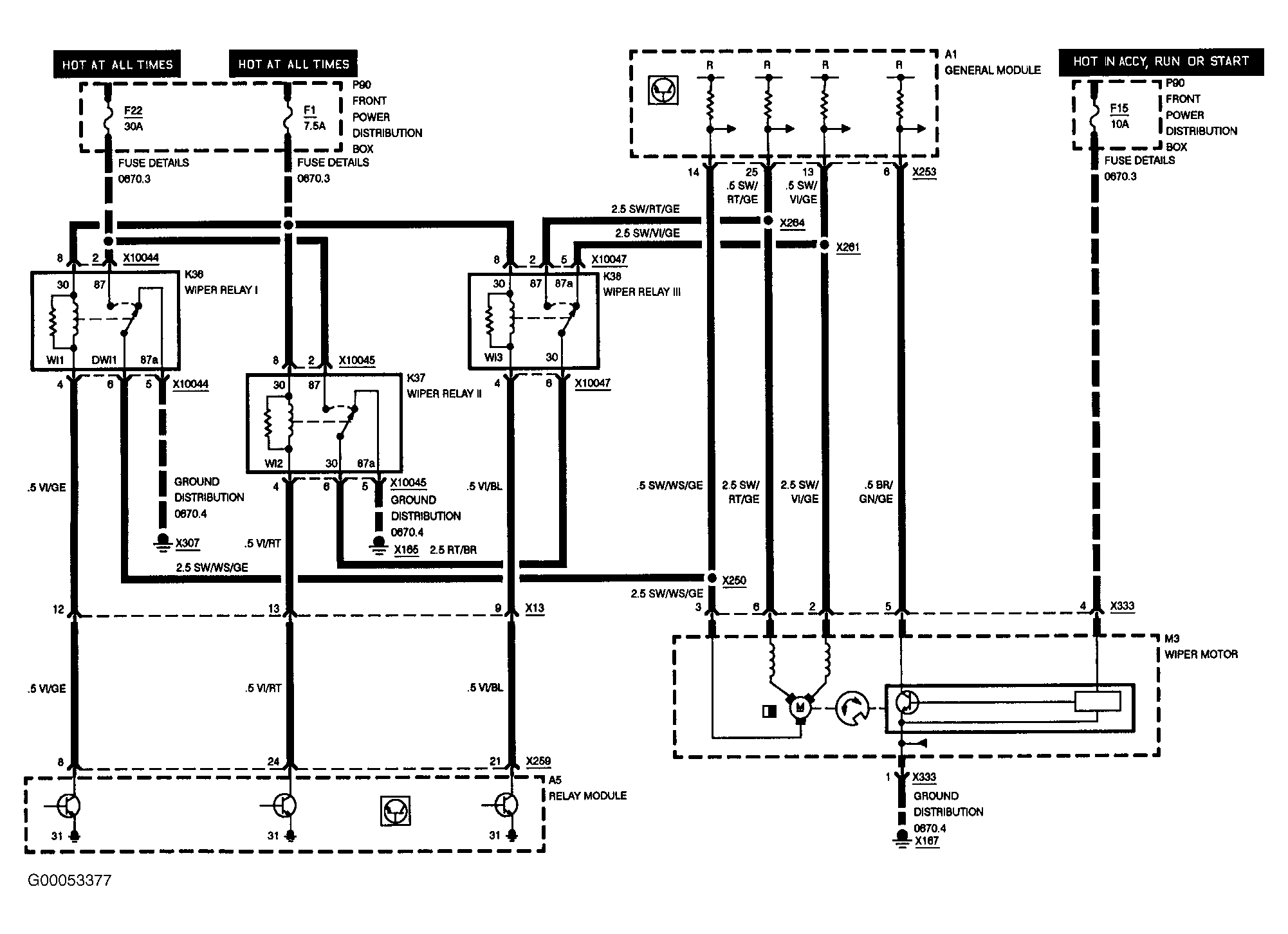

Fig 2: Wiper/Washer Control (2 Of 3)
G00053377Courtesy of BMW OF NORTH AMERICA, INC.

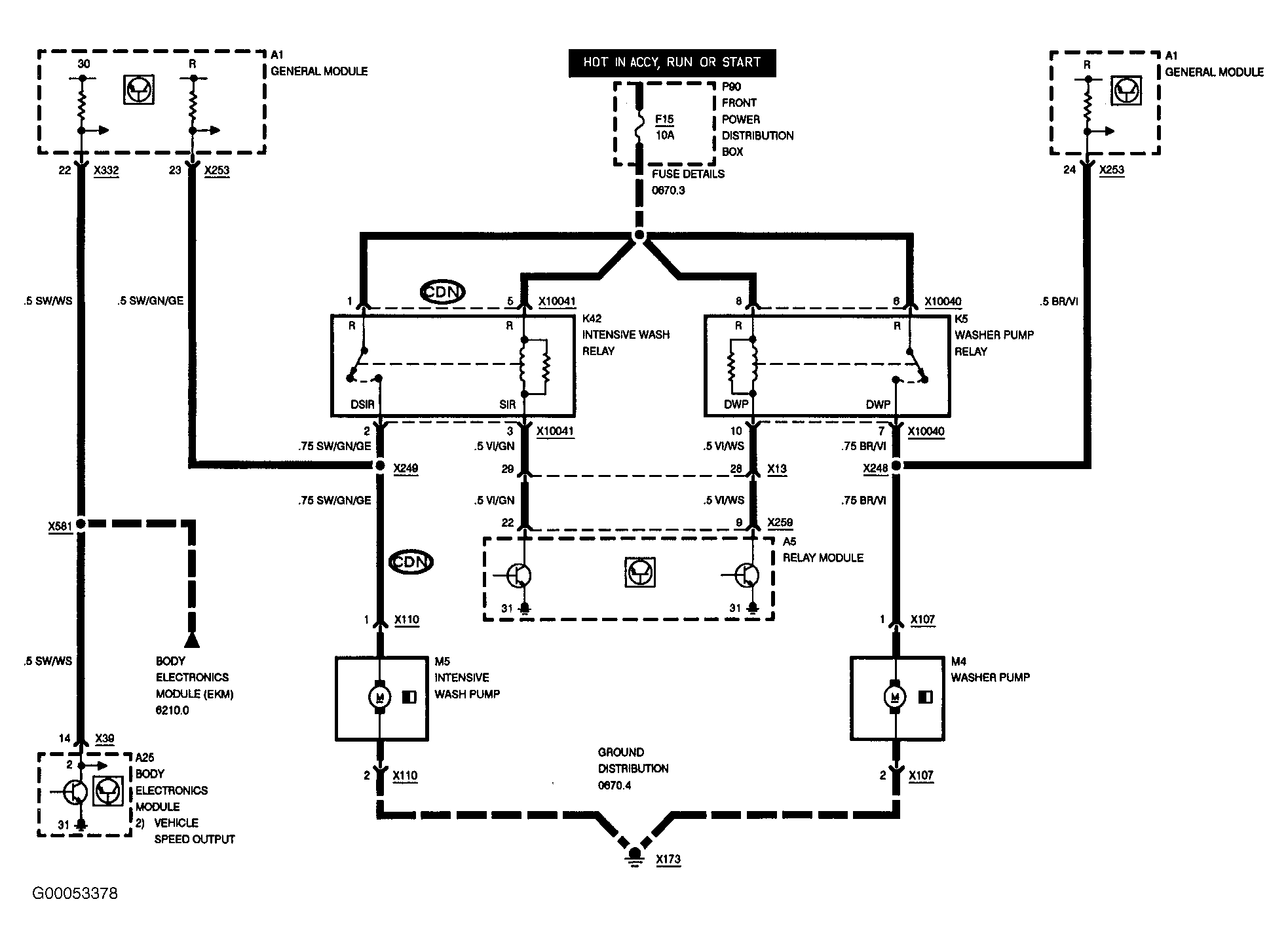

Fig 3: Wiper/Washer Control (3 Of 3)
G00053378Courtesy of BMW OF NORTH AMERICA, INC.
