Windshield Washer Jet Heaters

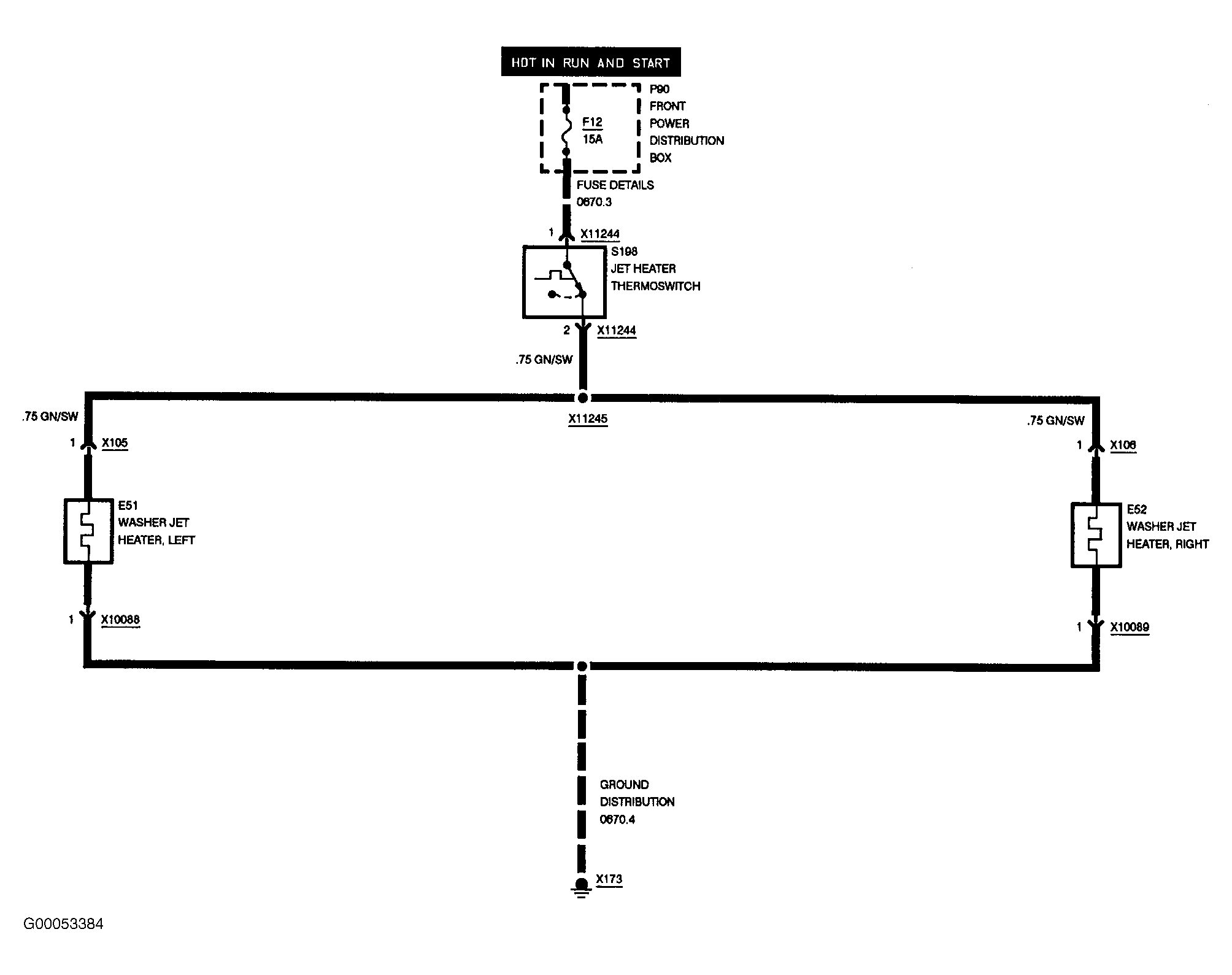

Fig 1: Windshield Washer Jet Heaters

G00053384

Courtesy of BMW OF NORTH AMERICA, INC.
