Supplemental Restraint System (Airbag)

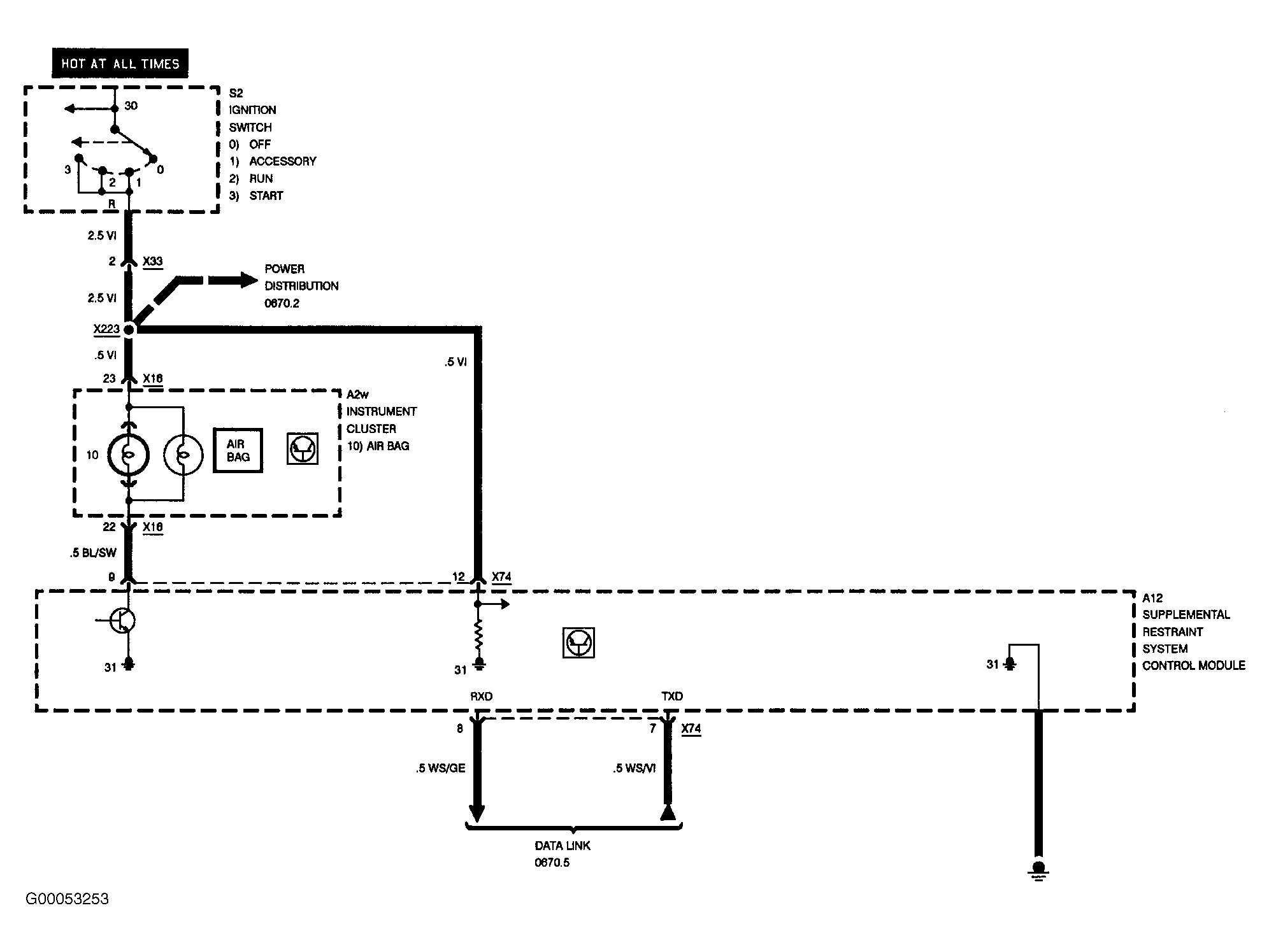

Fig 1: Supplemental Restraint System (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

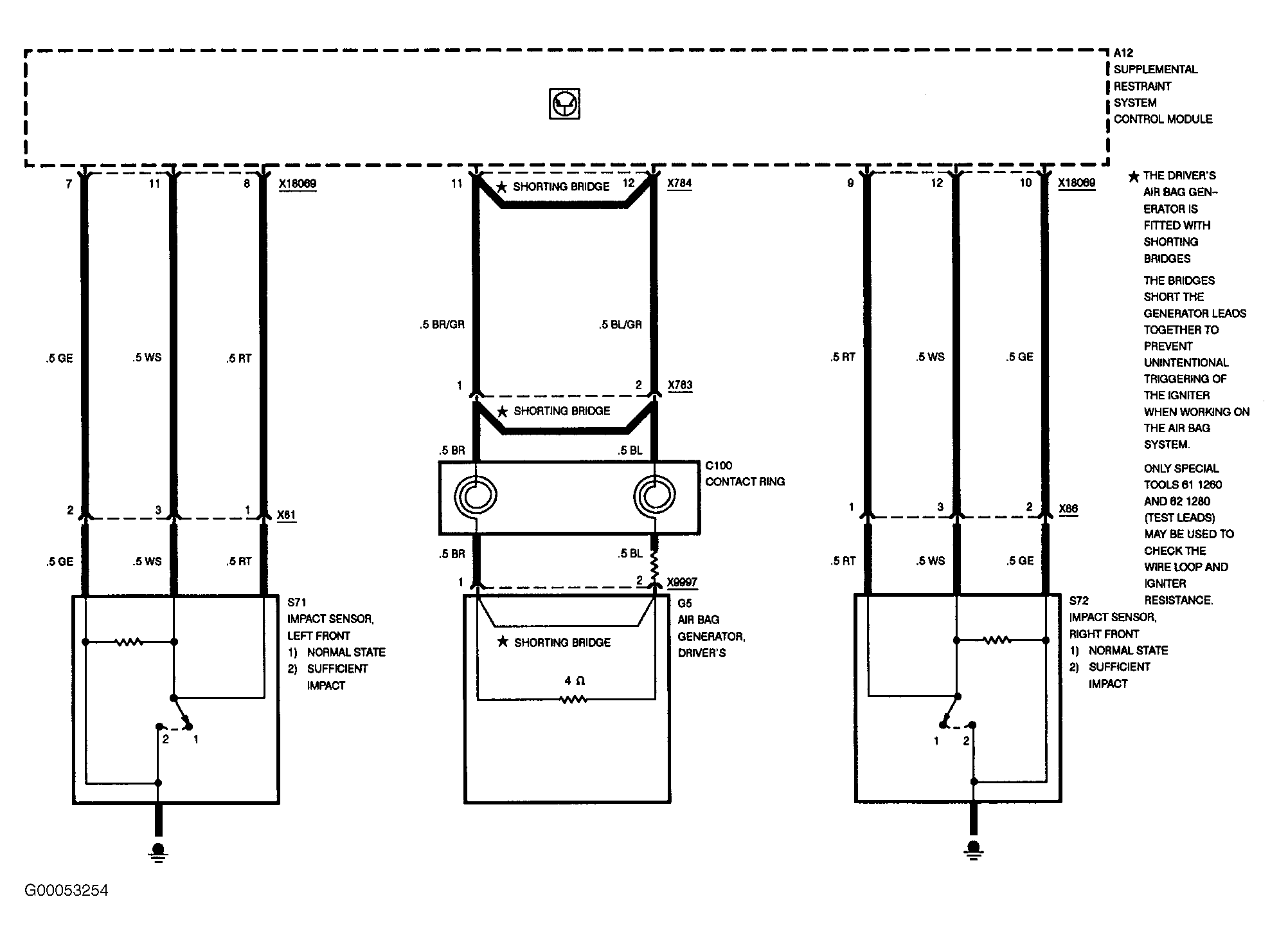

Fig 2: Supplemental Restraint System (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

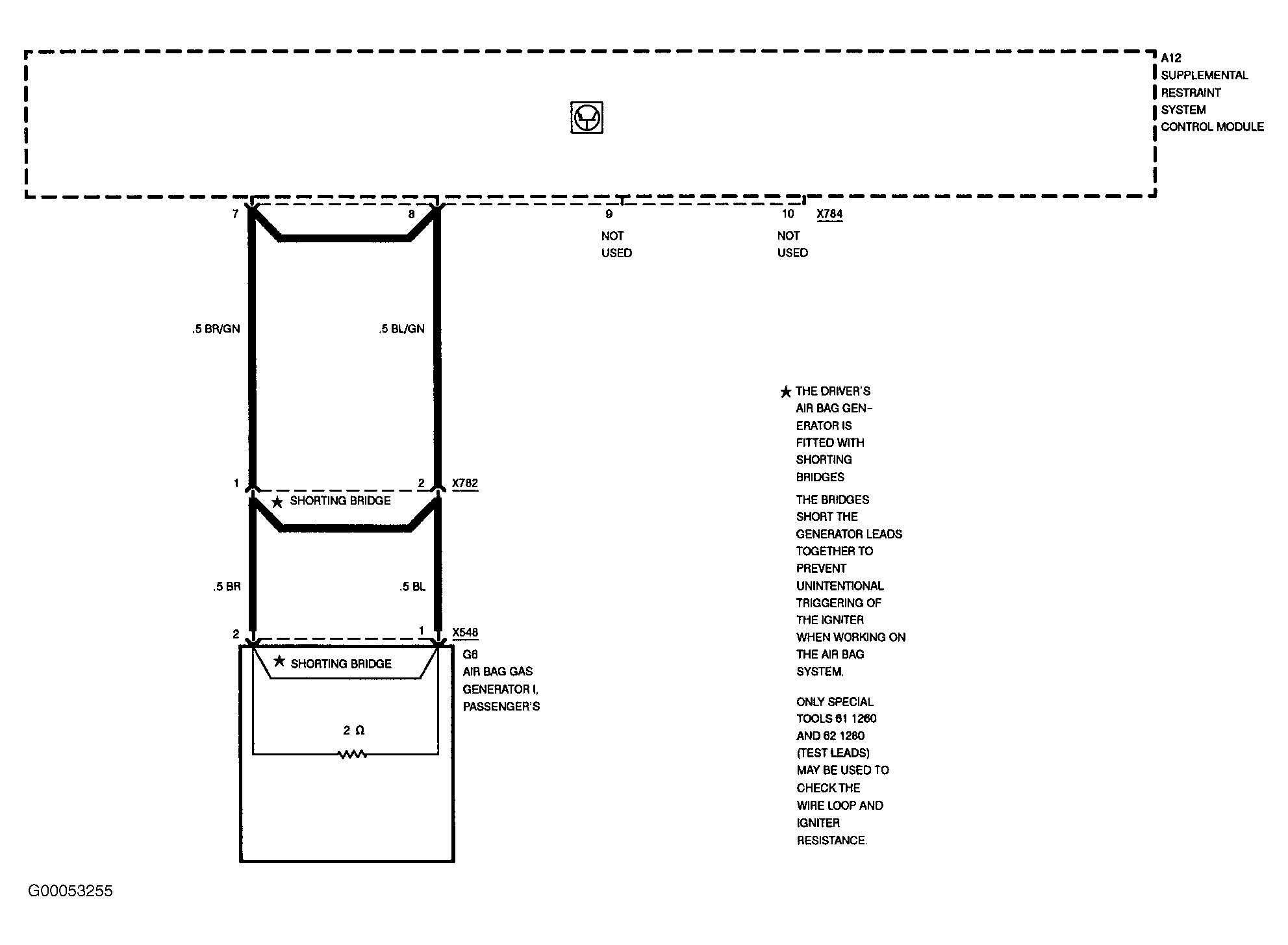

Fig 3: Supplemental Restraint System (W/ Passenger's Airbag)

Courtesy of BMW OF NORTH AMERICA, INC.
