Steering Column Memory (LSM)

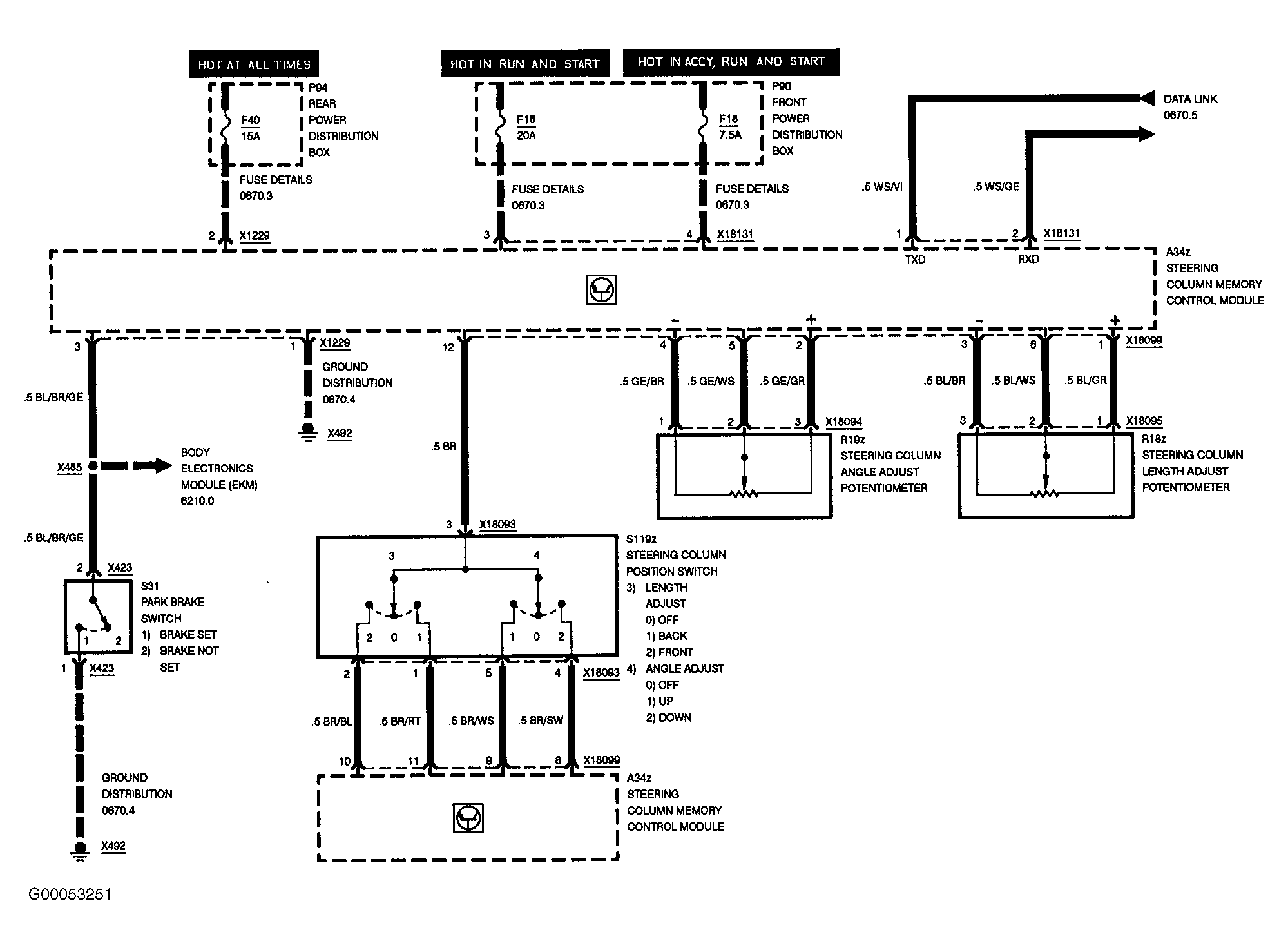

Fig 1: Steering Column Memory (1 Of 2)

G00053251

Courtesy of BMW OF NORTH AMERICA, INC.

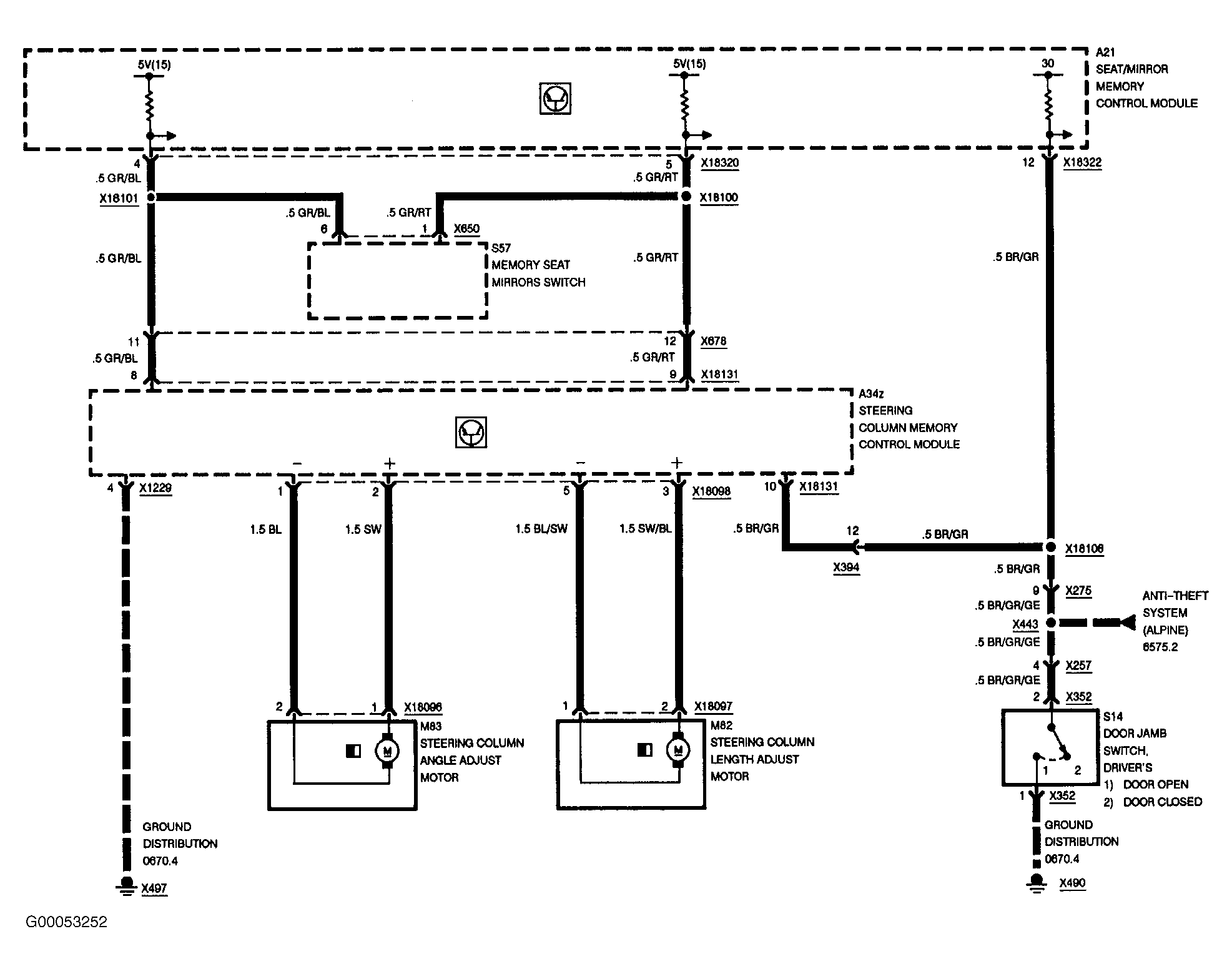

Fig 2: Steering Column Memory (2 Of 2)

G00053252

Courtesy of BMW OF NORTH AMERICA, INC.
