Wiring Diagrams - BMW 850 1991-92
>>
Slip Control (Abs/ASC + T)
>>
Pin Assignments
Pin Assignments

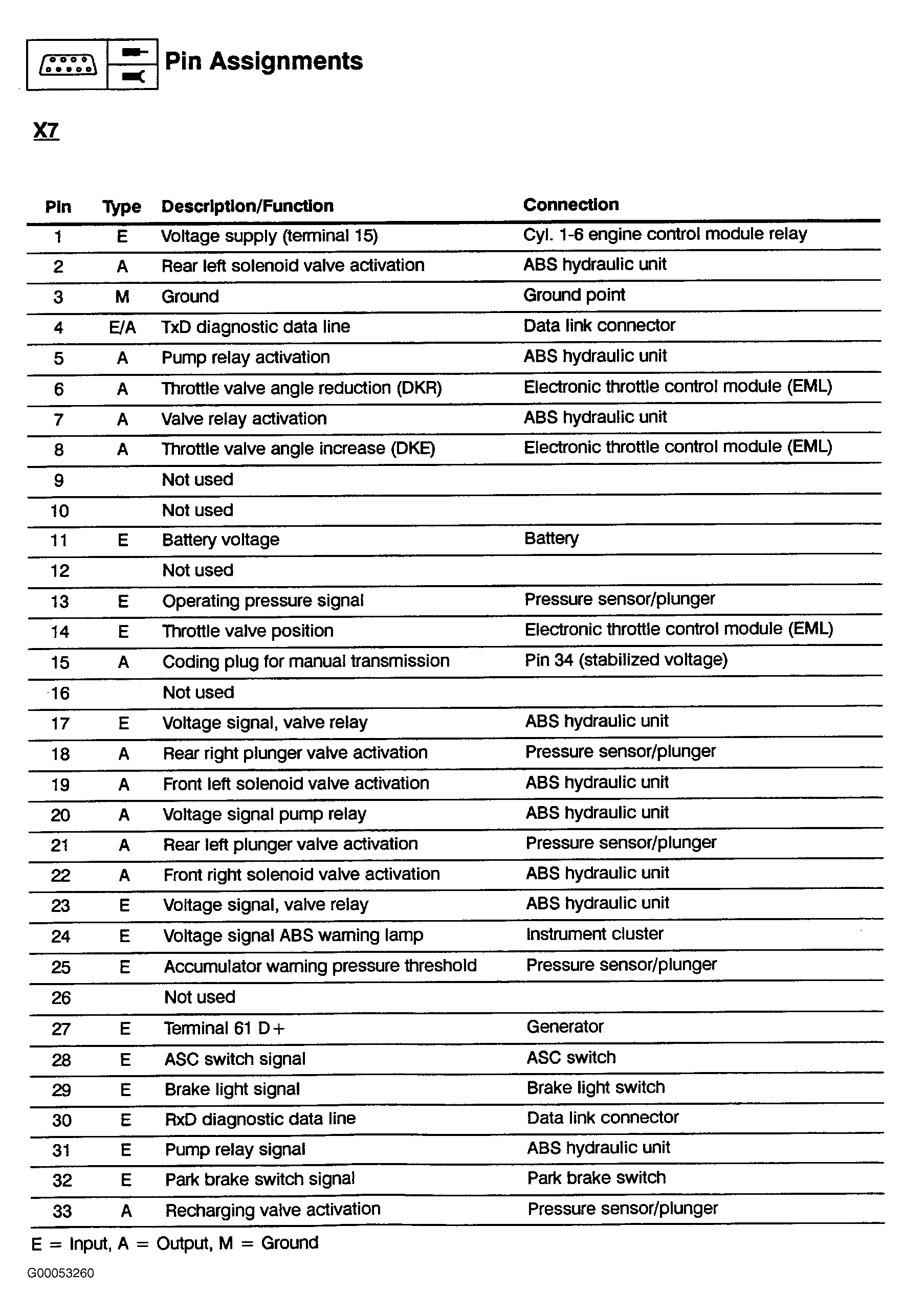

Fig 1: Pin Assignments - Slip Control System (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

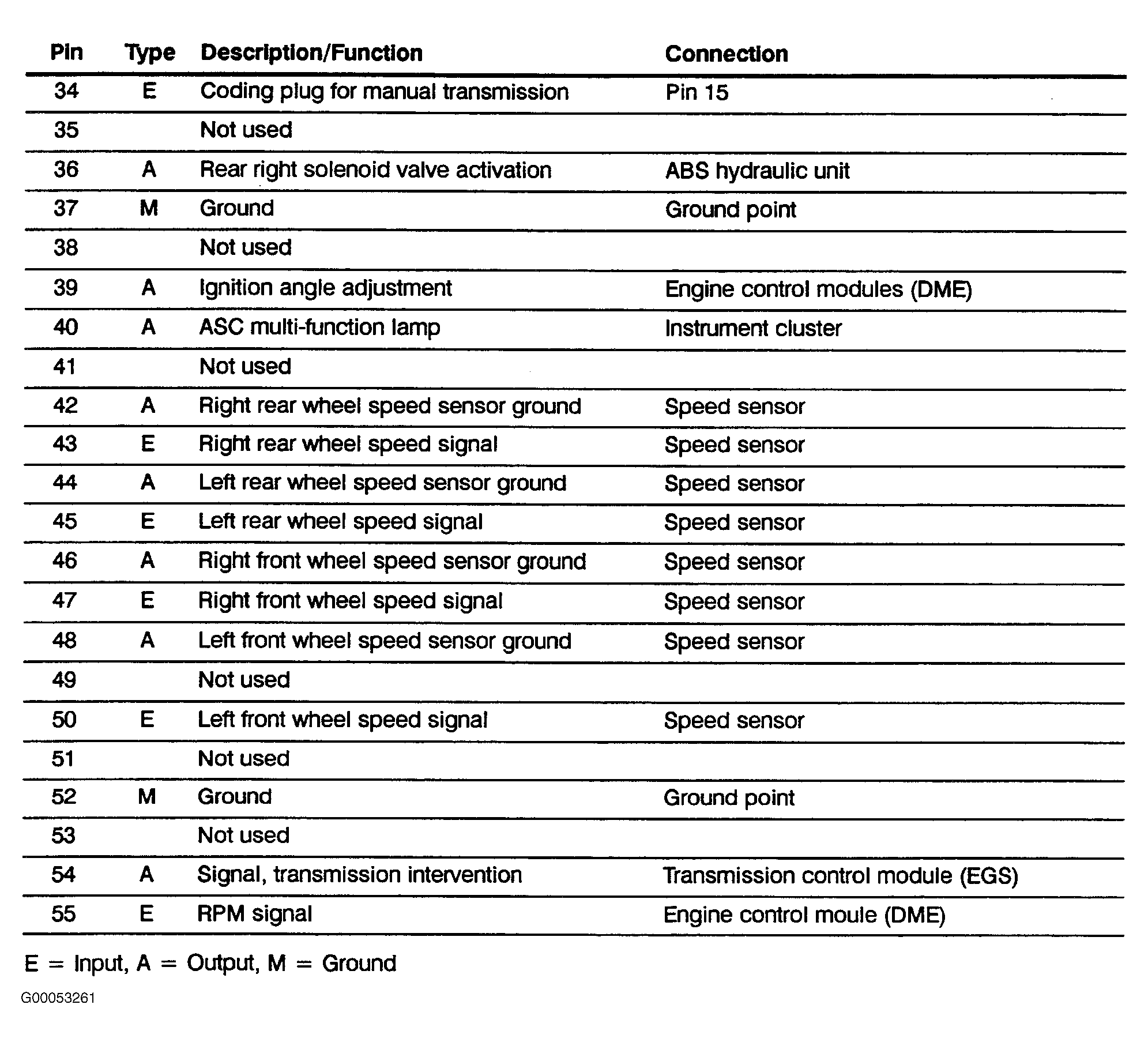

Fig 2: Pin Assignments - Slip Control System (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
