Seat/Mirror Memory (W/ Sport Seat)

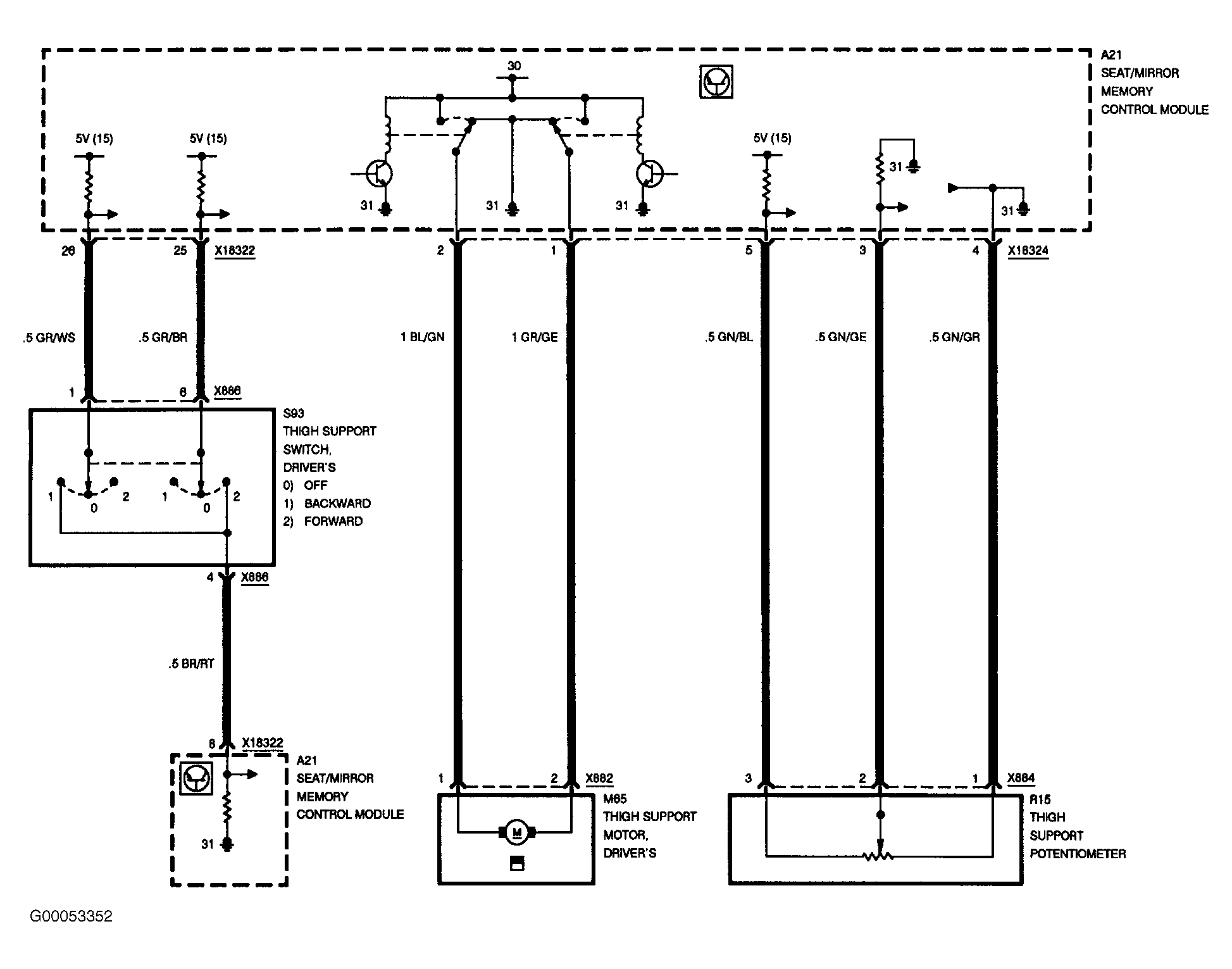

Fig 1: Seat/Mirror Memory (W/ Sport Seat) (1 Of 2)
G00053352Courtesy of BMW OF NORTH AMERICA, INC.

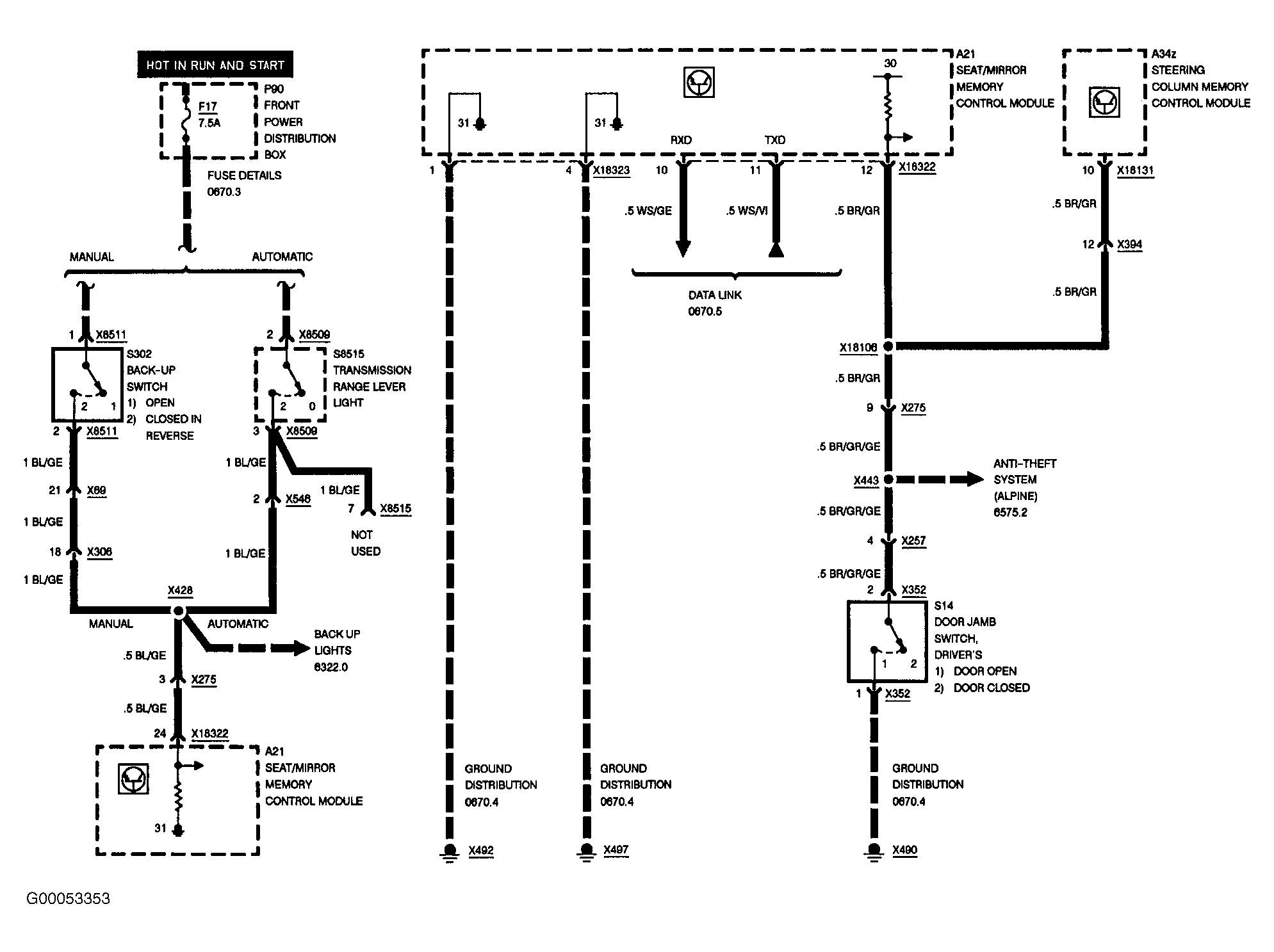

Fig 2: Seat/Mirror Memory (W/ Sport Seat) (2 Of 2)
G00053353Courtesy of BMW OF NORTH AMERICA, INC.
