Wiring Diagrams - BMW 850 1991-92
>>
Seat Mirror Memory System (SM/SPM)
>>
Seat/Mirror Memory (Seat)
Seat/Mirror Memory (Seat)

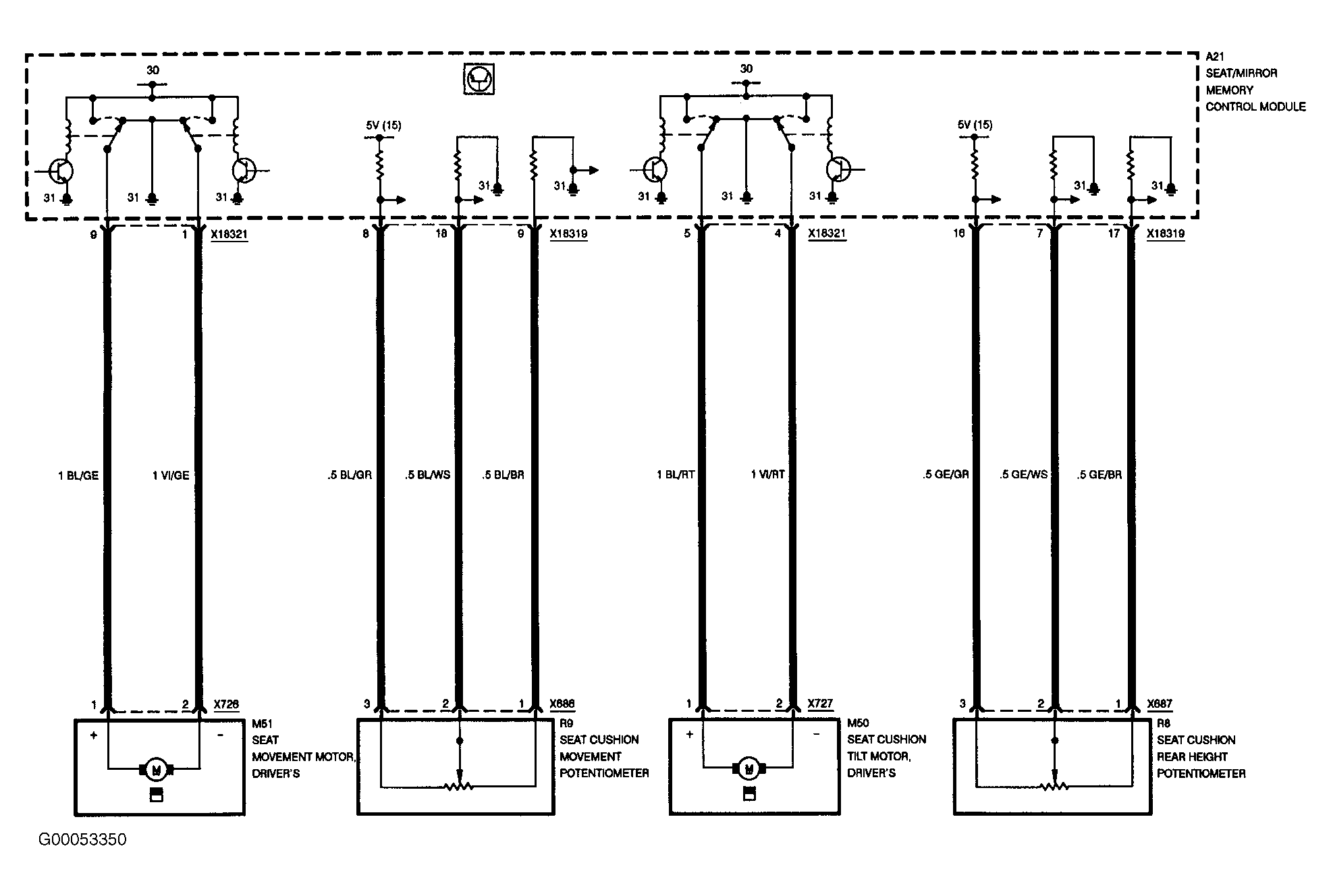

Fig 1: Seat/Mirror Memory (Seat) (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

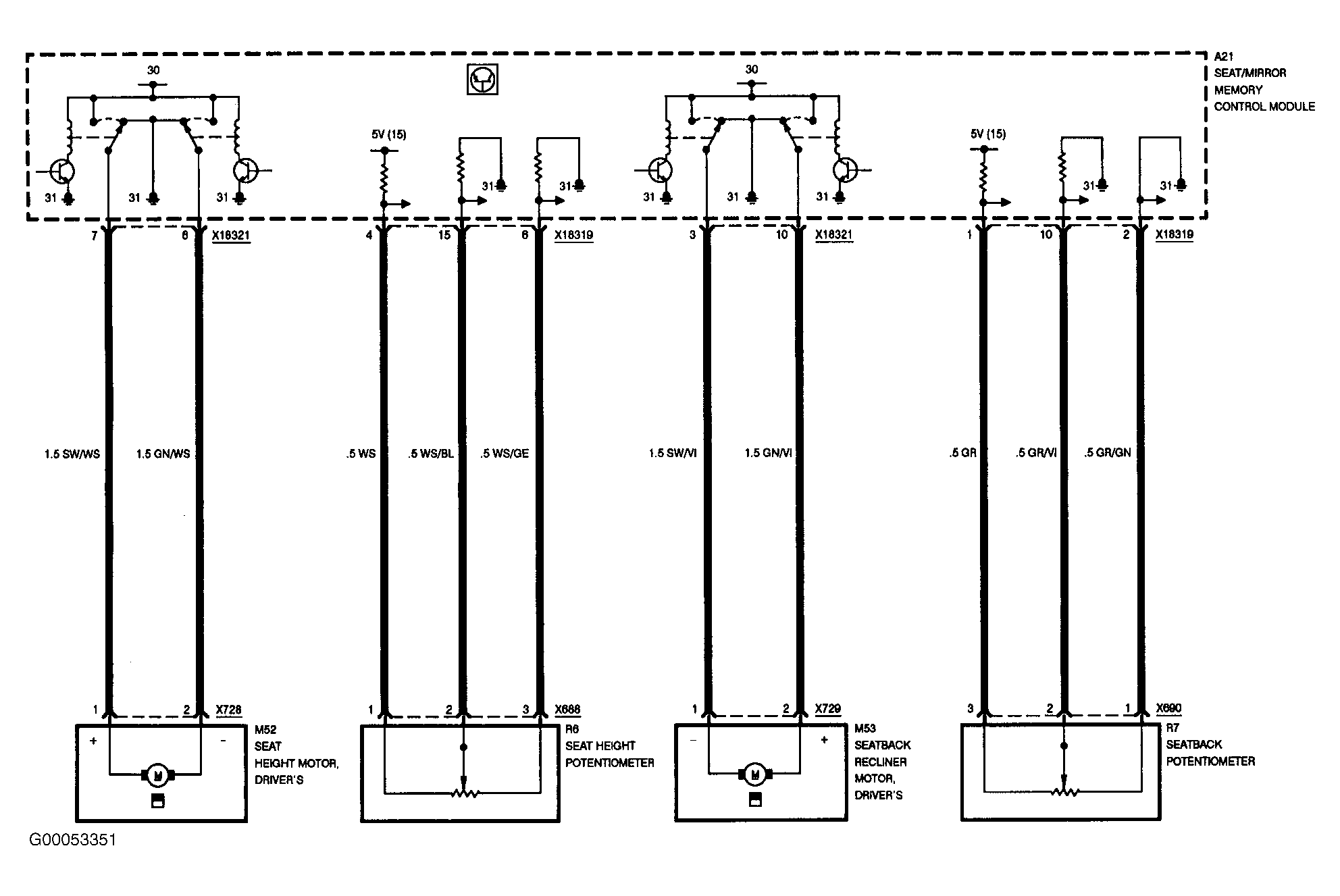

Fig 2: Seat/Mirror Memory (Seat) (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
