Seat/Mirror Memory (Mirror)

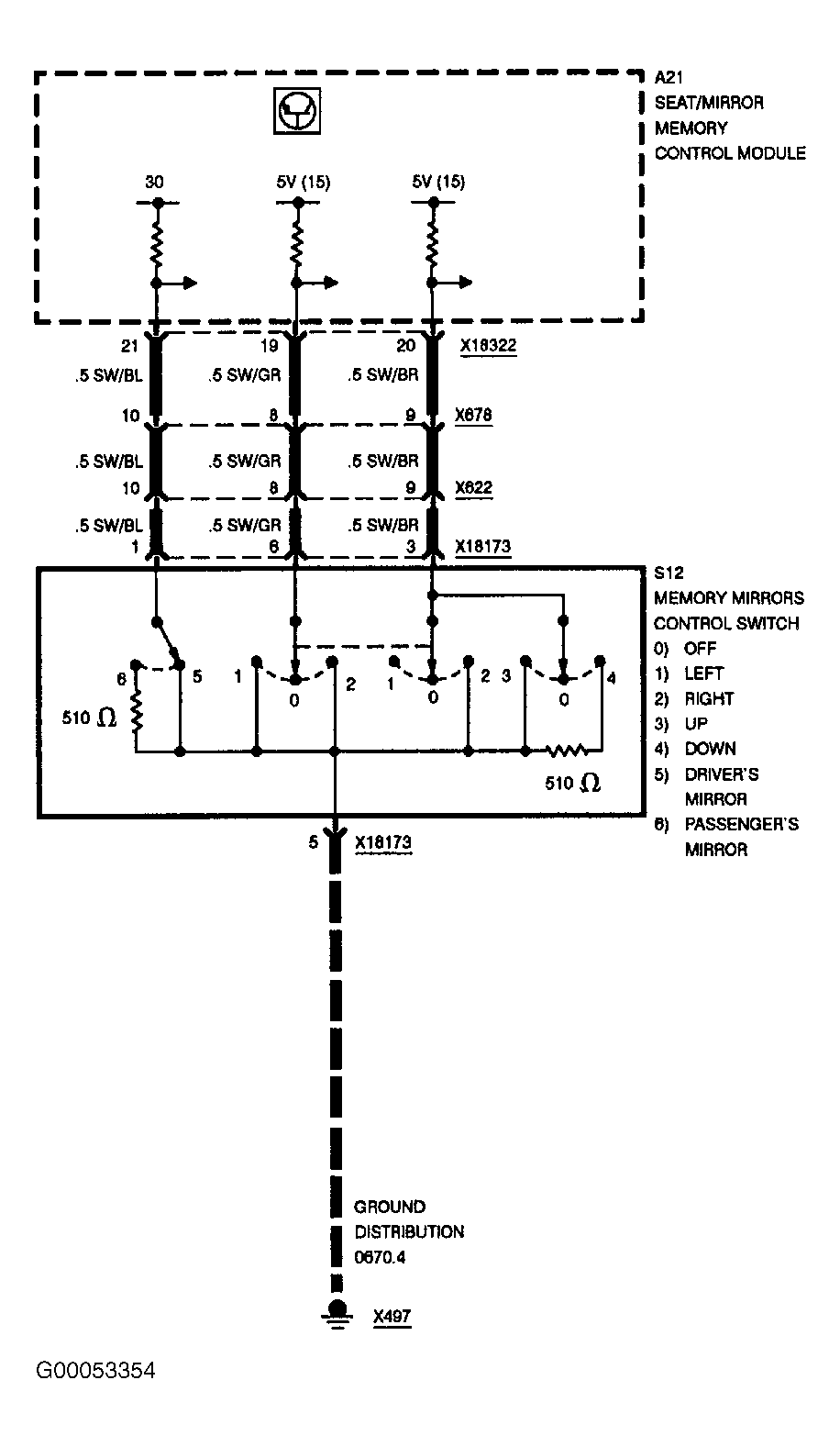

Fig 1: Seat/Mirror Memory (Mirror) (1 Of 3)
G00053354Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Seat/Mirror Memory (Mirror) (2 Of 3)
G00053355Courtesy of BMW OF NORTH AMERICA, INC.

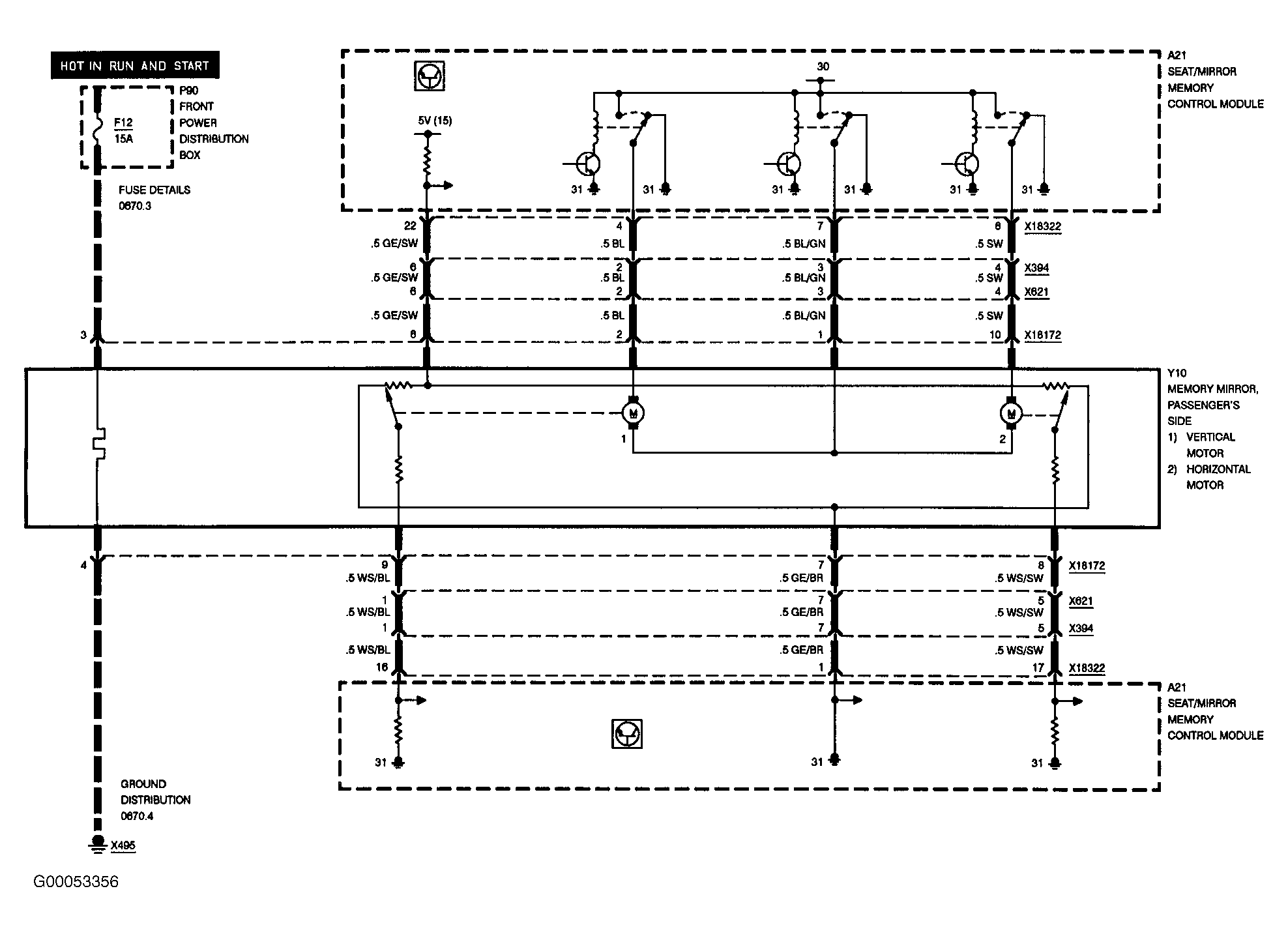

Fig 3: Seat/Mirror Memory (Mirror) (3 Of 3)
G00053356Courtesy of BMW OF NORTH AMERICA, INC.
