Wiring Diagrams - BMW 850 1991-92
>>
Seat Mirror Memory System (SM/SPM)
>>
Pin Assignments
Pin Assignments

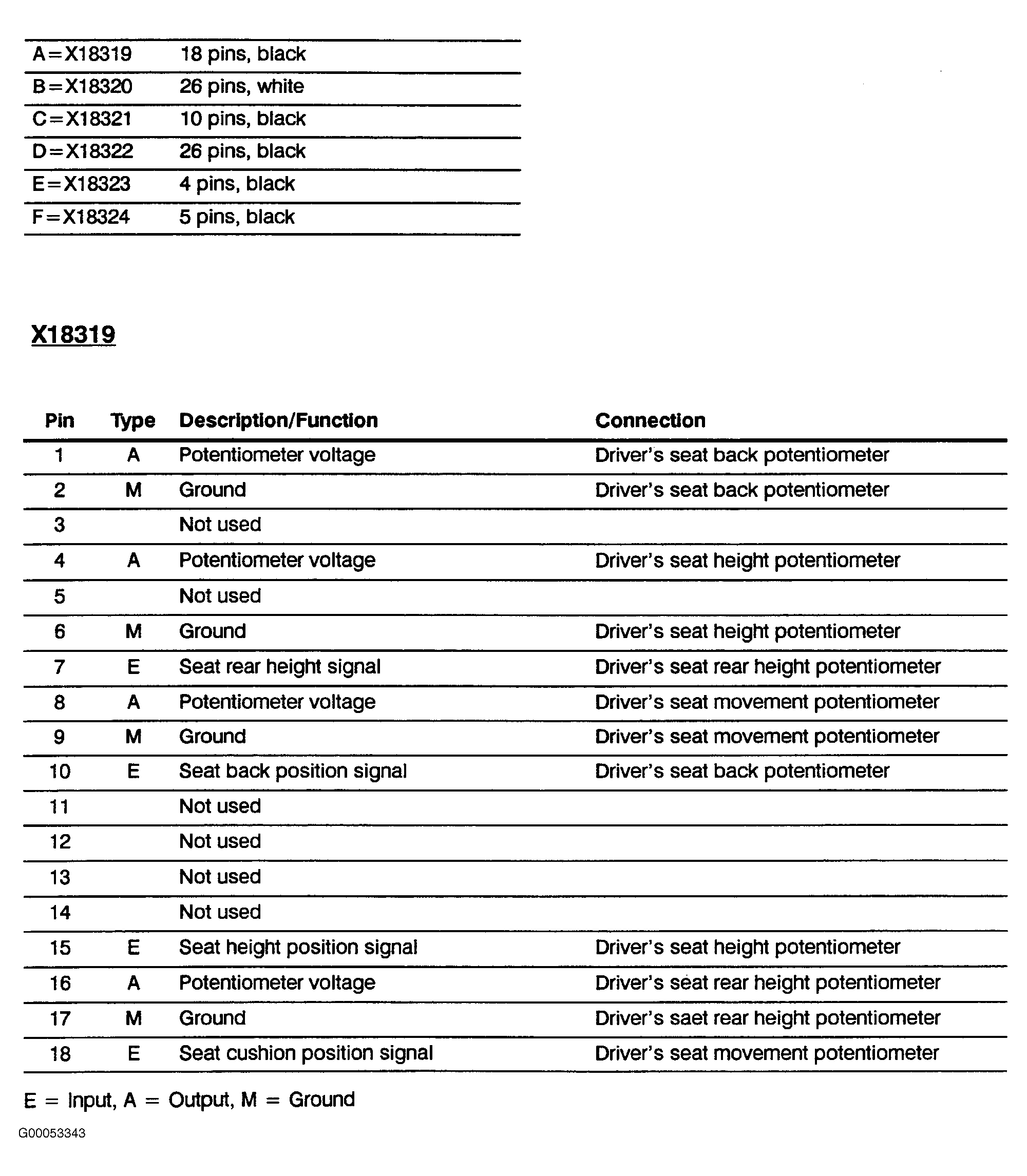

Fig 1: Pin Assignments - Seat Mirror Memory System - (1 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.

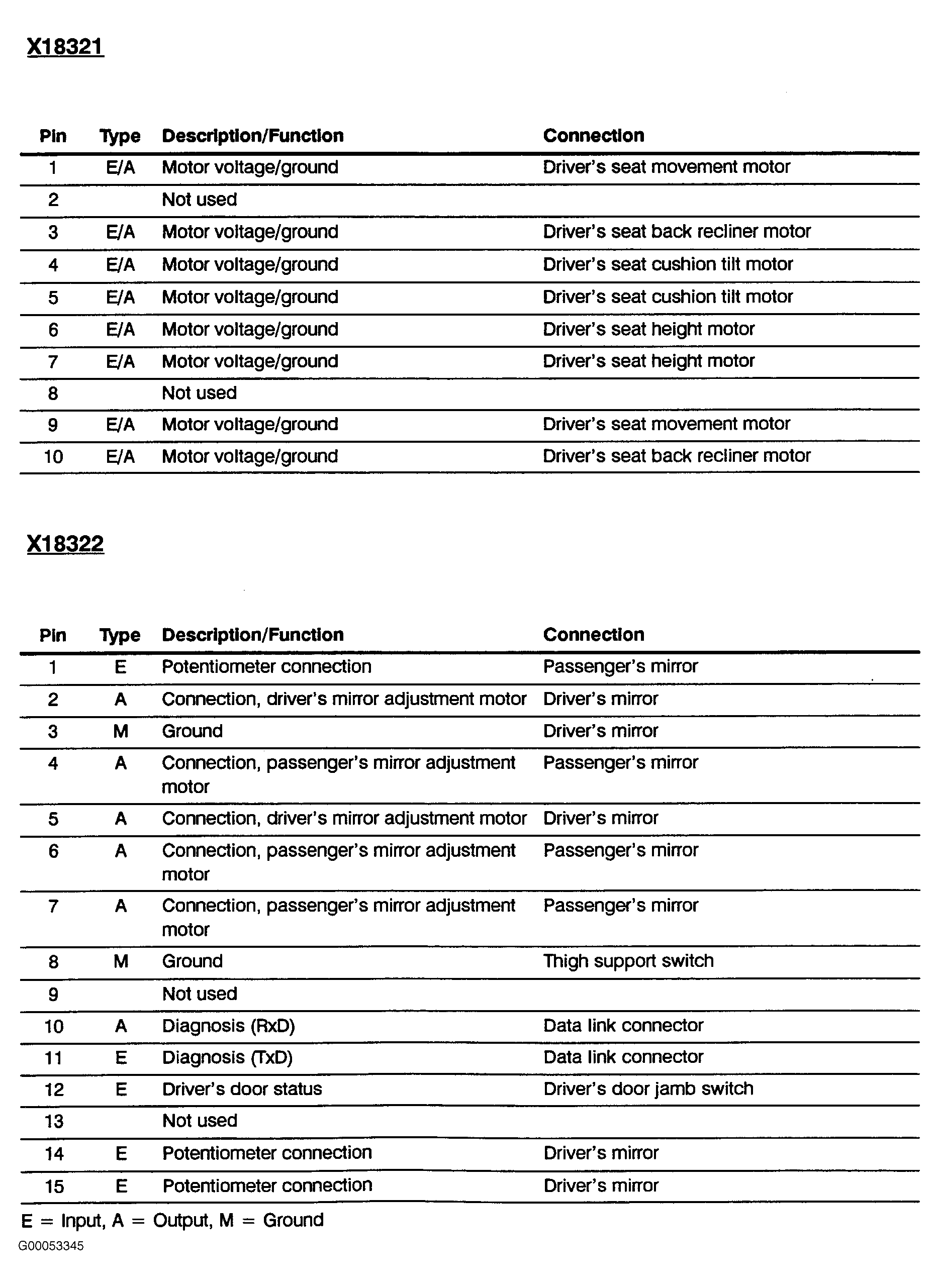

Fig 2: Pin Assignments - Seat Mirror Memory System - (2 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.

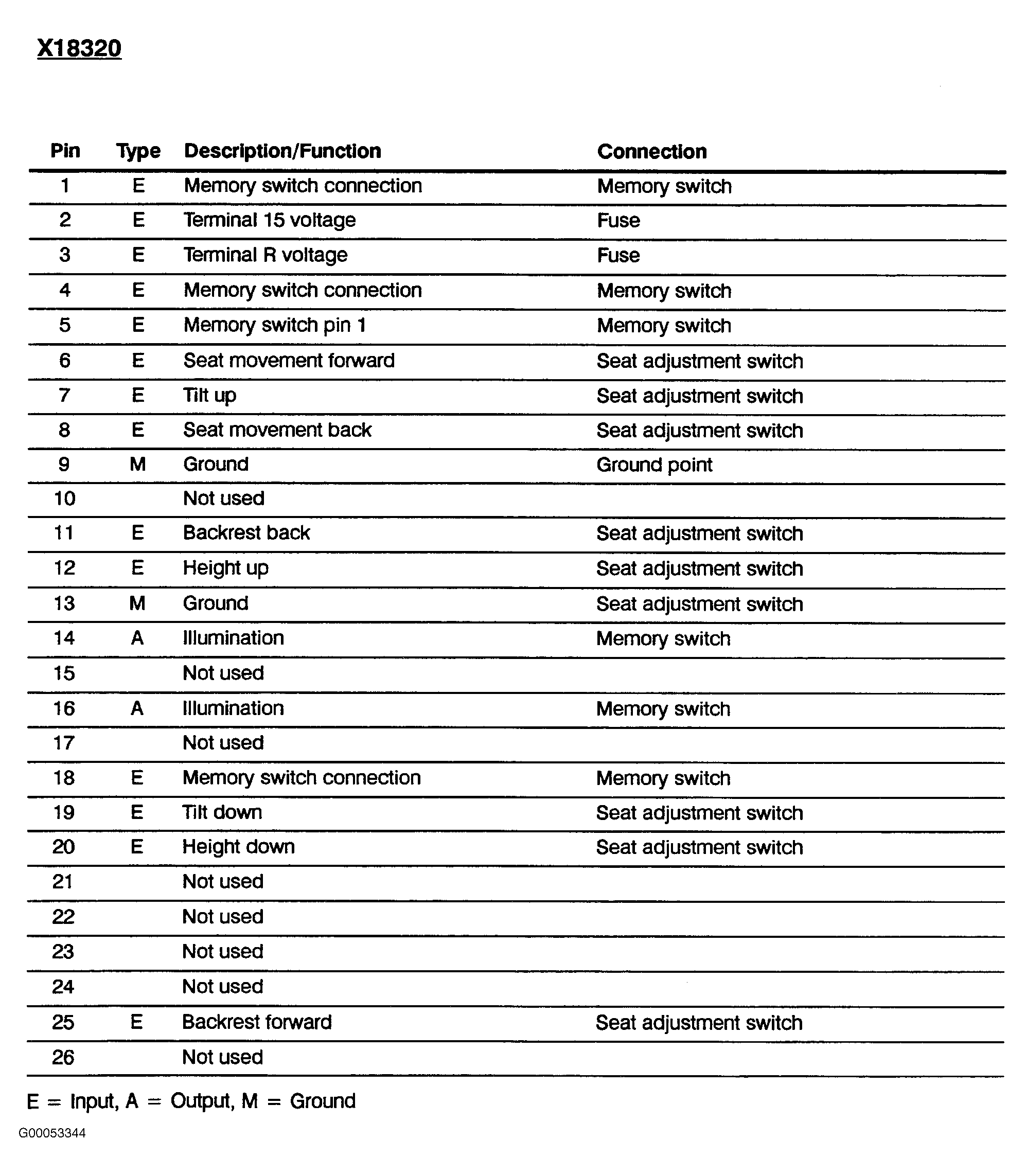

Fig 3: Pin Assignments - Seat Mirror Memory System - (3 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.

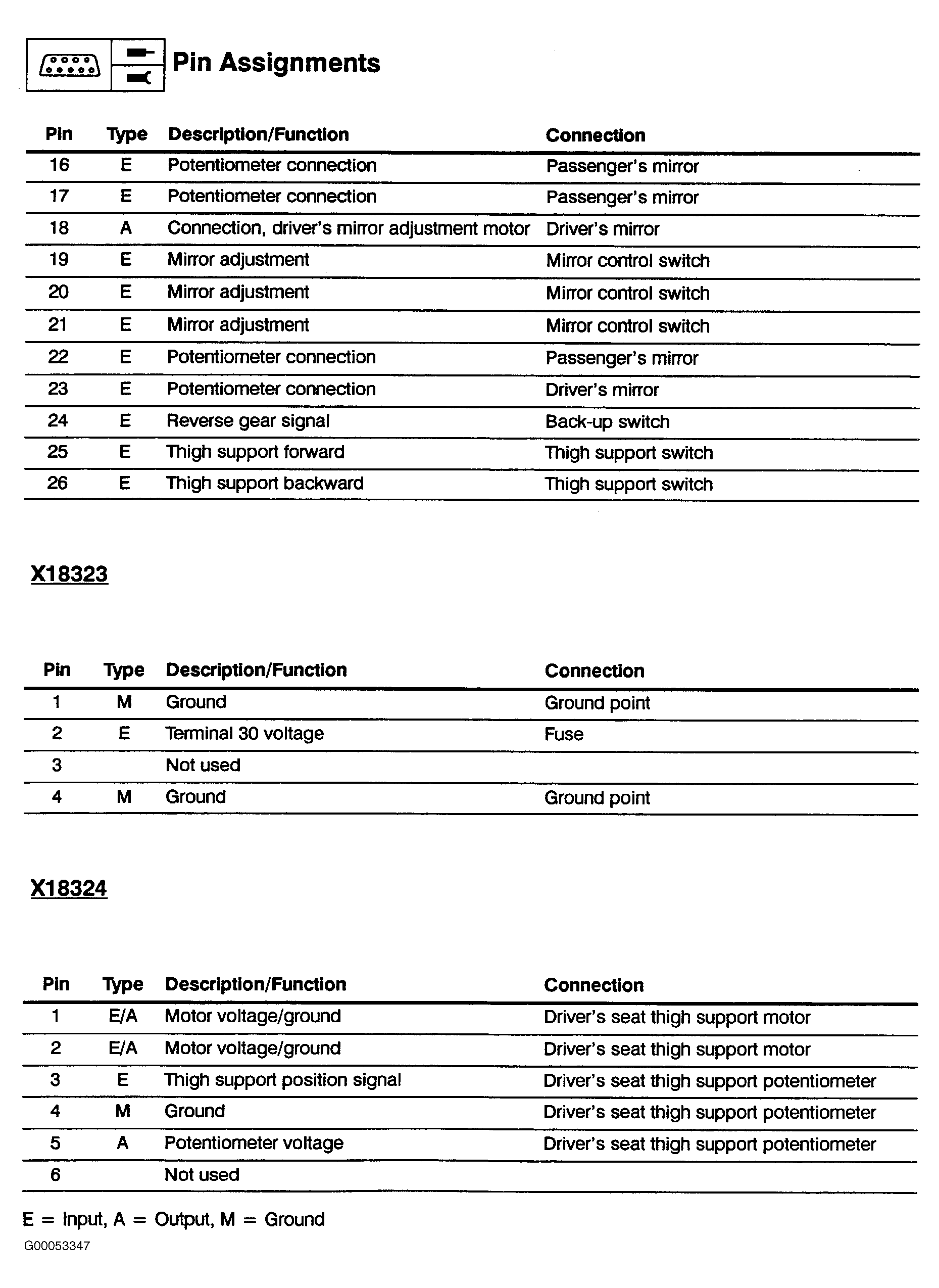

Fig 4: Pin Assignments - Seat Mirror Memory System - (4 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.
