Rear Window Defogger/Antenna: Notes

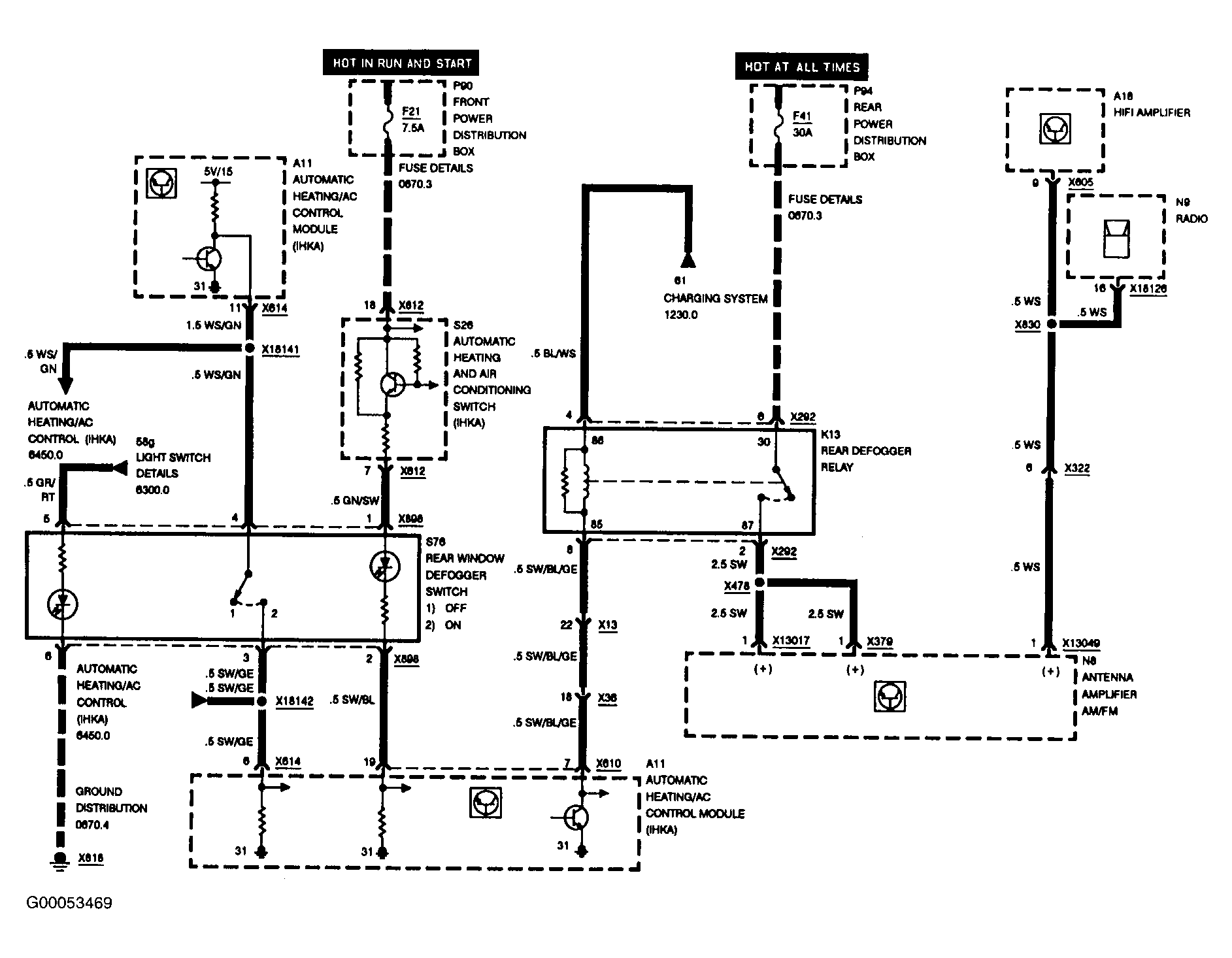

Fig 1: Rear Window Defogger/Antenna

G00053469

Courtesy of BMW OF NORTH AMERICA, INC.
