Wiring Diagrams - BMW 850 1991-92
>>
Rear Window Defogger/Antenna
>>
3-Antenna System
3-Antenna System

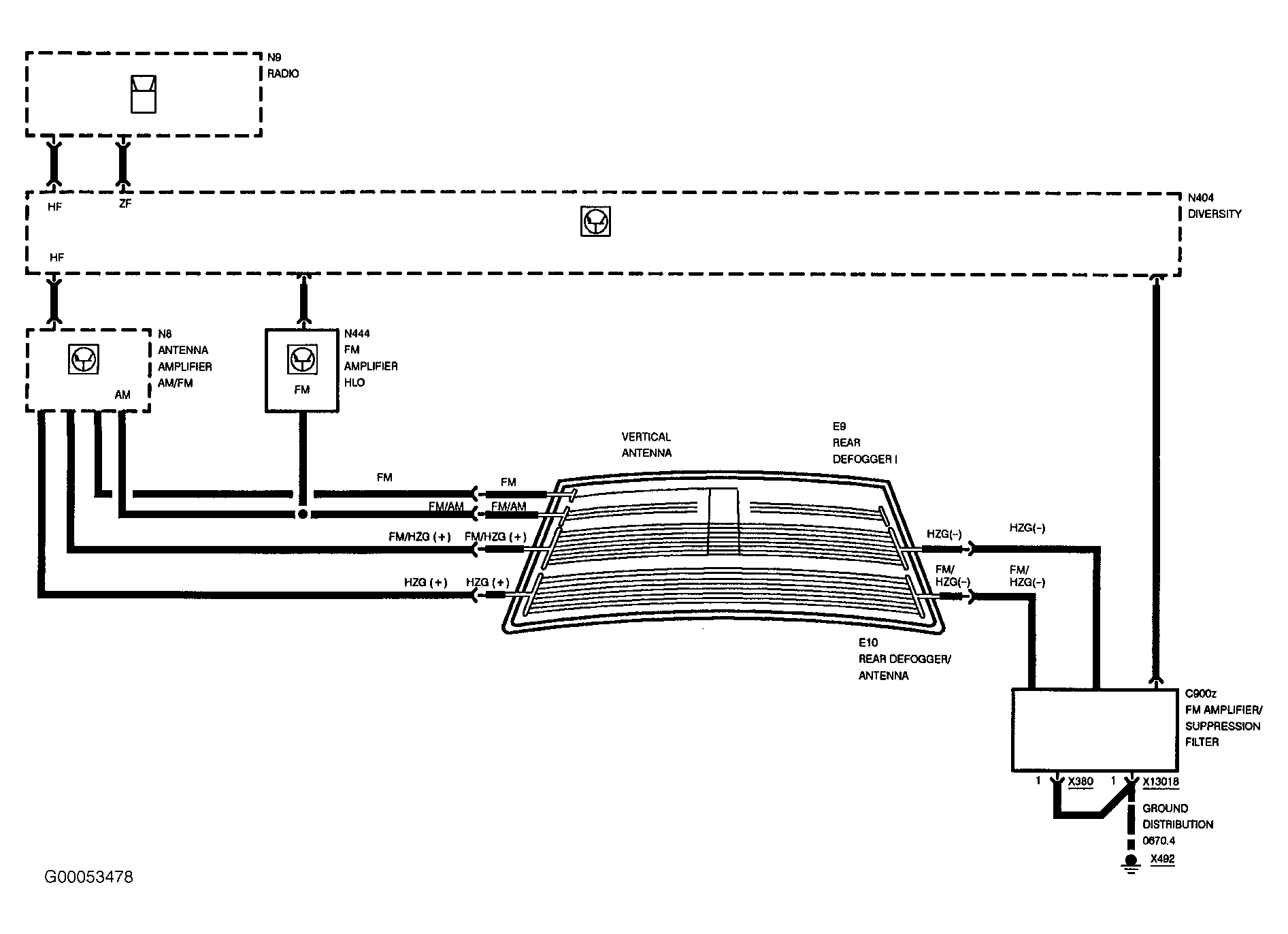

Fig 1: 3-Antenna System
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
