HIFI, 10-Speaker System (One Component)

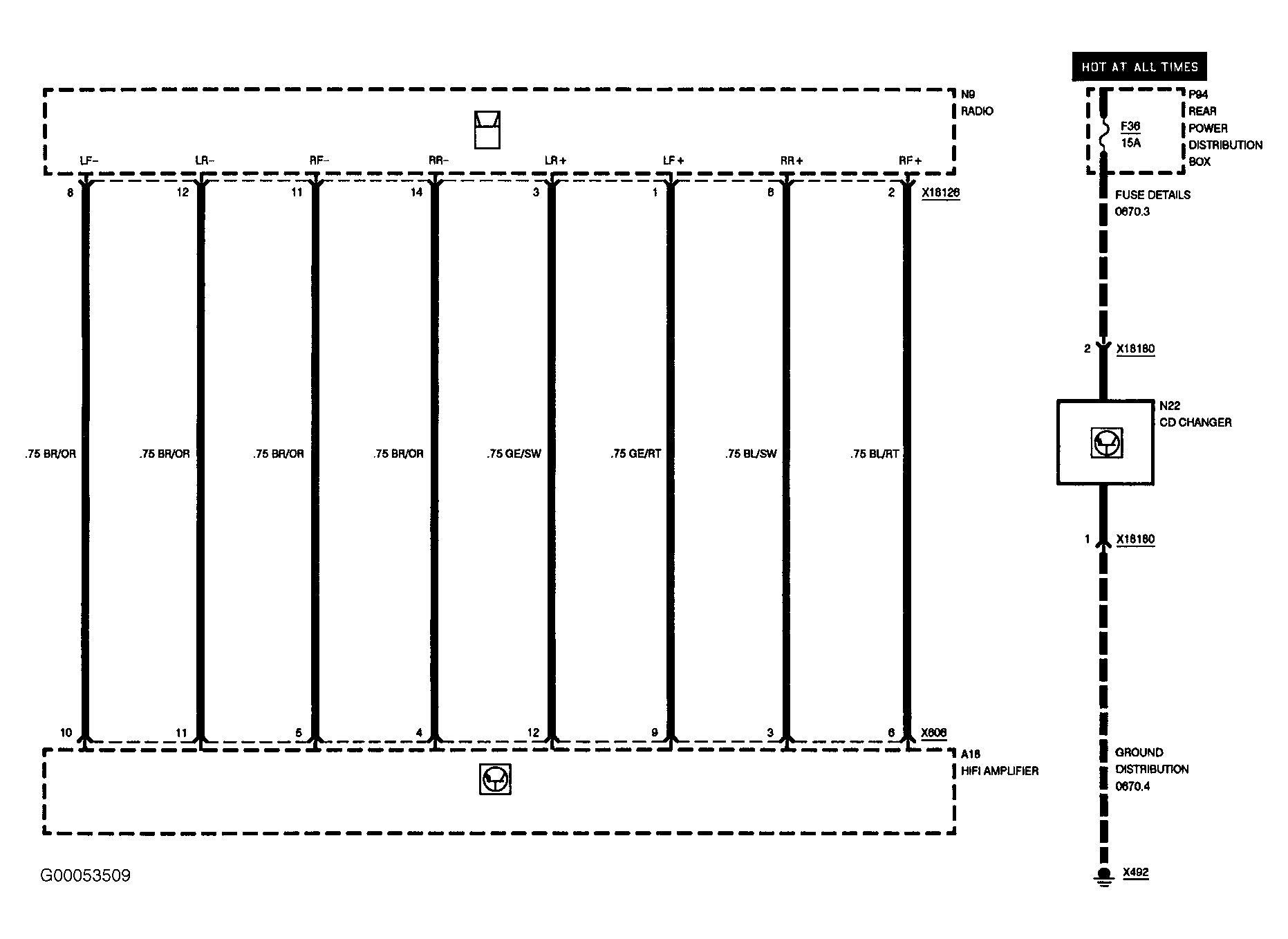

Fig 1: HIFI, 10-Speaker System (One Component)

G00053509

Courtesy of BMW OF NORTH AMERICA, INC.
