HIFI (10-Speaker System)

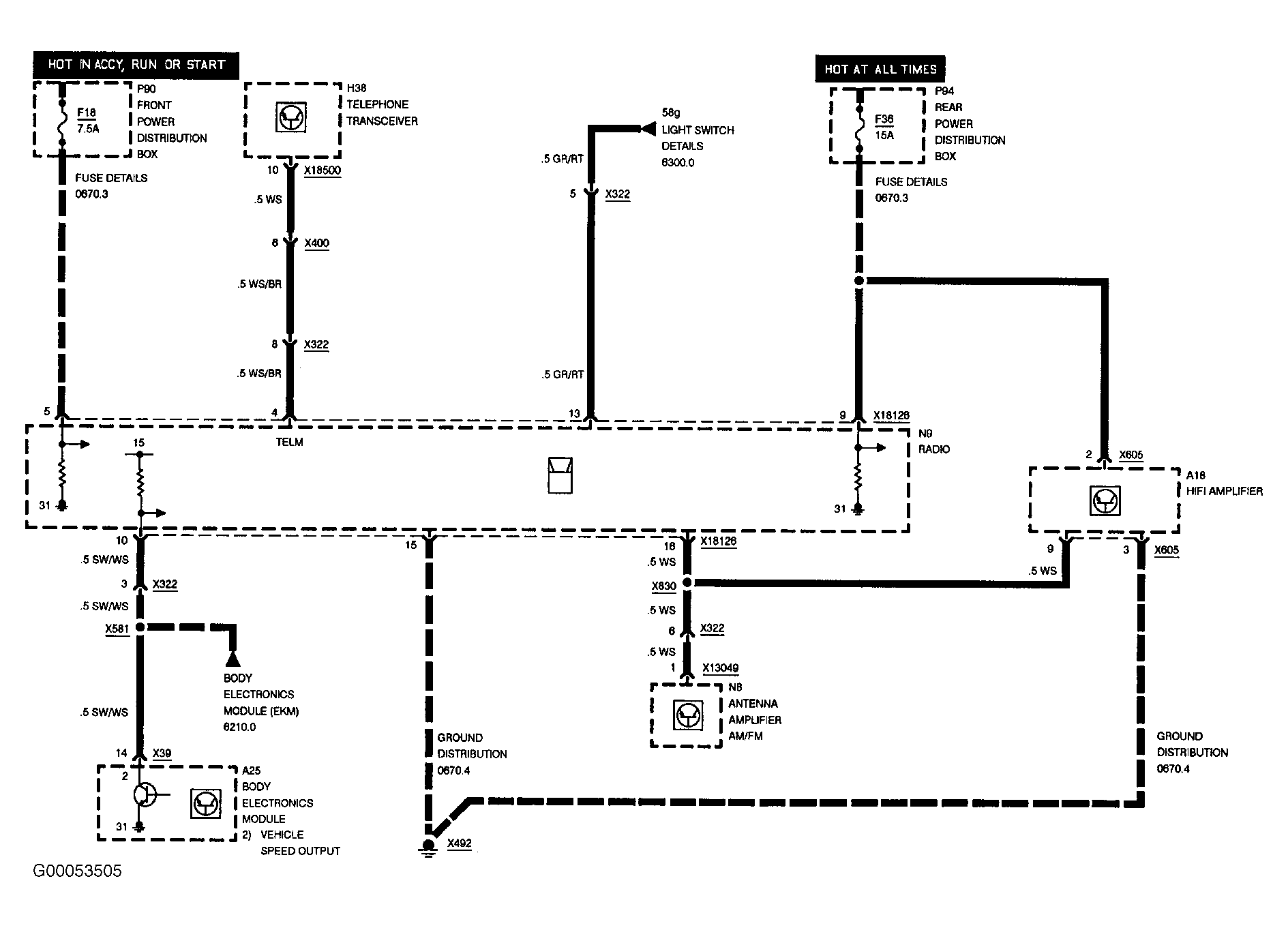

Fig 1: HIFI (10-Speaker System) (1 Of 4)
G00053505Courtesy of BMW OF NORTH AMERICA, INC.

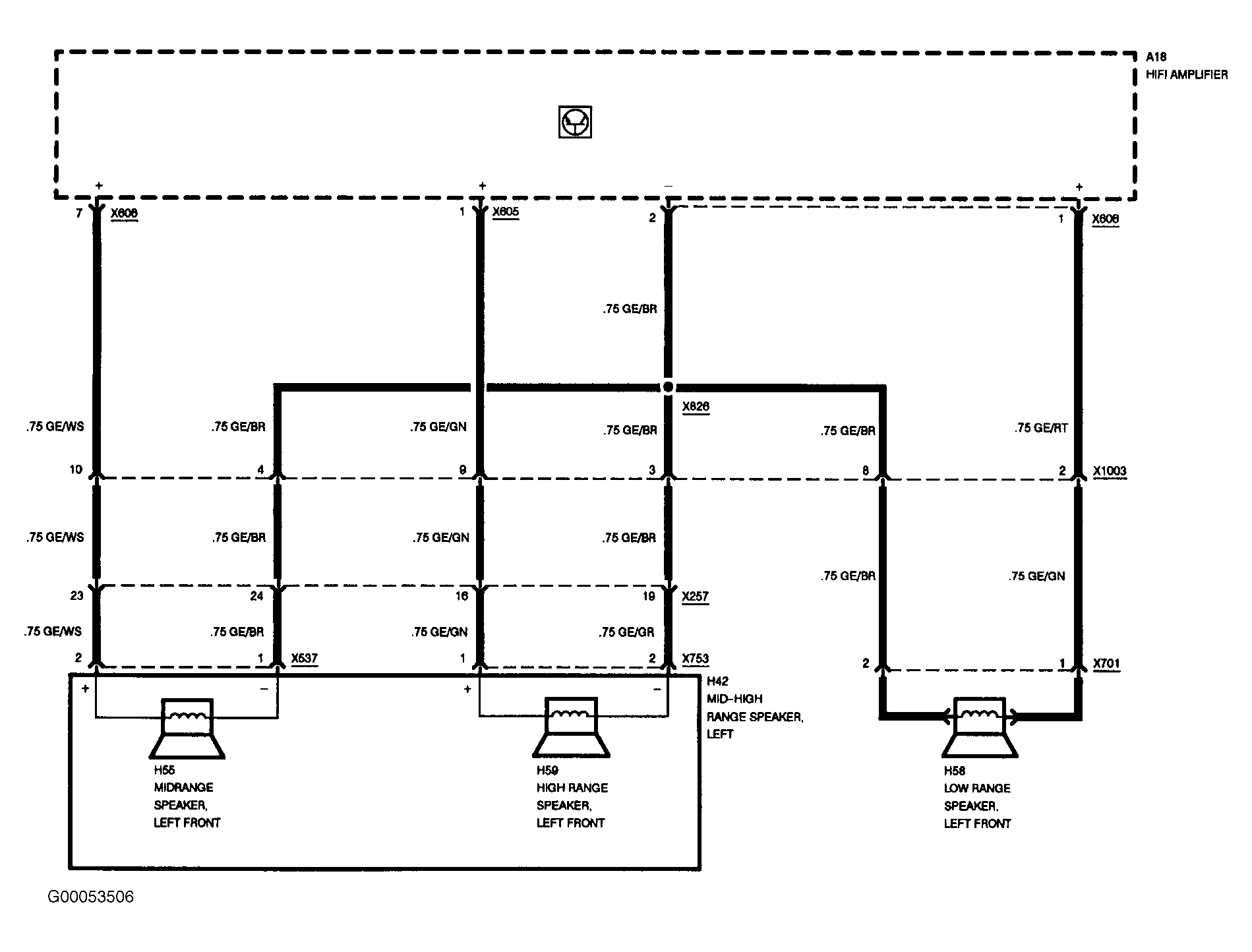

Fig 2: HIFI (10-Speaker System) (2 Of 4)
G00053506Courtesy of BMW OF NORTH AMERICA, INC.

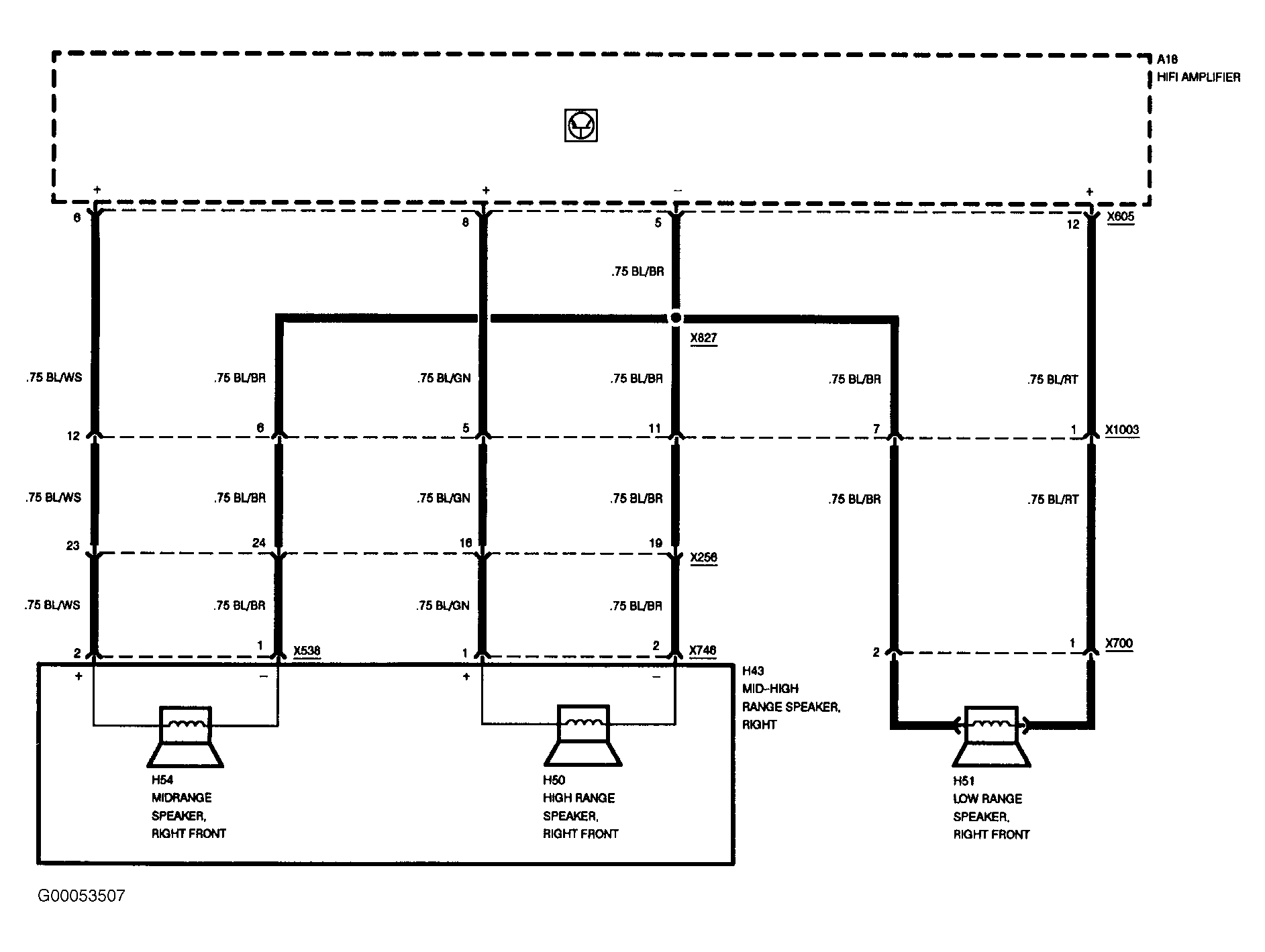

Fig 3: HIFI (10-Speaker System) (3 Of 4)
G00053507Courtesy of BMW OF NORTH AMERICA, INC.

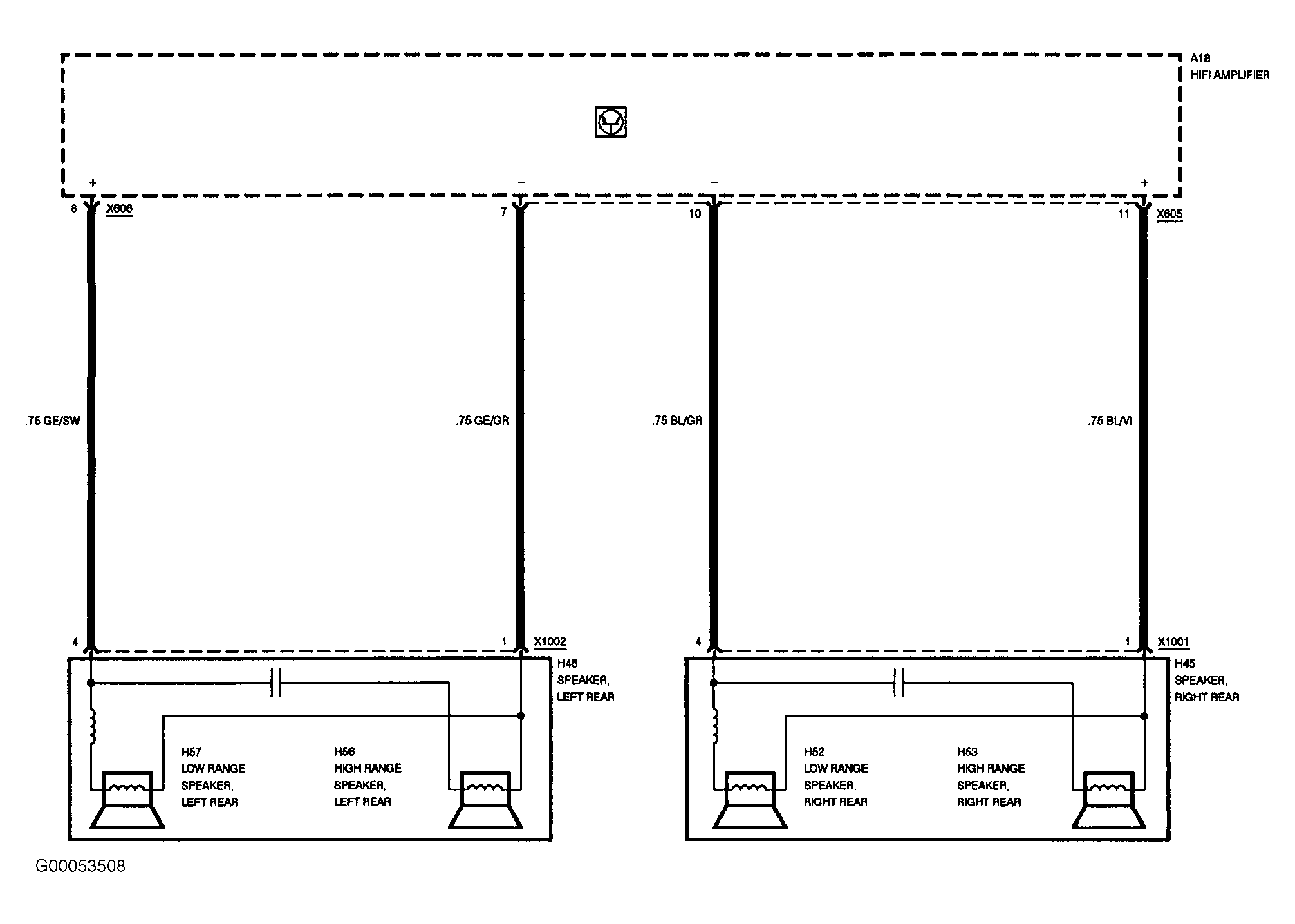

Fig 4: HIFI (10-Speaker System) (4 Of 4)
G00053508Courtesy of BMW OF NORTH AMERICA, INC.
