Wiring Diagrams - BMW 850 1991-92
>>
Power Seats
>>
Thigh Support
Thigh Support

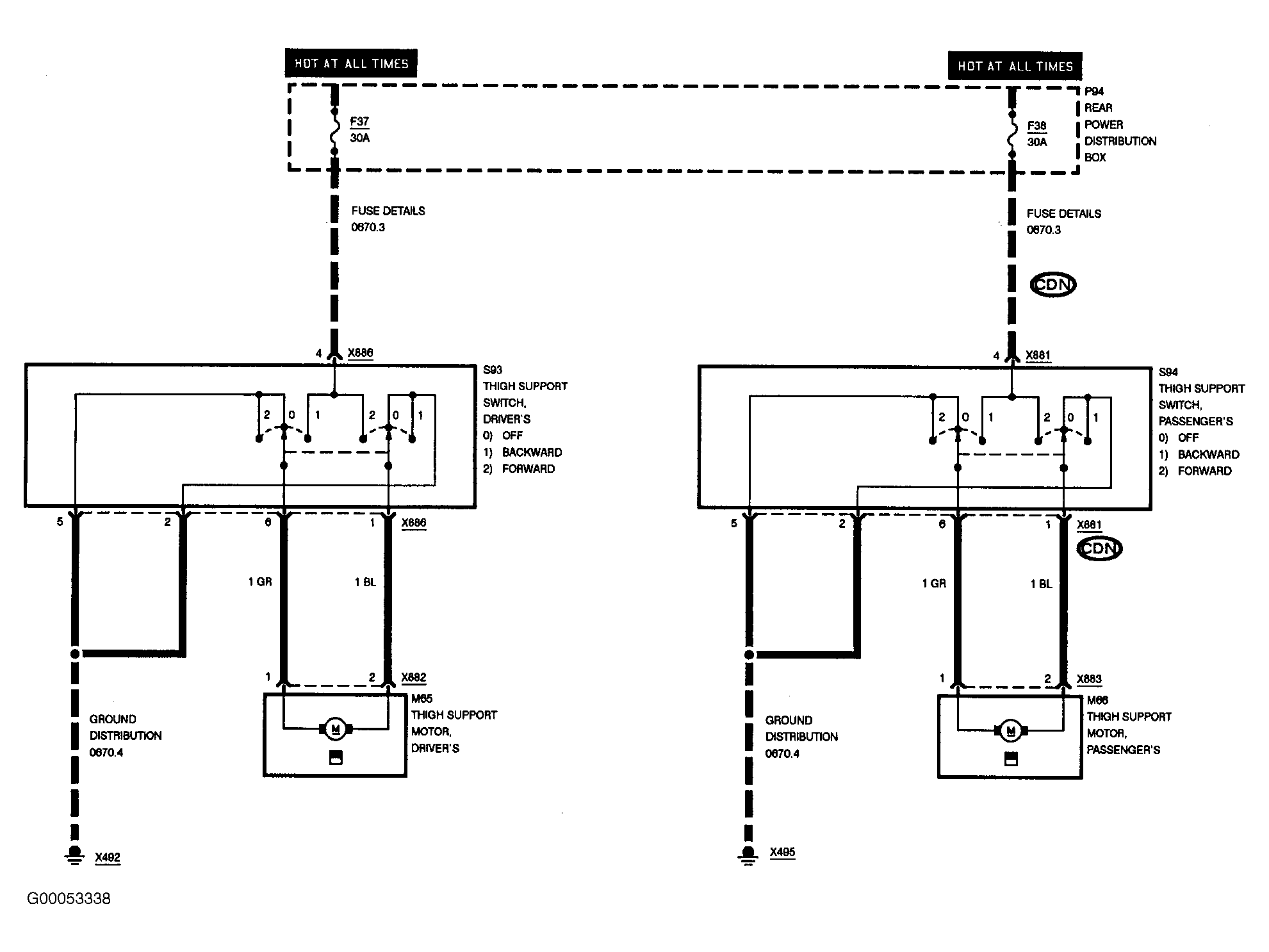

Fig 1: Power Seats - Thigh Support (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Power Seats - Thigh Support (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
