Passenger's Seat

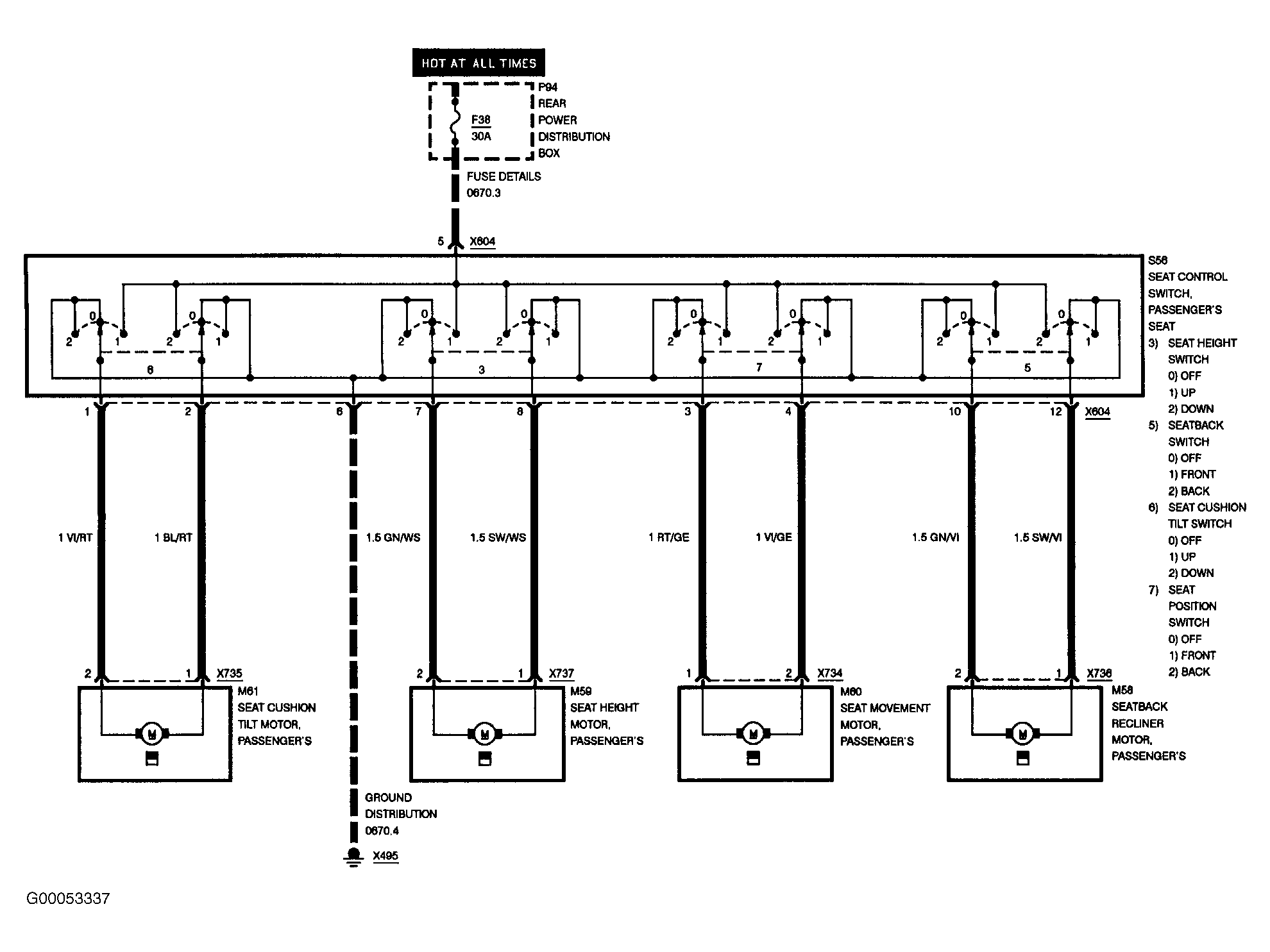

Fig 1: Power Seats - Passenger's Seat

G00053337

Courtesy of BMW OF NORTH AMERICA, INC.
