Outside Mirrors

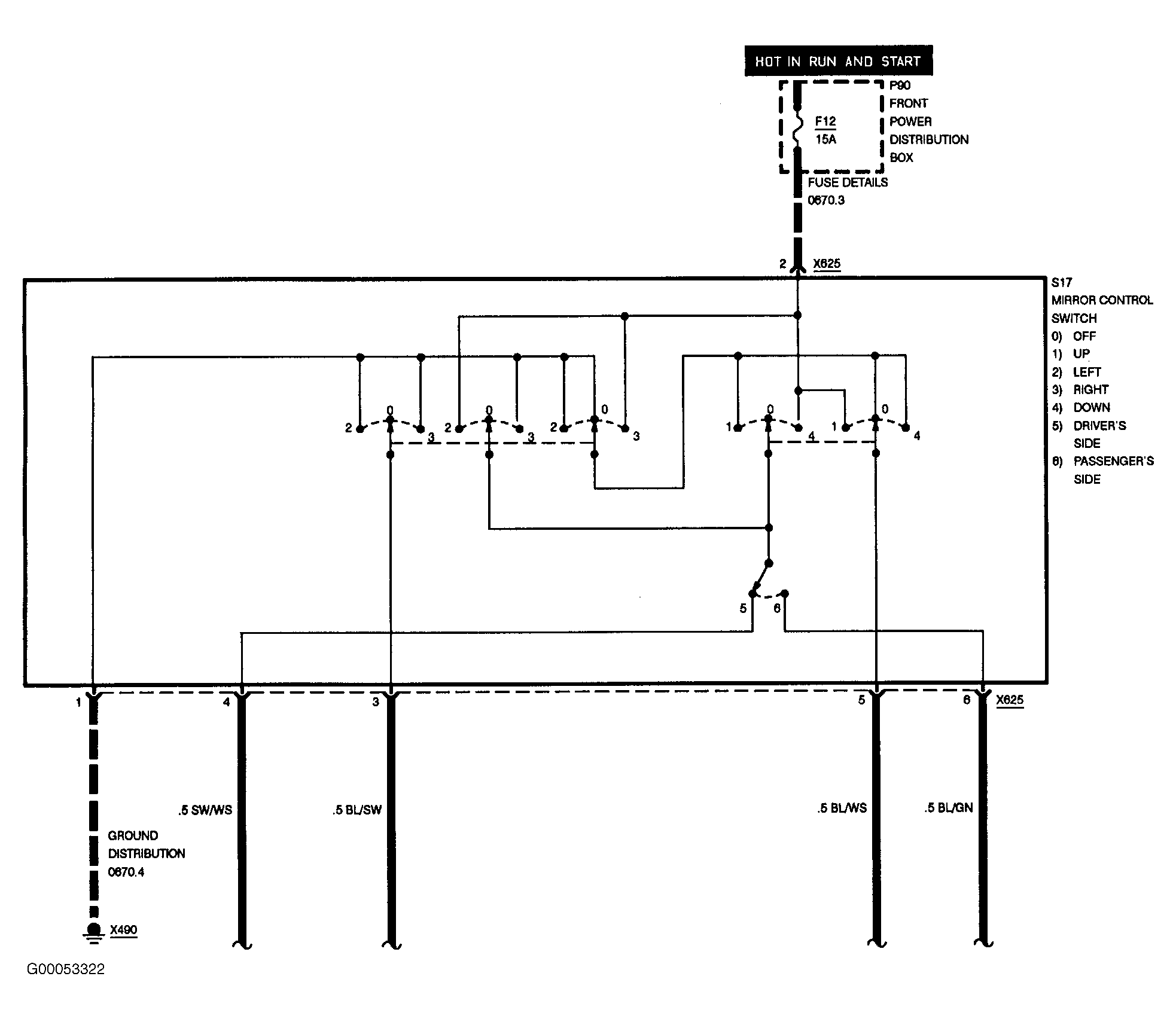

Fig 1: Outside Power Mirrors (1 Of 2)

G00053322

Courtesy of BMW OF NORTH AMERICA, INC.

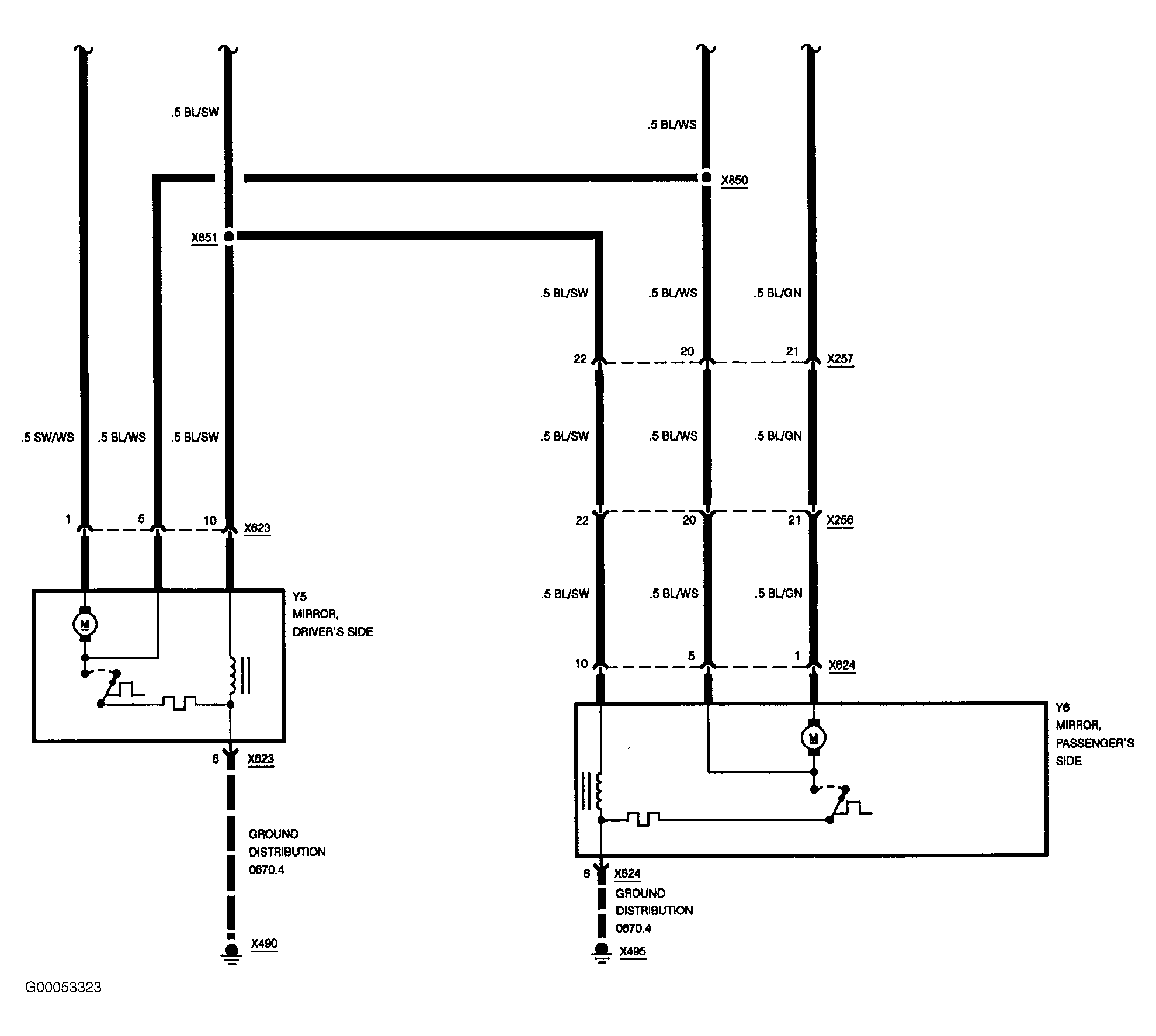

Fig 2: Outside Power Mirrors (2 Of 2)

G00053323

Courtesy of BMW OF NORTH AMERICA, INC.
