Power Assist Steering (SERVOTRONIC)

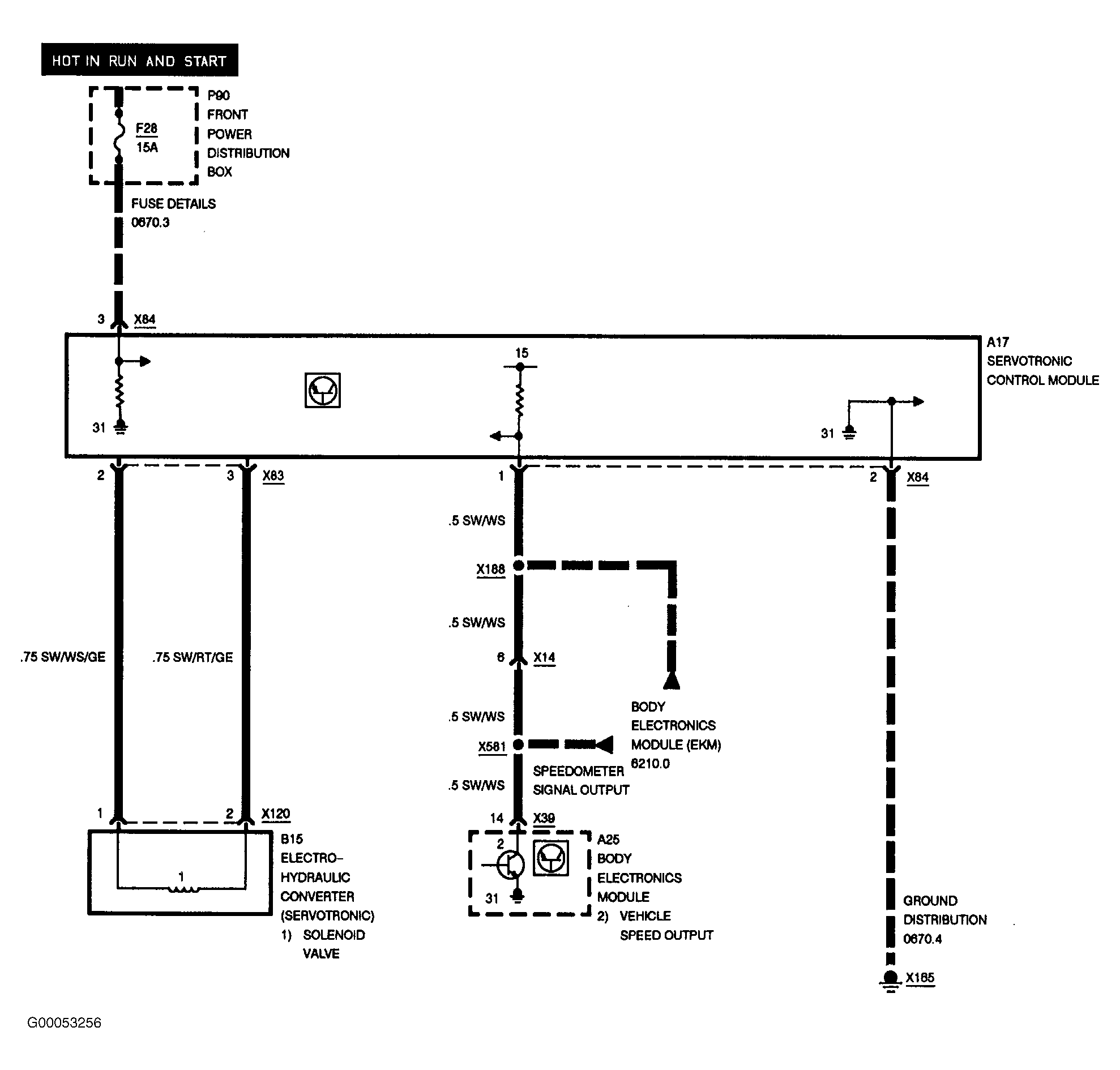

Fig 1: Power Assist Steering

G00053256

Courtesy of BMW OF NORTH AMERICA, INC.
