Wiring Diagrams - BMW 850 1991-92
>>
Park Ventilation With IHKA
Park Ventilation With IHKA

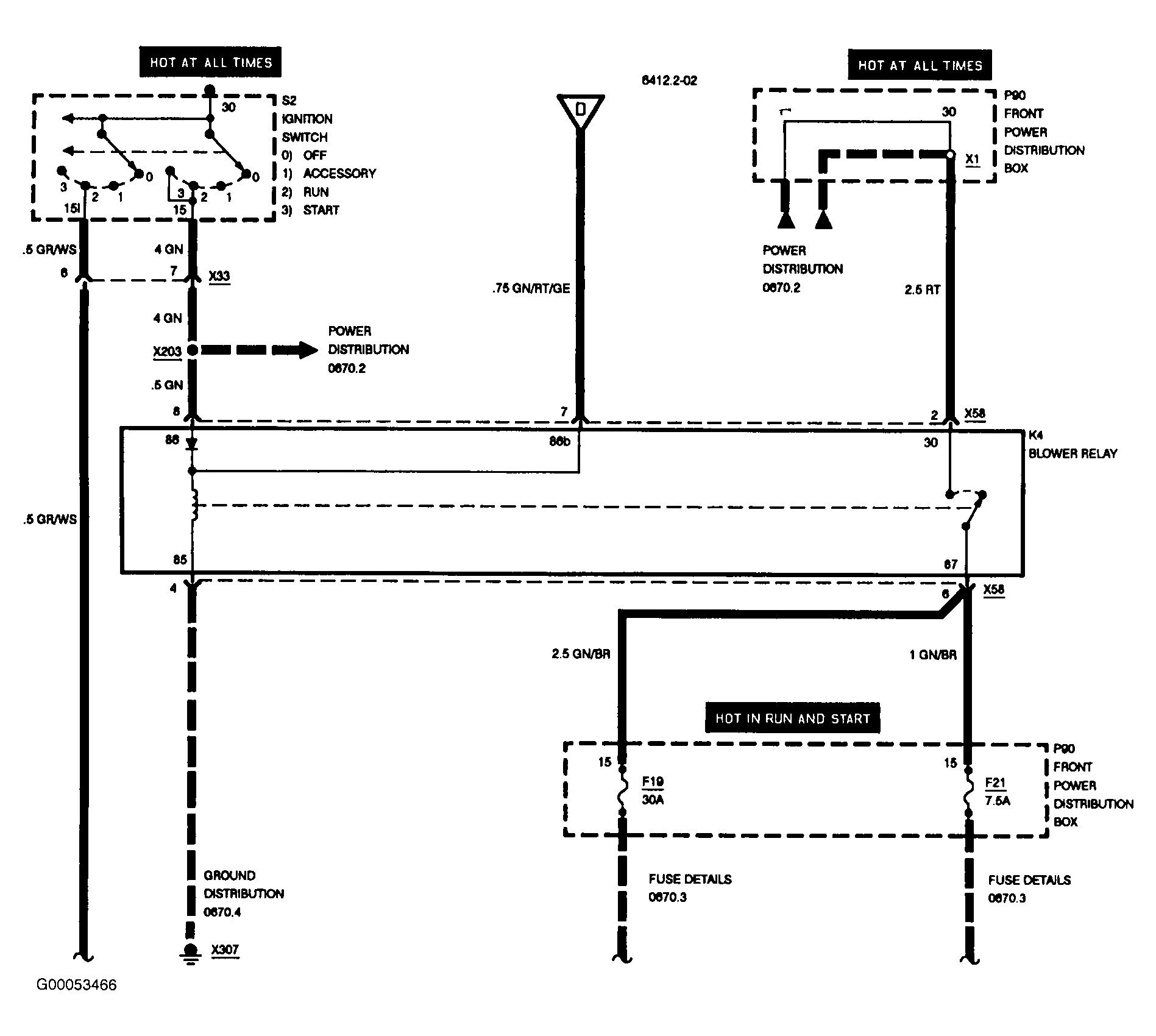

Fig 1: Park Ventilation With IHKA (1 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.

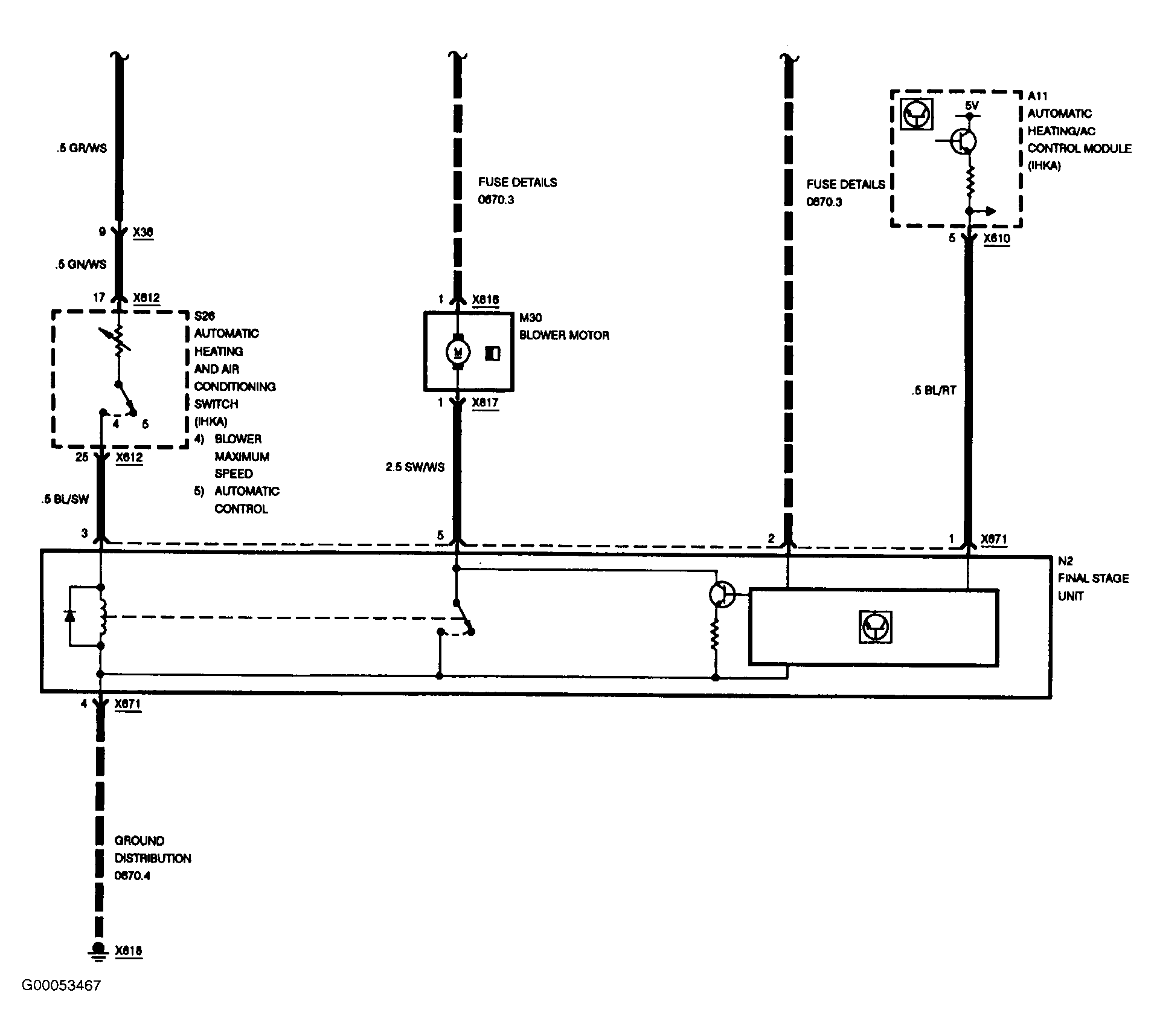

Fig 2: Park Ventilation With IHKA (2 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.

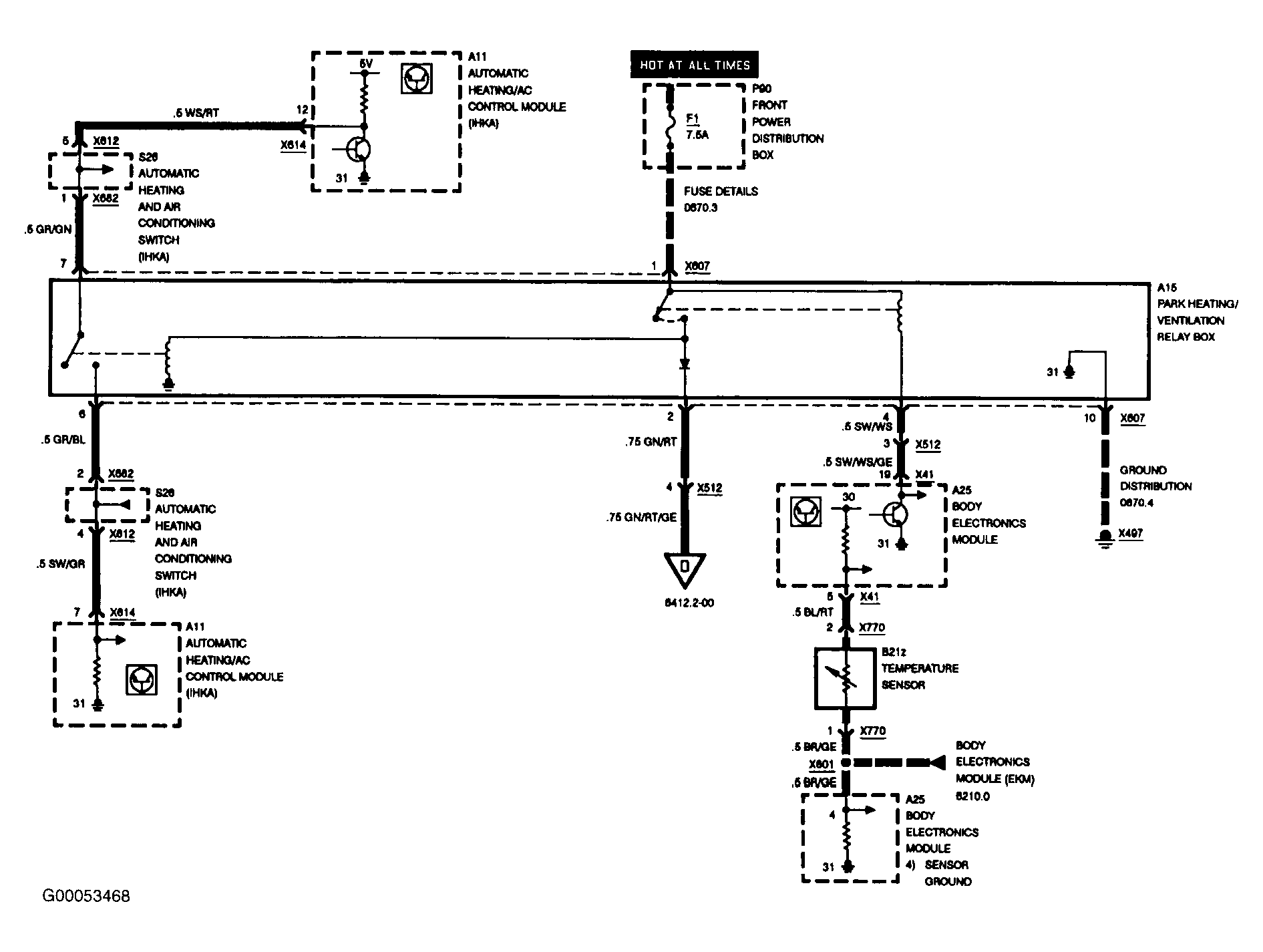

Fig 3: Park Ventilation With IHKA (3 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.
