Wiring Diagrams - BMW 850 1991-92
>>
Multi-Information Display (Mid)
Multi-Information Display (Mid)

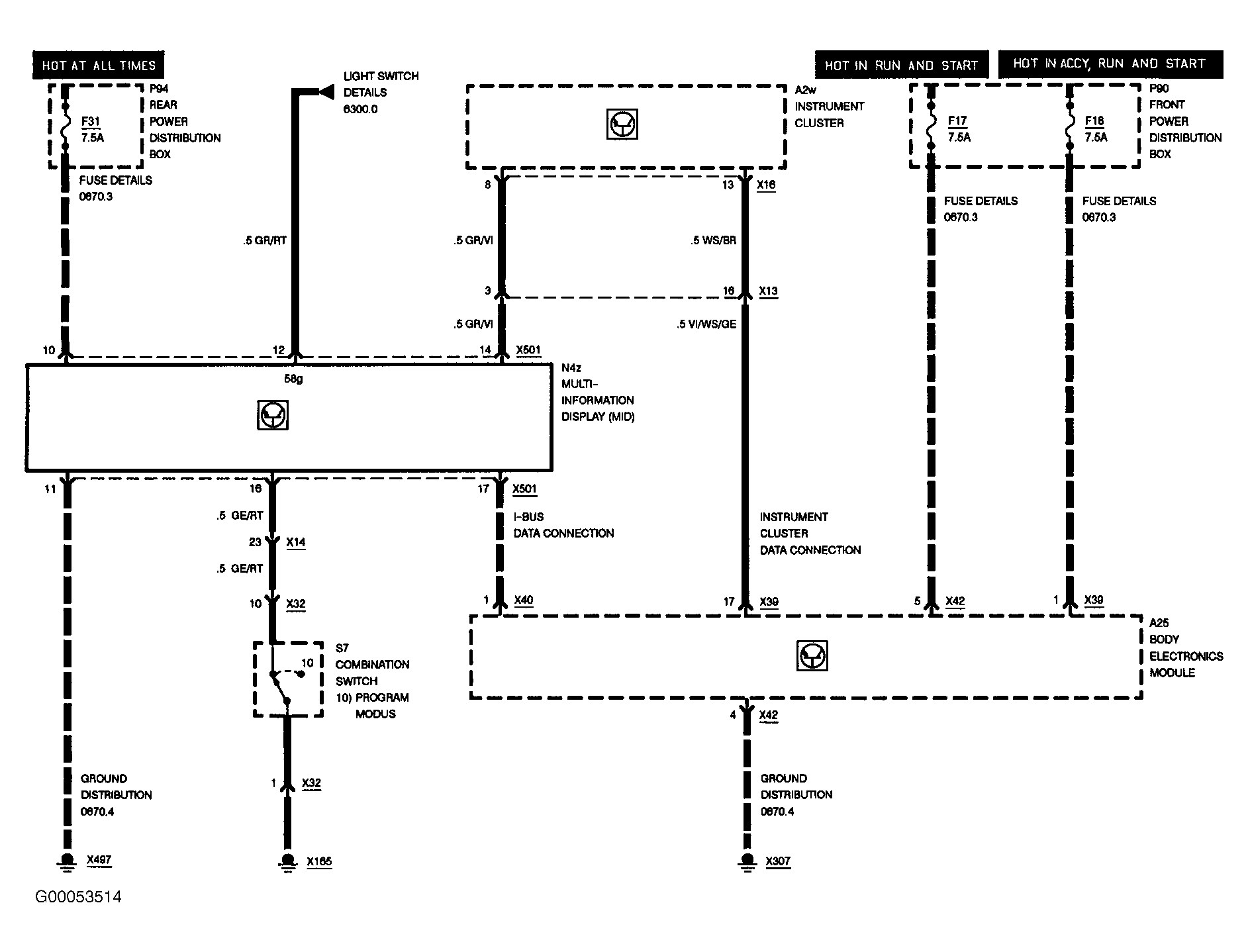

Fig 1: Multi-Information Display
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
