Wiring Diagrams - BMW 850 1991-92
>>
Lumbar Support
Lumbar Support

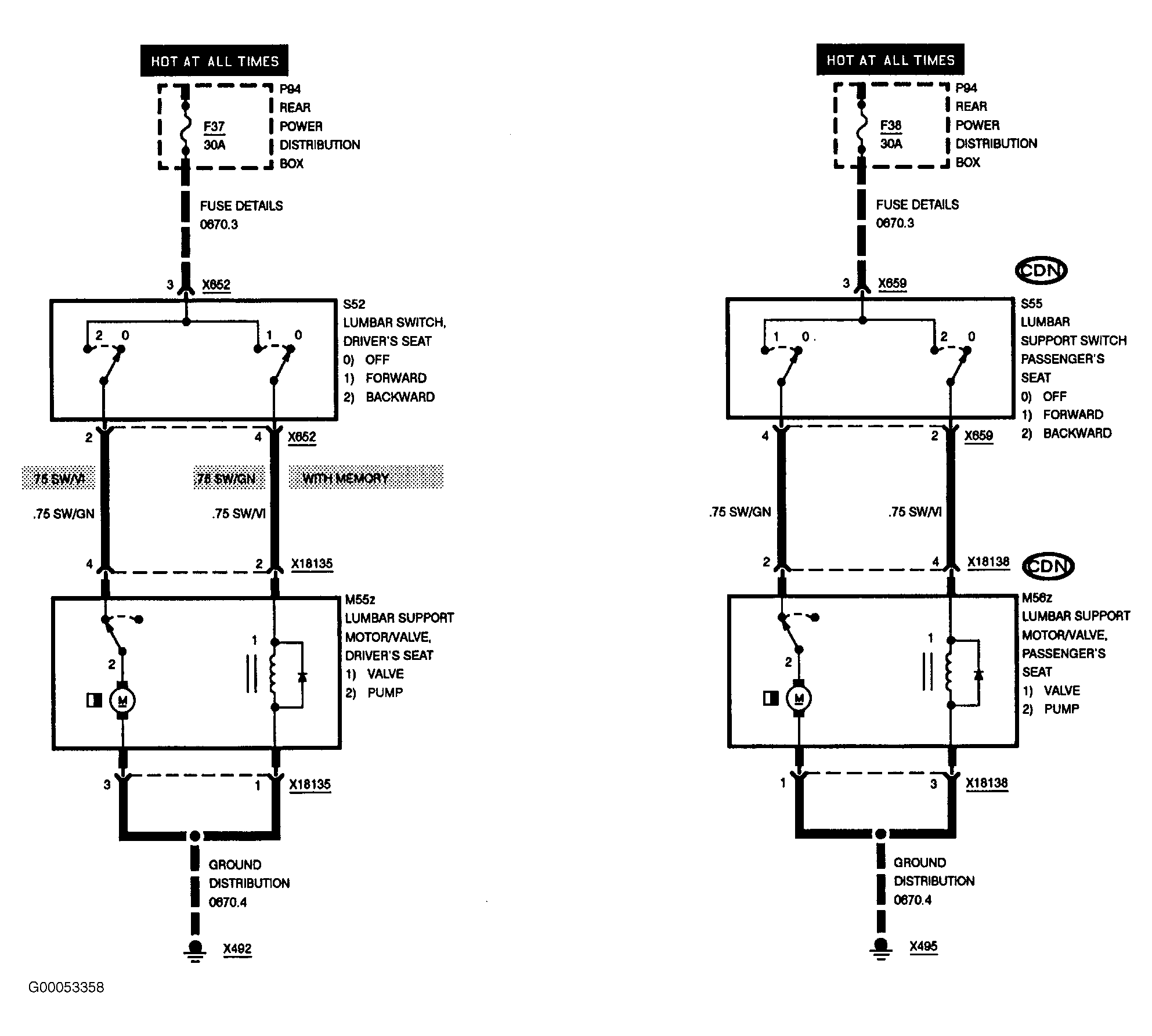

Fig 1: Lumbar Support
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
