ZKE System Interior Lights (IB): Inputs

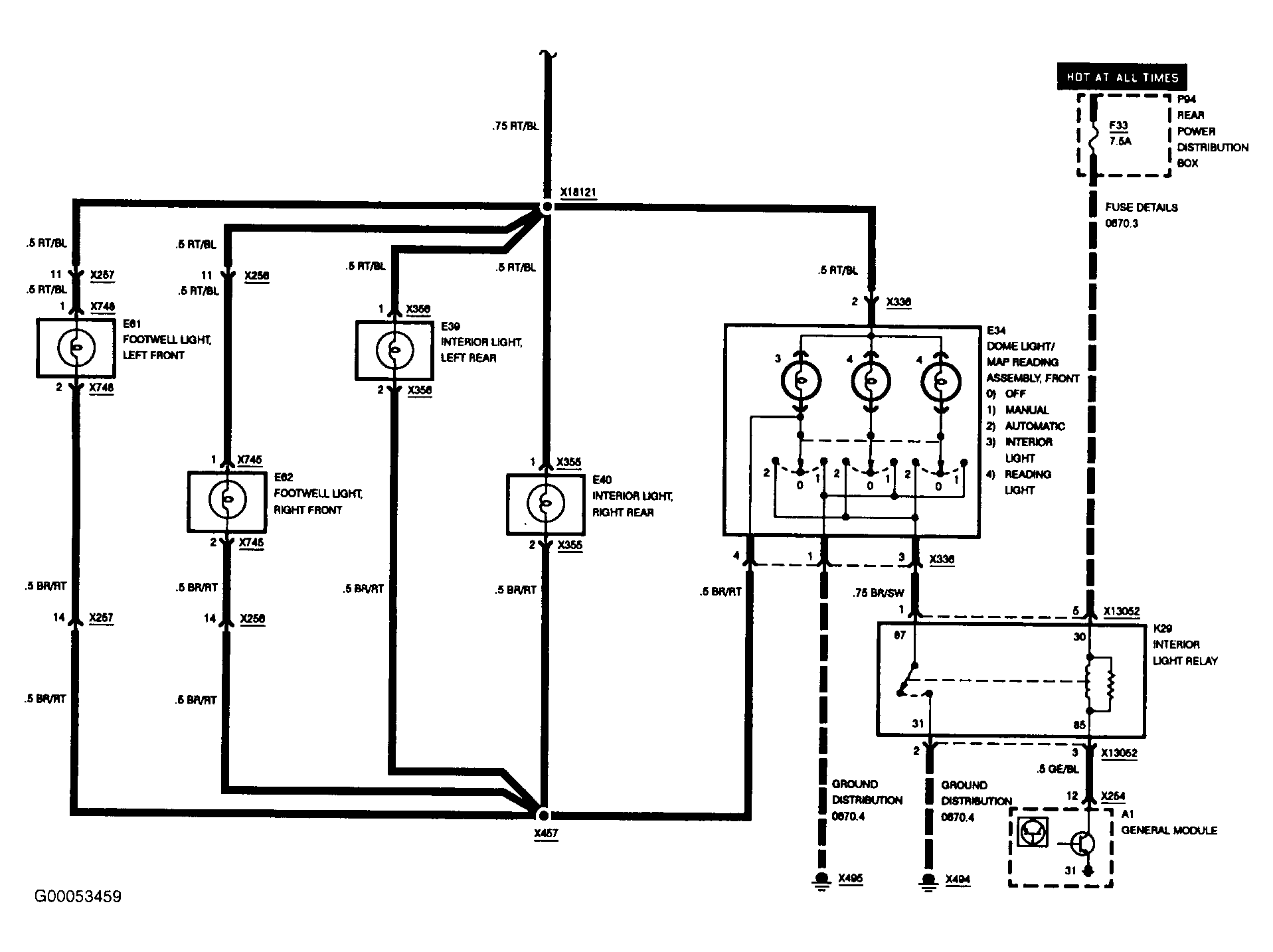

Fig 1: Interior Lights - Inputs (1 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

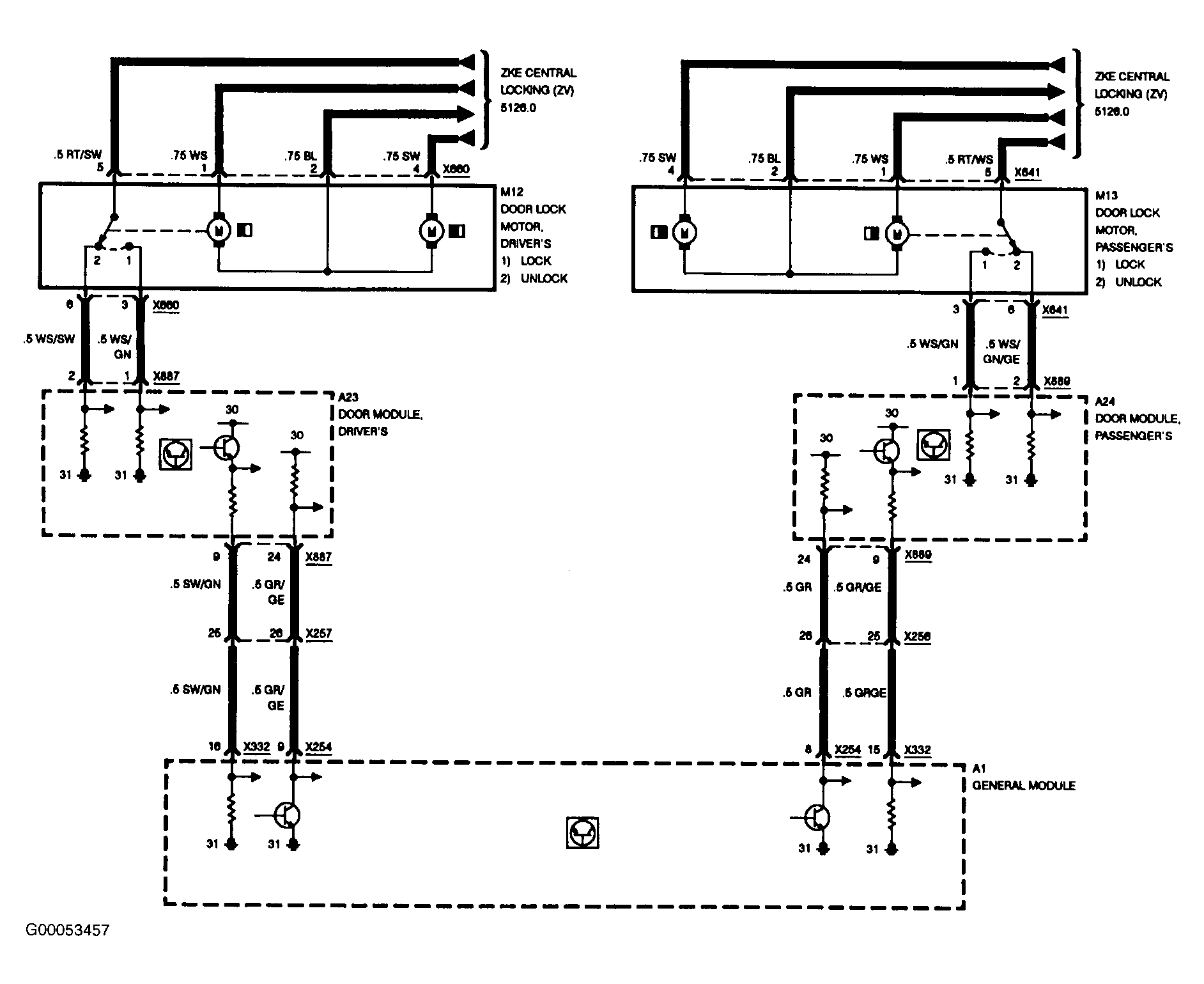

Fig 2: Interior Lights - Inputs (2 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

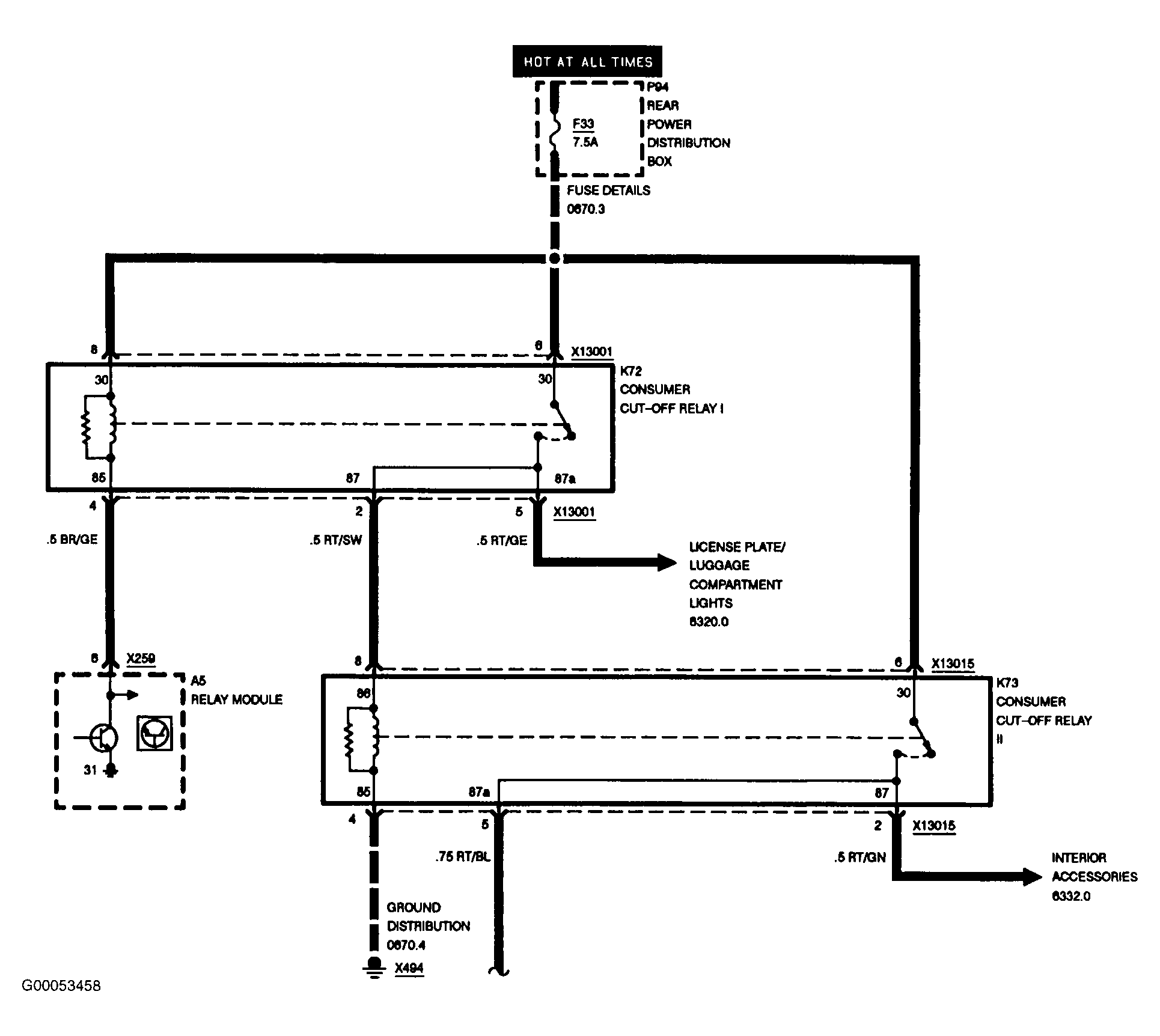

Fig 3: Interior Lights - Inputs (3 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

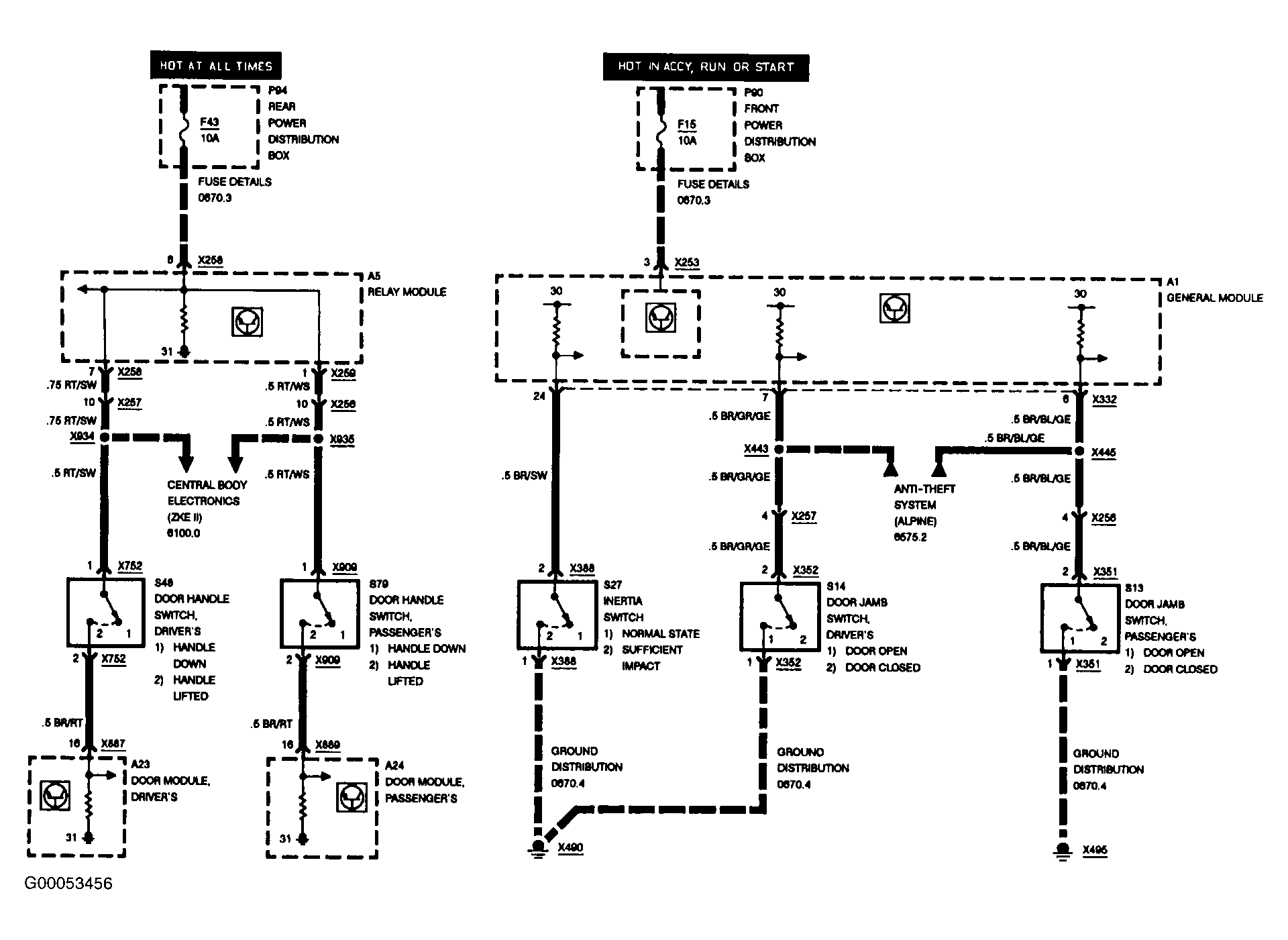

Fig 4: Interior Lights - Inputs (4 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.
