Turn/Hazard Lights

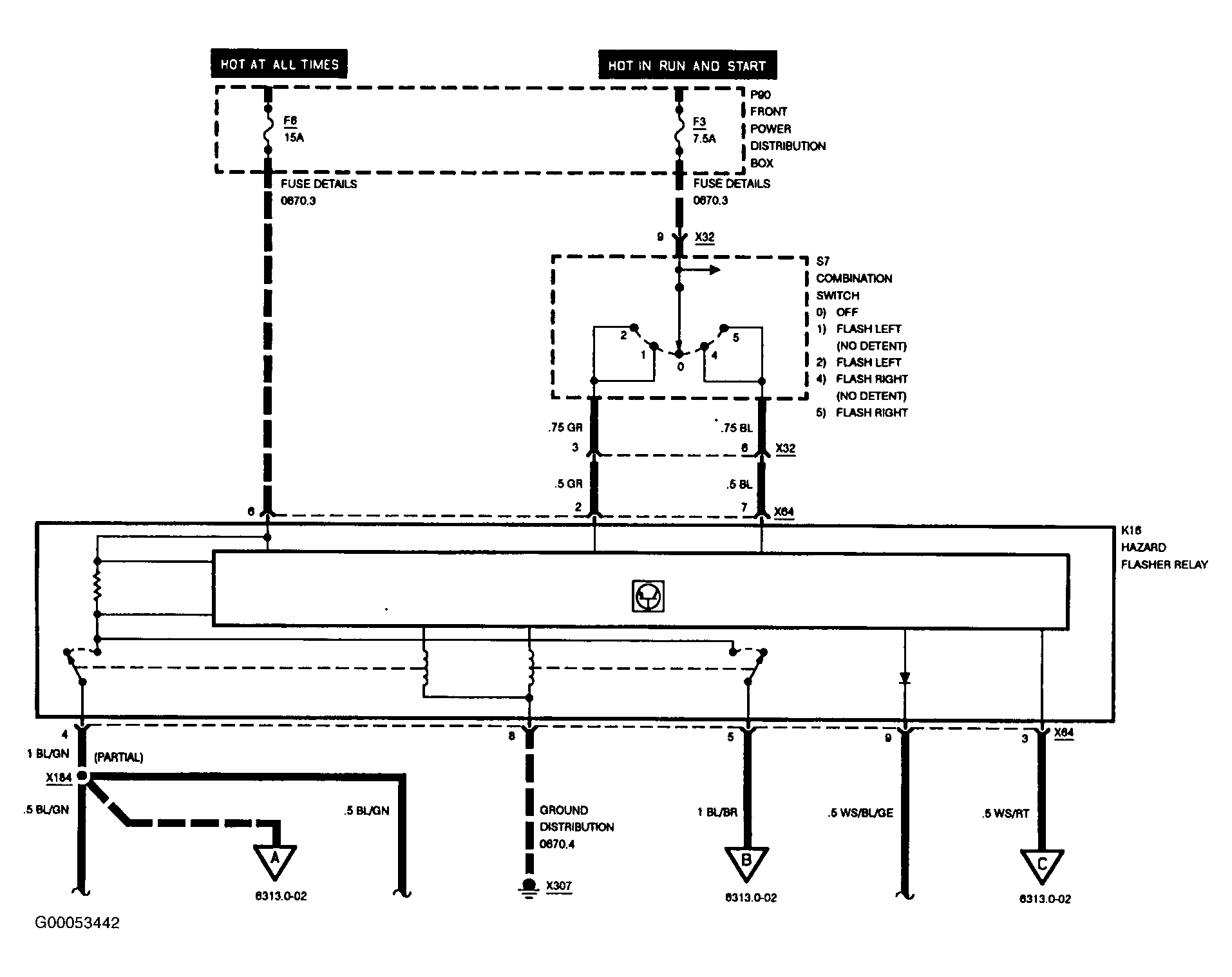

Fig 1: Turn/Hazard Lights (1 Of 3)
G00053442Courtesy of BMW OF NORTH AMERICA, INC.

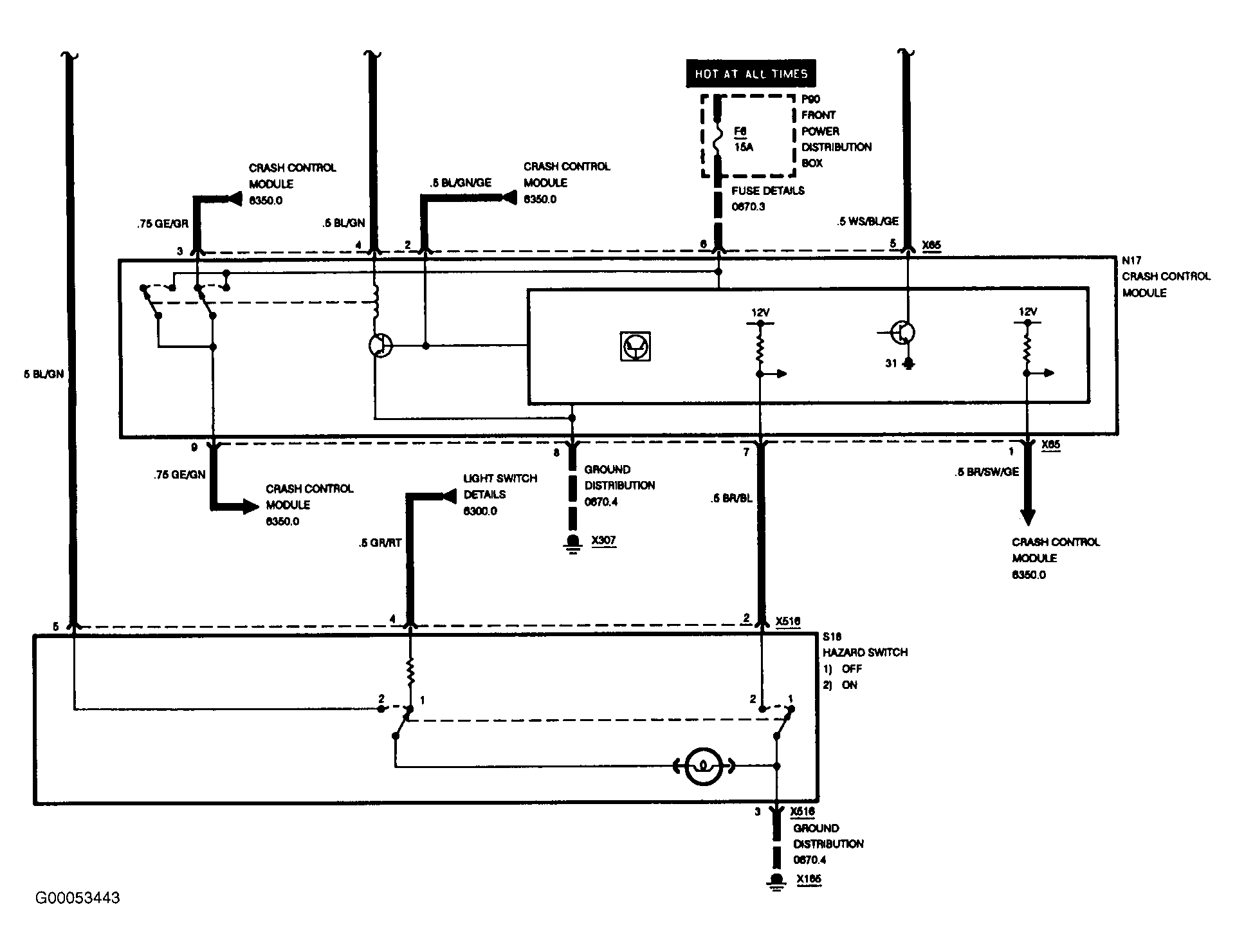

Fig 2: Turn/Hazard Lights (2 Of 3)
G00053443Courtesy of BMW OF NORTH AMERICA, INC.

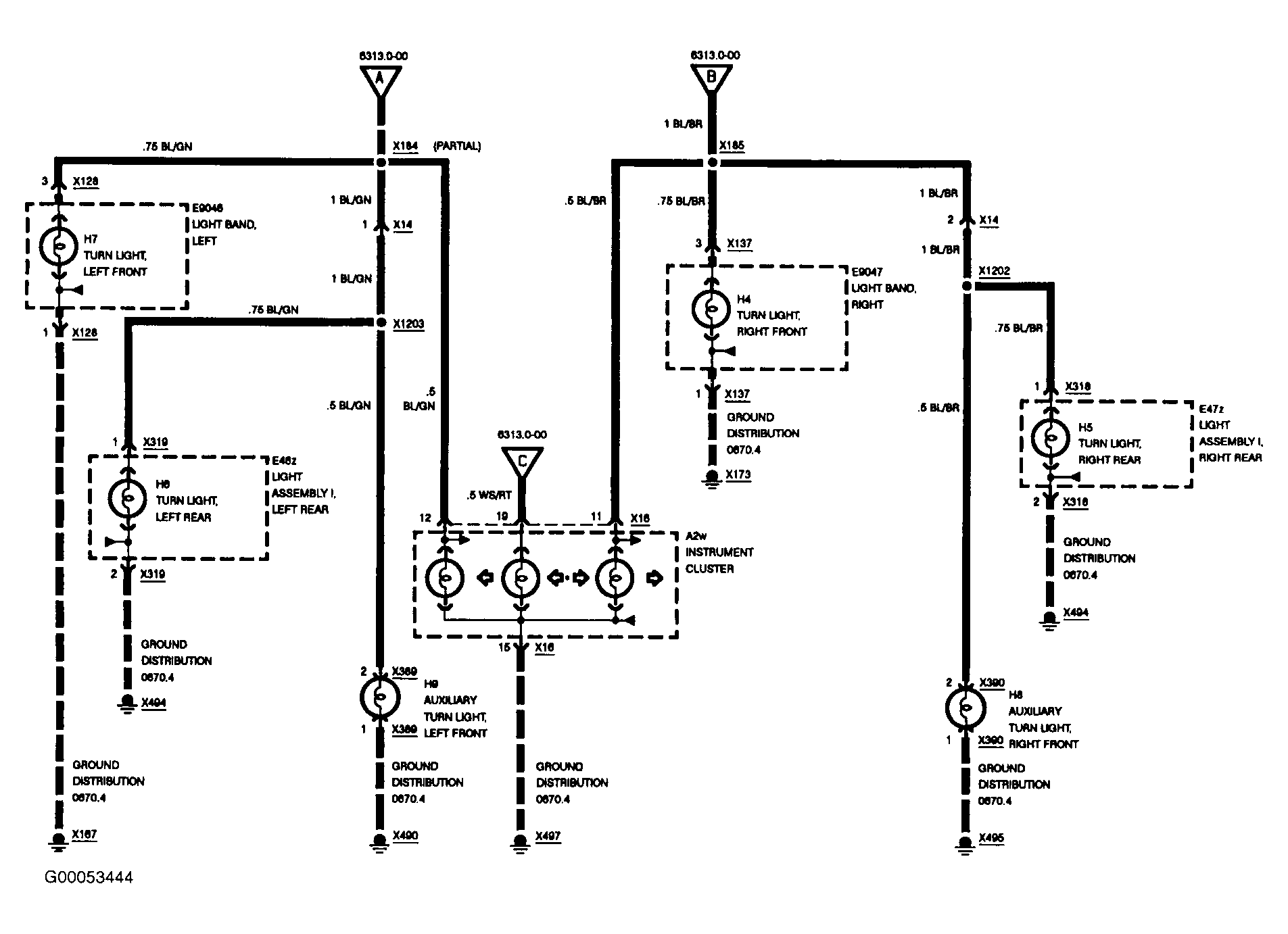

Fig 3: Turn/Hazard Lights (3 Of 3)
G00053444Courtesy of BMW OF NORTH AMERICA, INC.
