Wiring Diagrams - BMW 850 1991-92
>>
Lighting Systems
>>
Park/Tail/UNDERHOOD Lights
Park/Tail/UNDERHOOD Lights

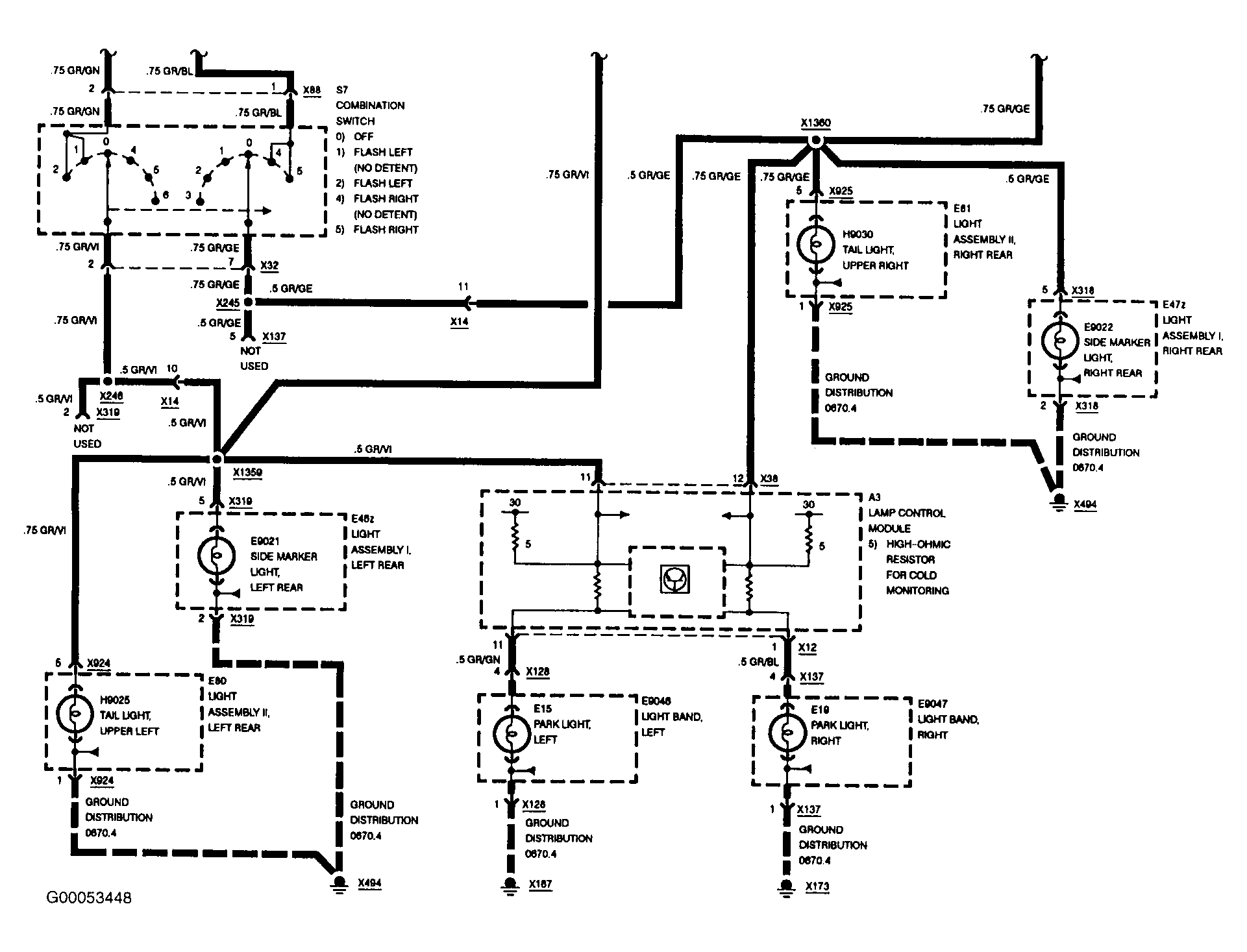

Fig 1: Park/Tail/Underhood Lights (1 Of 5)
Courtesy of BMW OF NORTH AMERICA, INC.

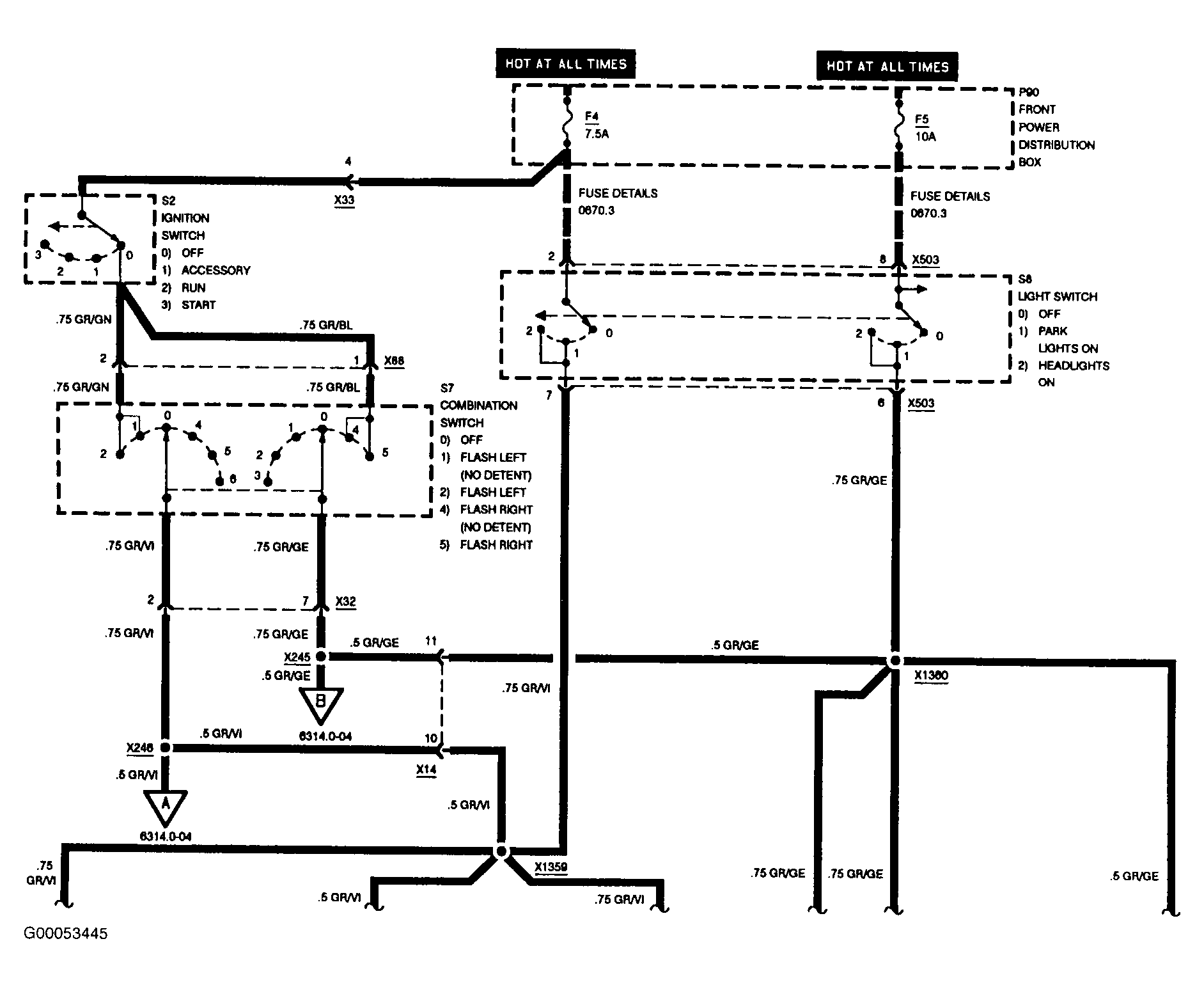

Fig 2: Park/Tail/Underhood Lights (2 Of 5)
Courtesy of BMW OF NORTH AMERICA, INC.

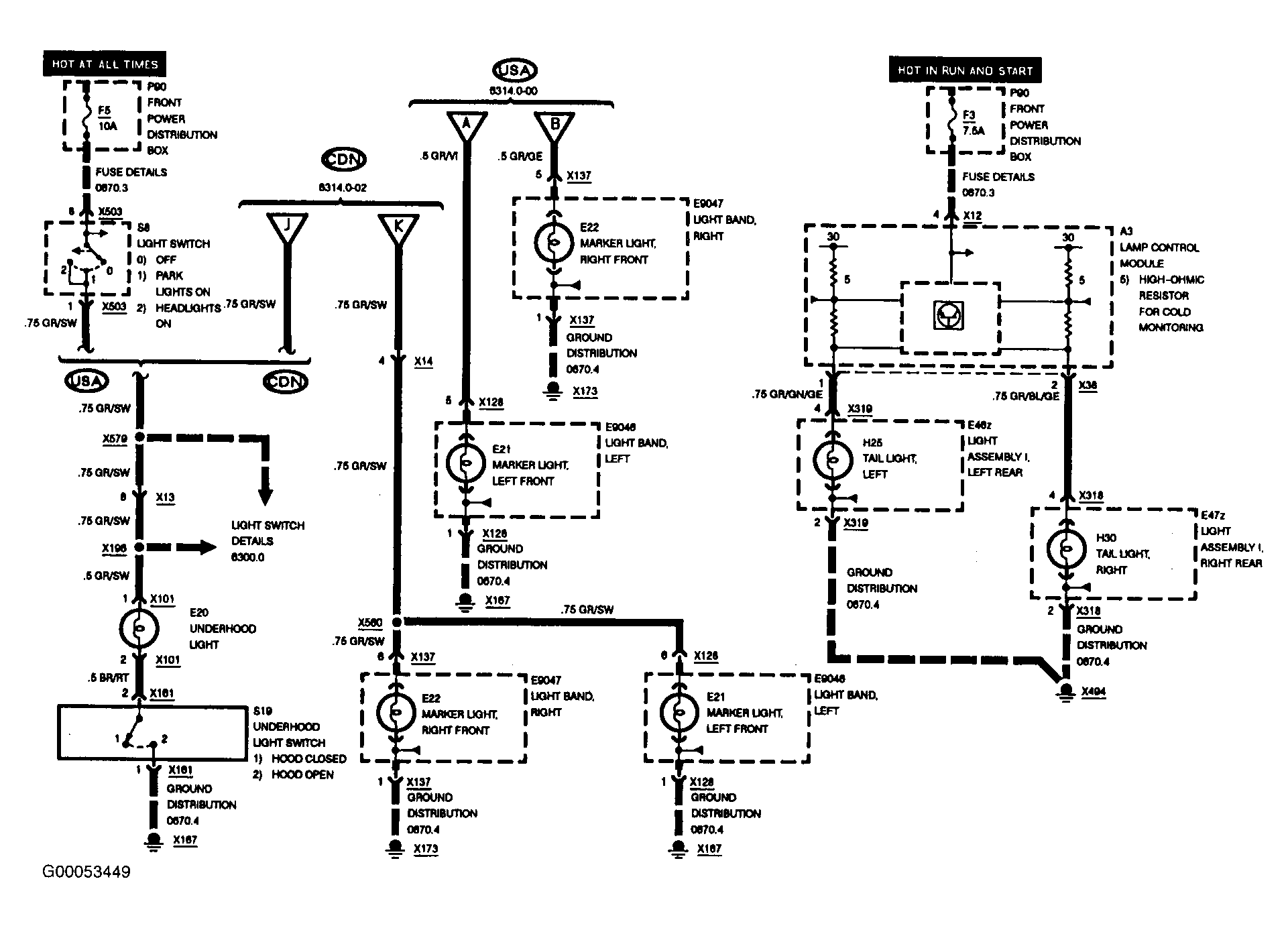

Fig 3: Park/Tail/Underhood Lights (3 Of 5)
Courtesy of BMW OF NORTH AMERICA, INC.

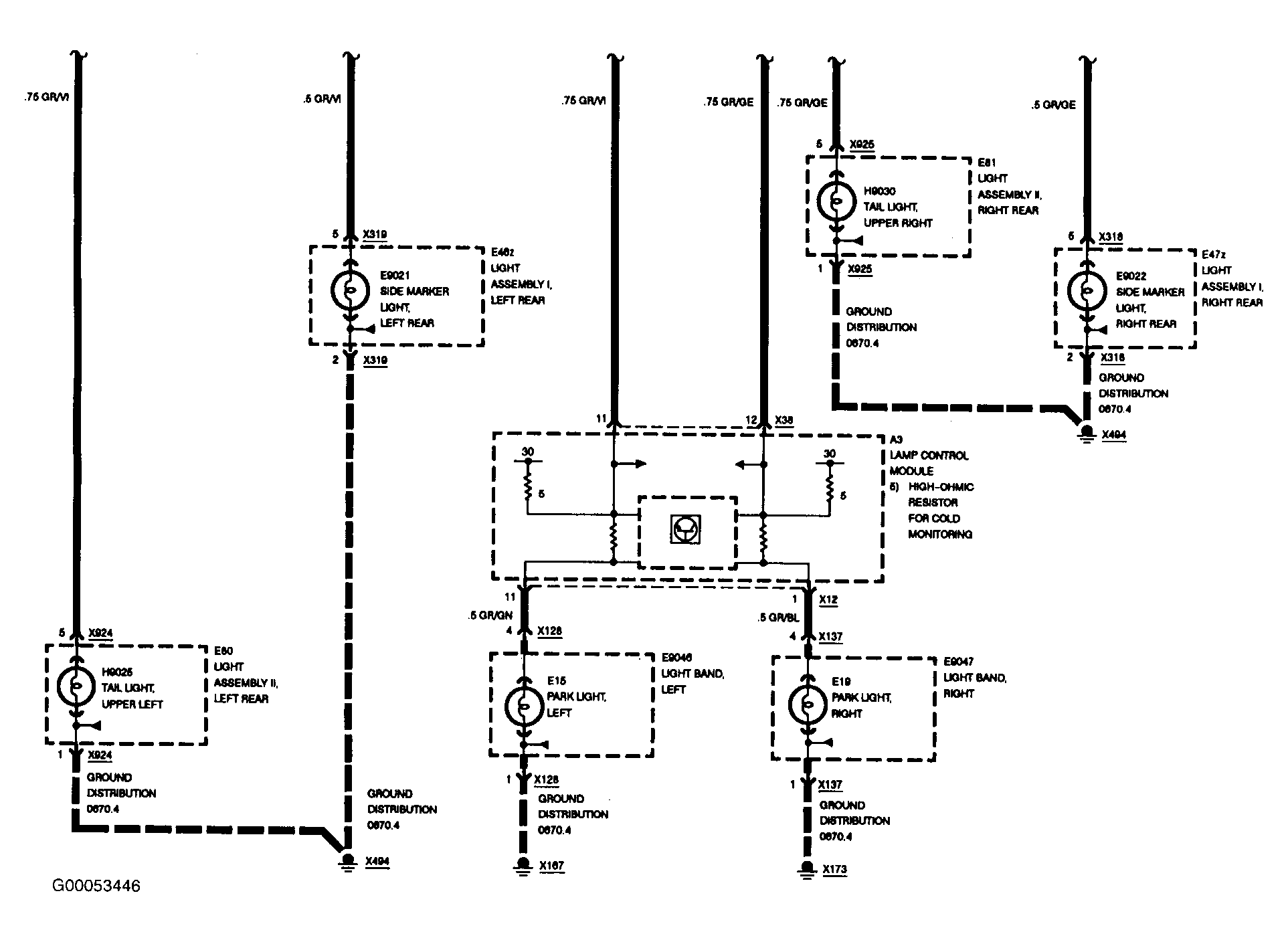

Fig 4: Park/Tail/Underhood Lights (4 Of 5)
Courtesy of BMW OF NORTH AMERICA, INC.

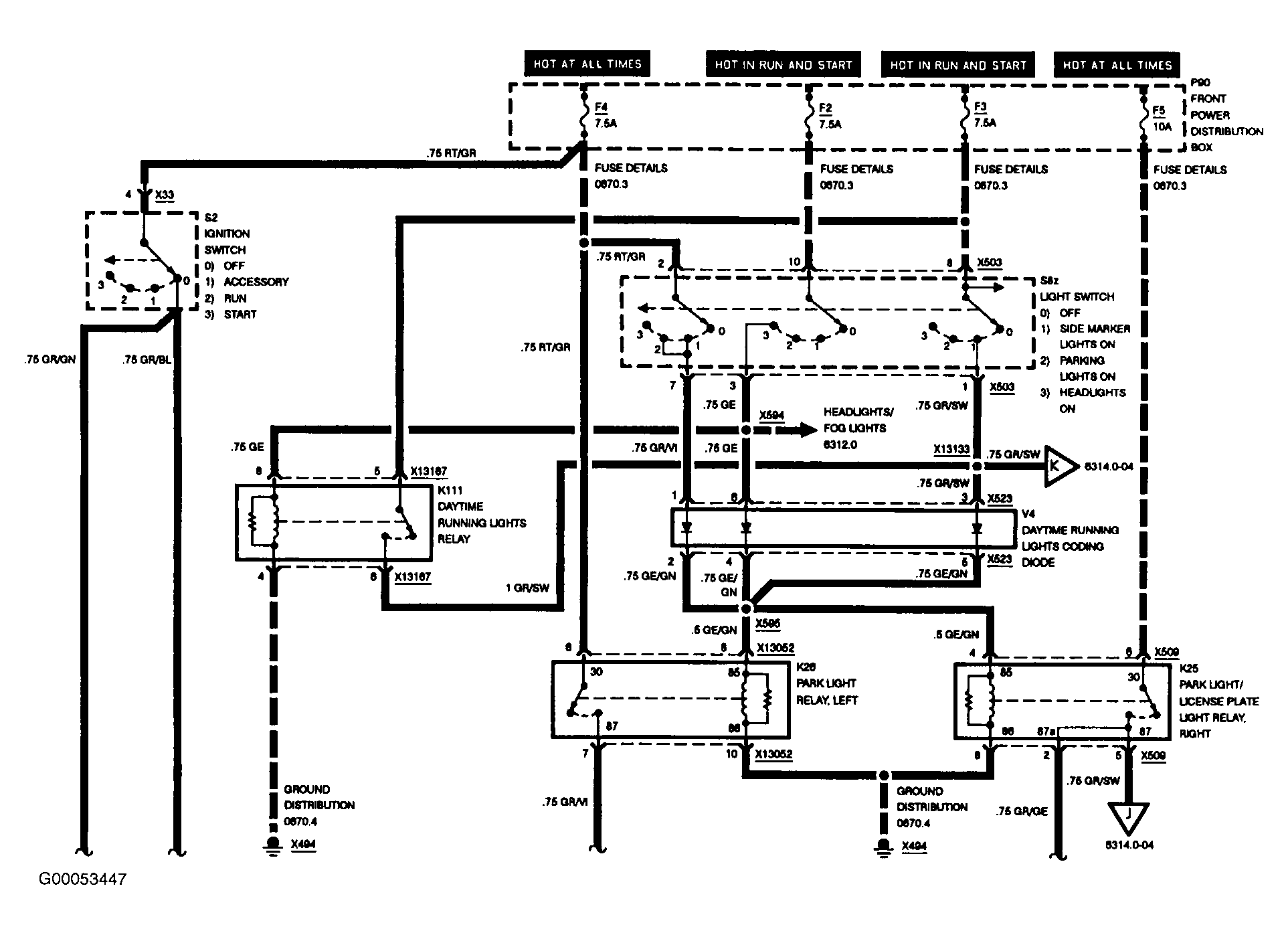

Fig 5: Park/Tail/Underhood Lights (5 Of 5)
Courtesy of BMW OF NORTH AMERICA, INC.
