License Plate Lights

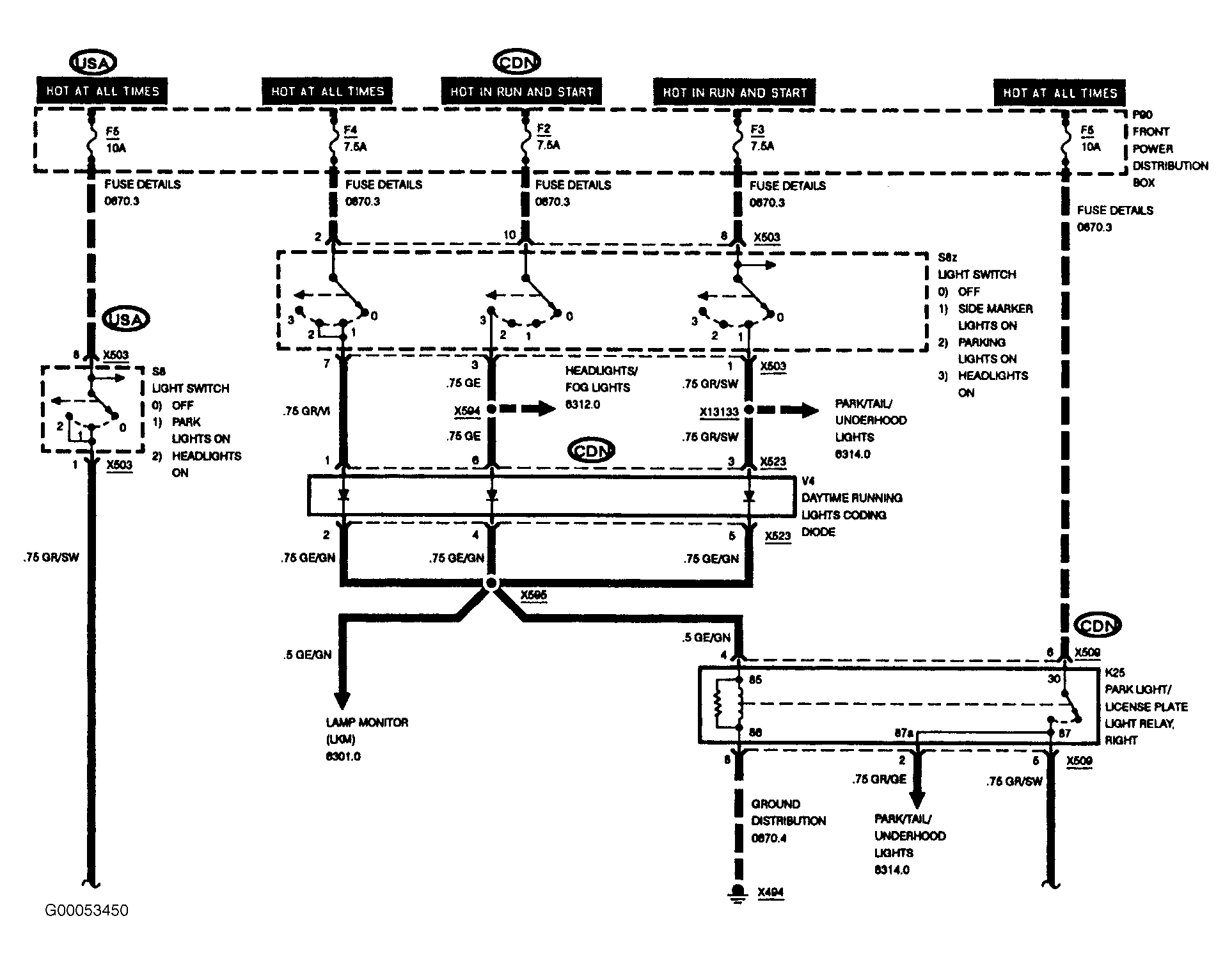

Fig 1: License Plate Lights (1 Of 4)
G00053450Courtesy of BMW OF NORTH AMERICA, INC.

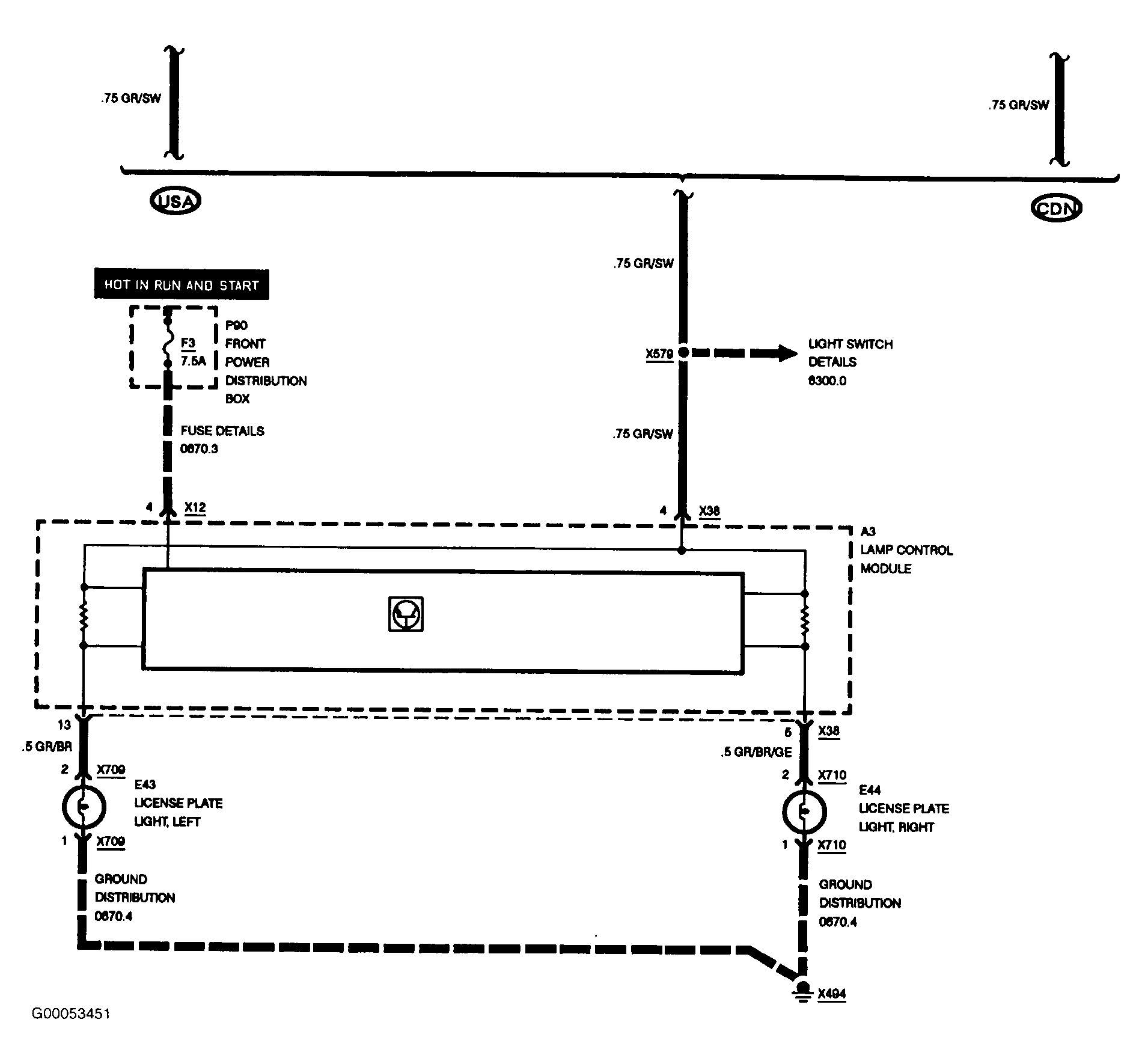

Fig 2: License Plate Lights (2 Of 4)
G00053451Courtesy of BMW OF NORTH AMERICA, INC.

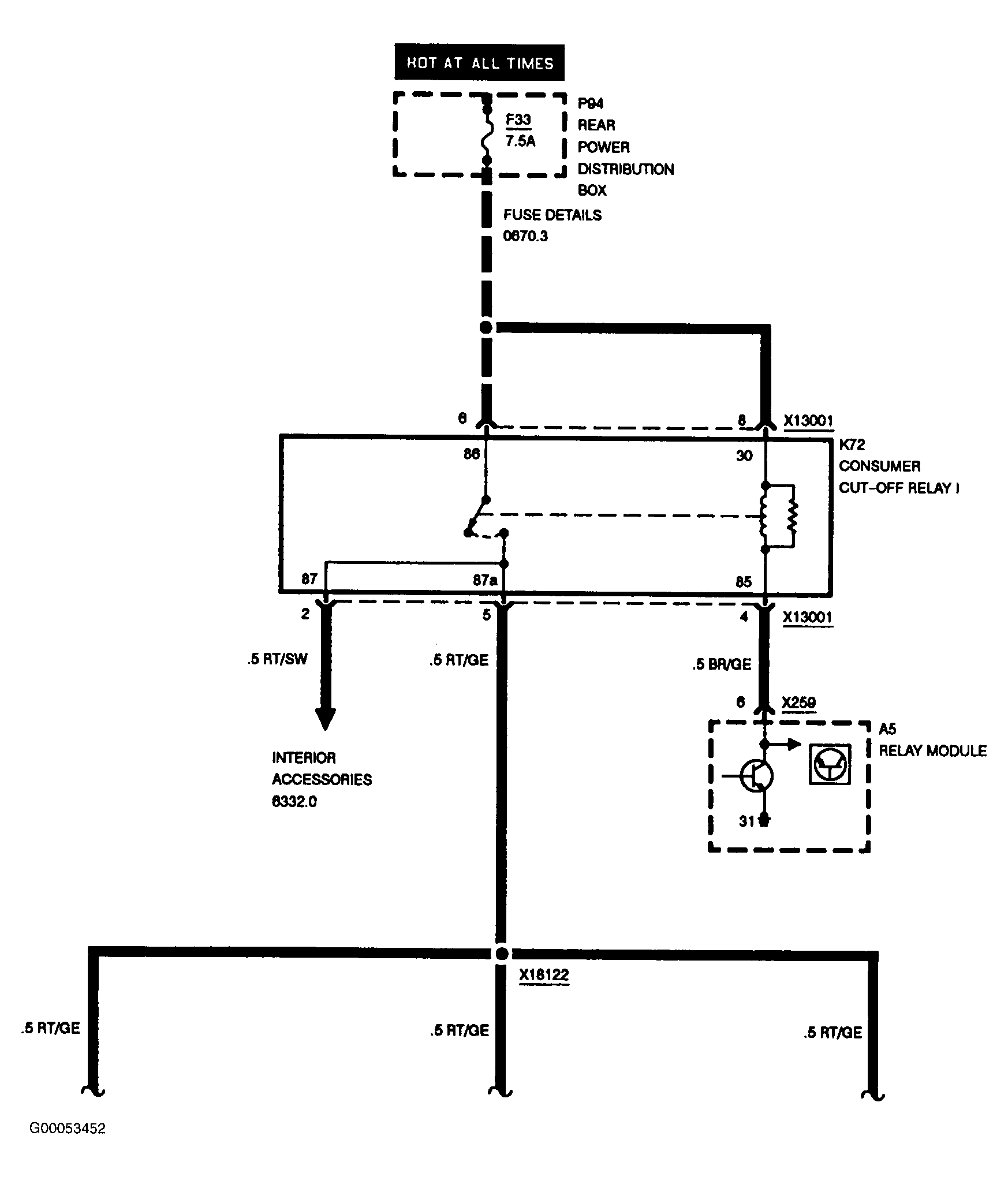

Fig 3: License Plate Lights (3 Of 4)
G00053452Courtesy of BMW OF NORTH AMERICA, INC.

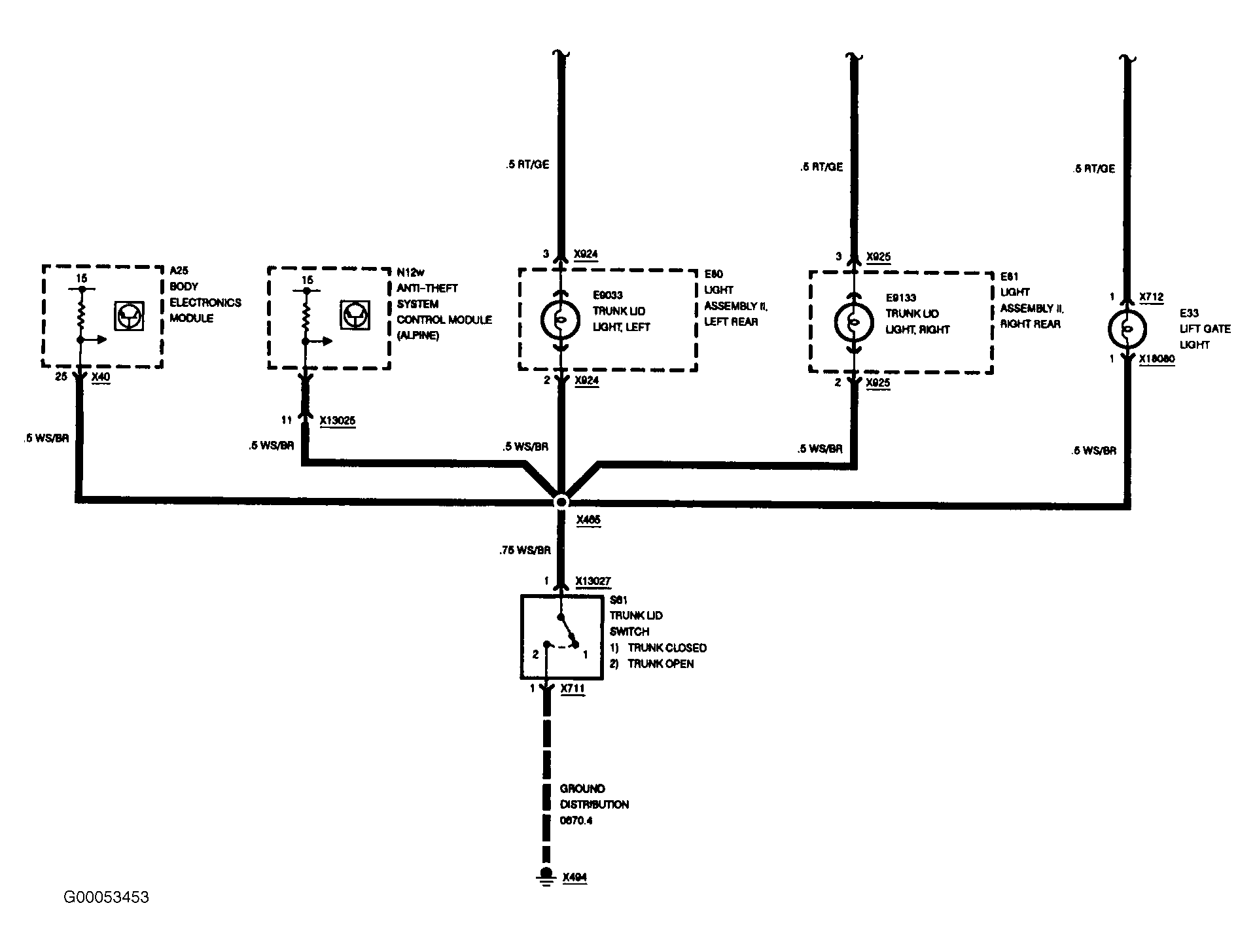

Fig 4: License Plate Lights (4 Of 4)
G00053453Courtesy of BMW OF NORTH AMERICA, INC.
