High Beam & Flasher Lights

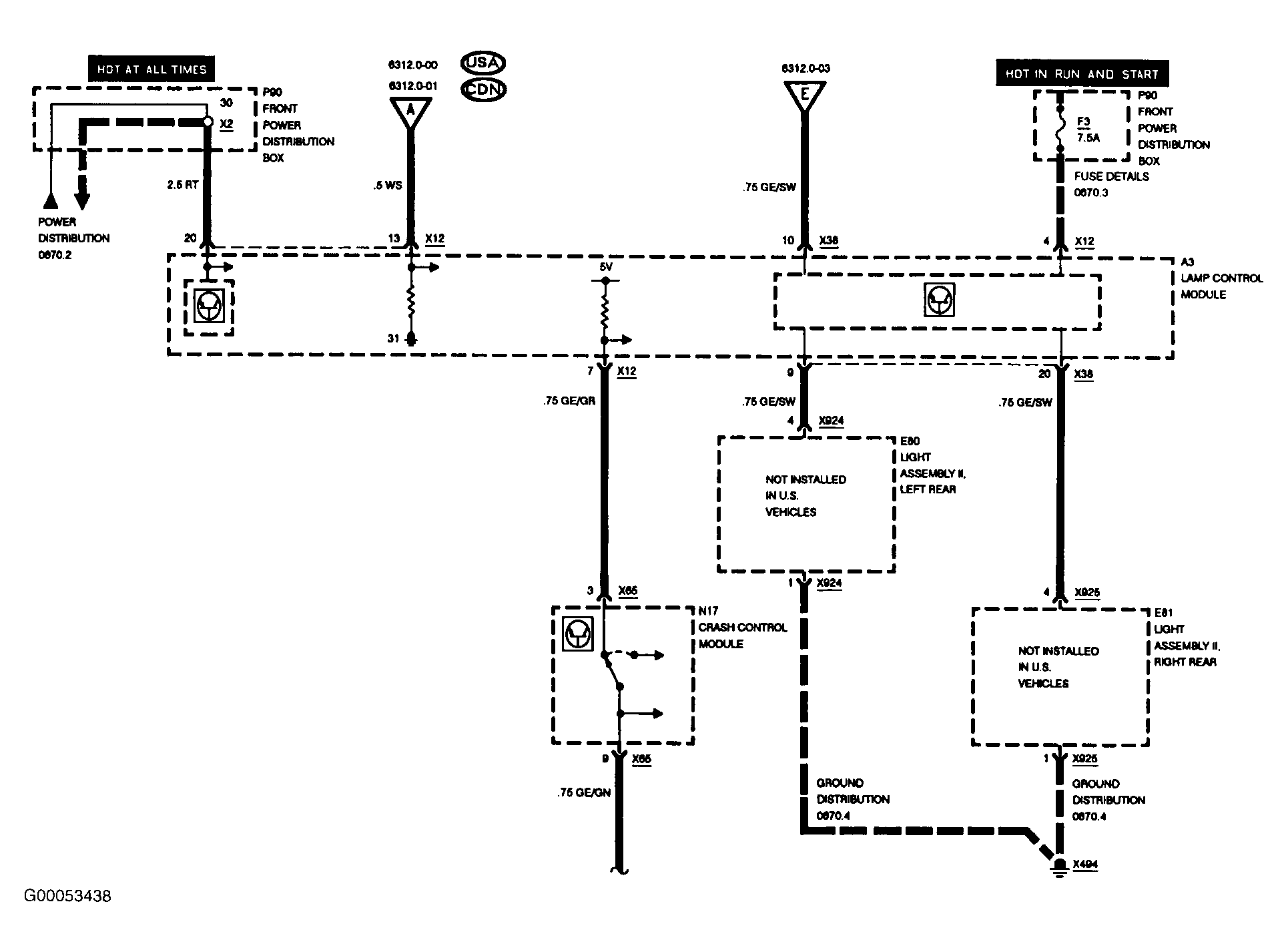

Fig 1: High Beam & Flasher Lights (1 Of 2)

G00053438

Courtesy of BMW OF NORTH AMERICA, INC.

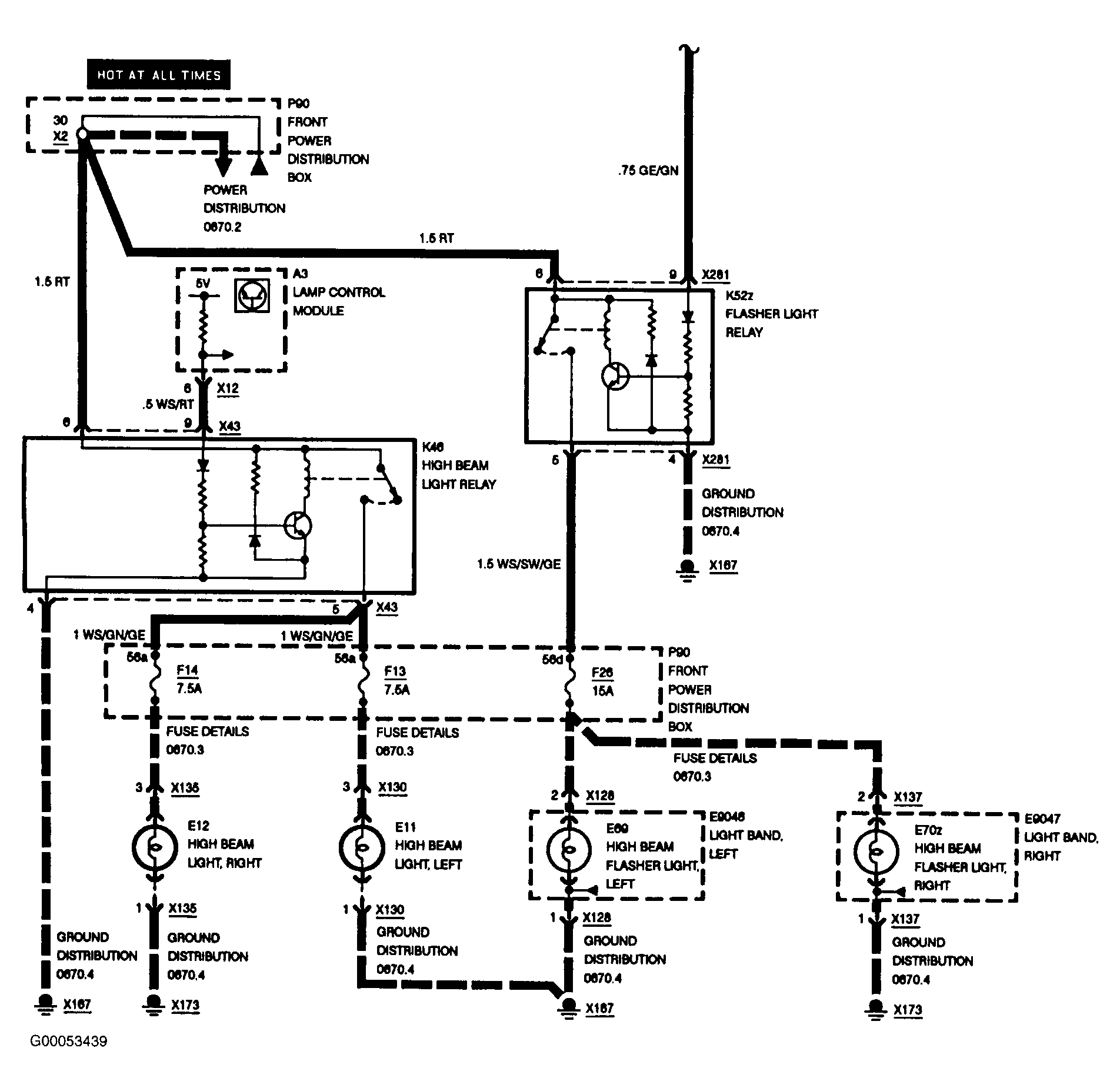

Fig 2: High Beam & Flasher Lights (2 Of 2)

G00053439

Courtesy of BMW OF NORTH AMERICA, INC.
