Headlights & Fog Lights: Headlights

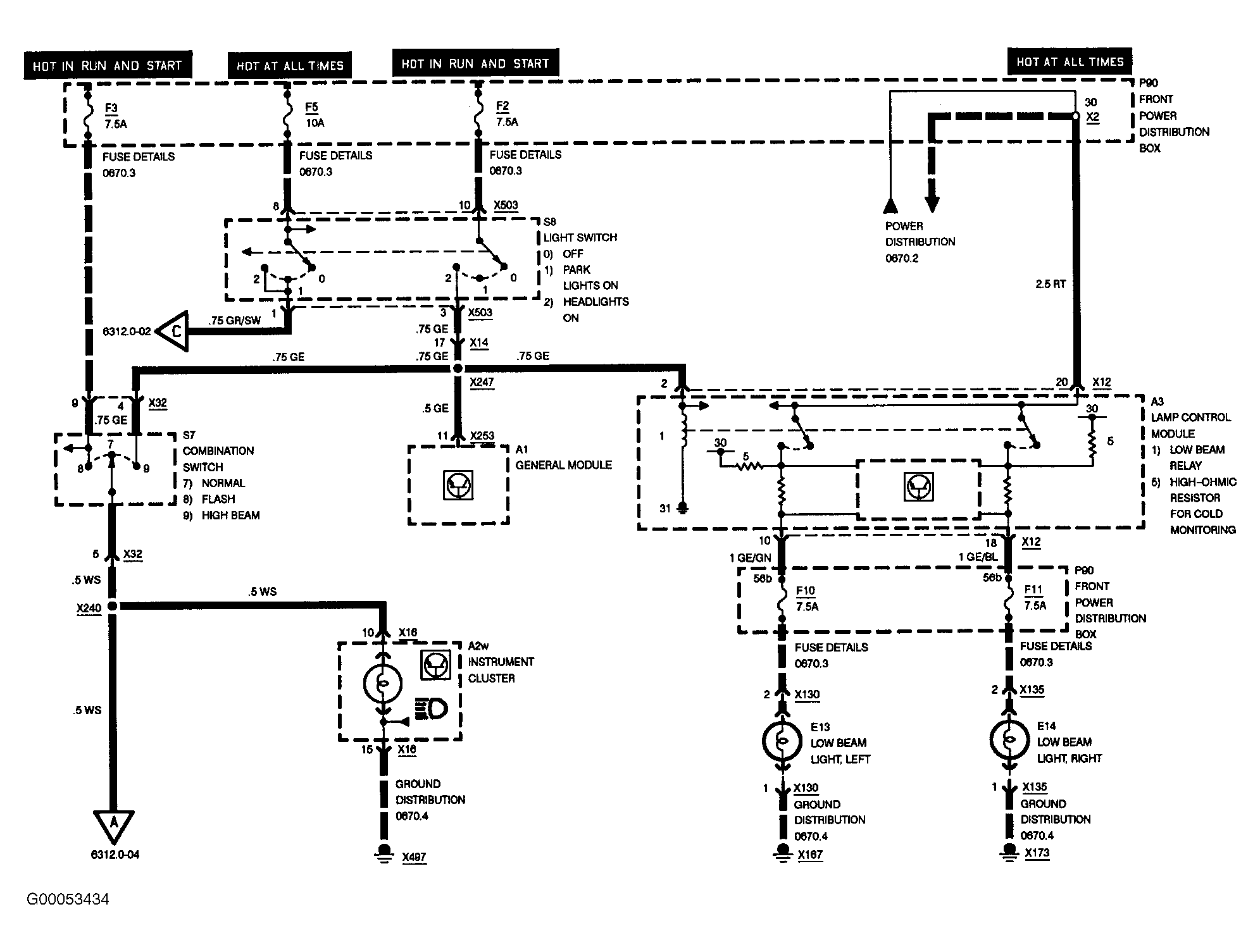

Fig 1: Headlights (1 Of 2)

G00053434

Courtesy of BMW OF NORTH AMERICA, INC.

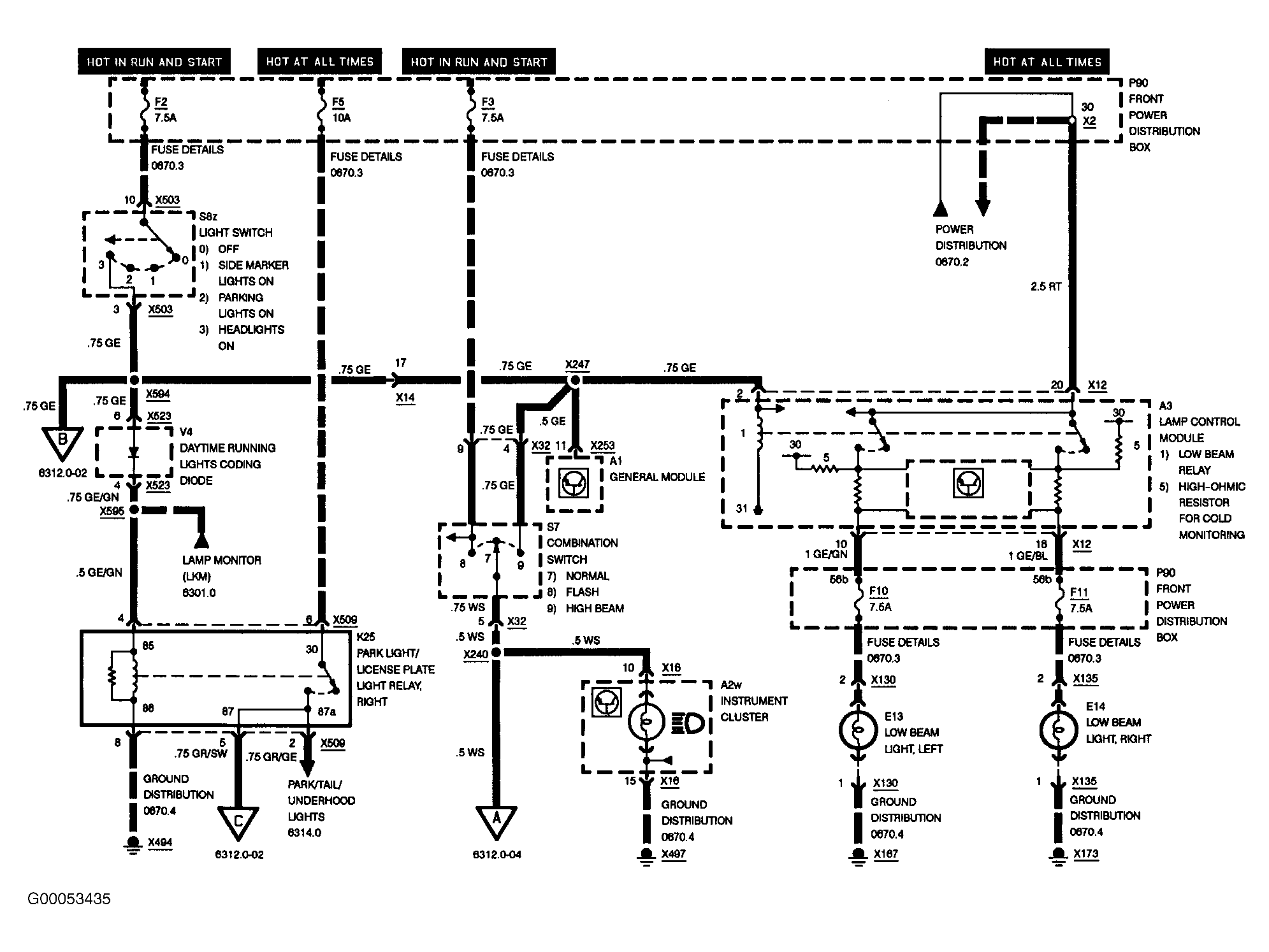

Fig 2: Headlights (2 Of 2)

G00053435

Courtesy of BMW OF NORTH AMERICA, INC.
