Front Fog Lights

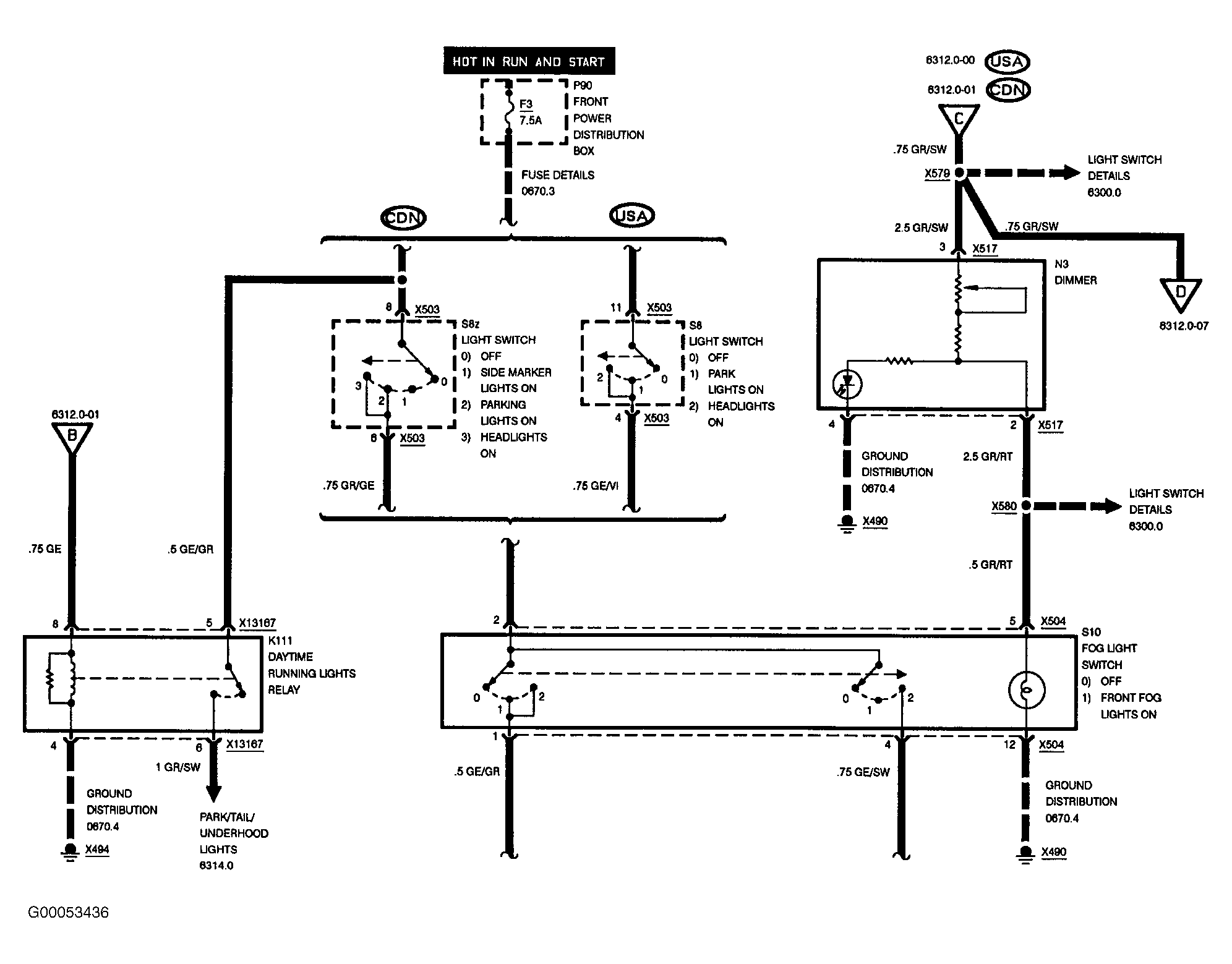

Fig 1: Front Fog Lights (1 Of 2)

G00053436

Courtesy of BMW OF NORTH AMERICA, INC.

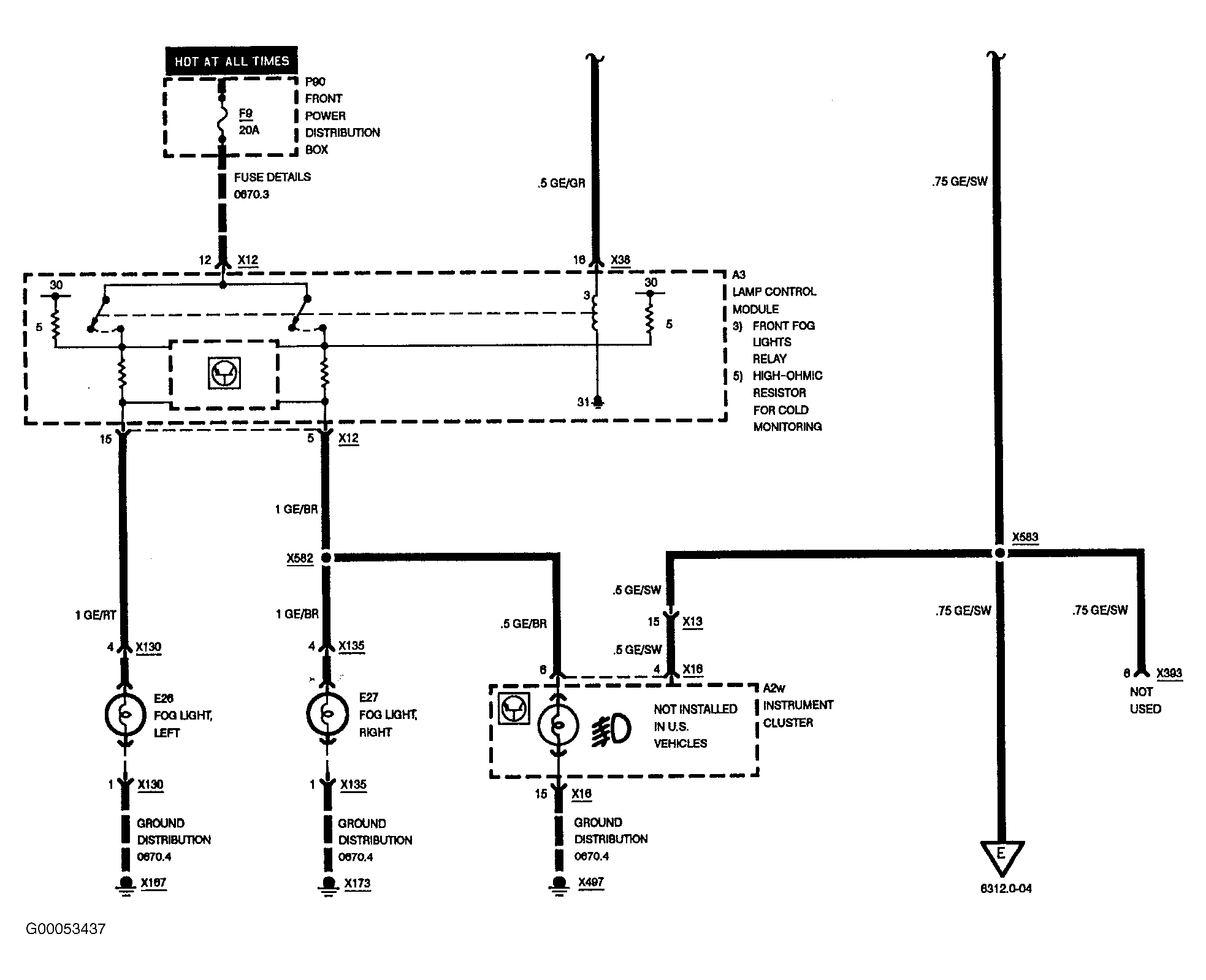

Fig 2: Front Fog Lights (2 Of 2)

G00053437

Courtesy of BMW OF NORTH AMERICA, INC.
