Wiring Diagrams - BMW 850 1991-92
>>
Lamp Monitor System (LKM)
>>
Pin Assignments
Pin Assignments

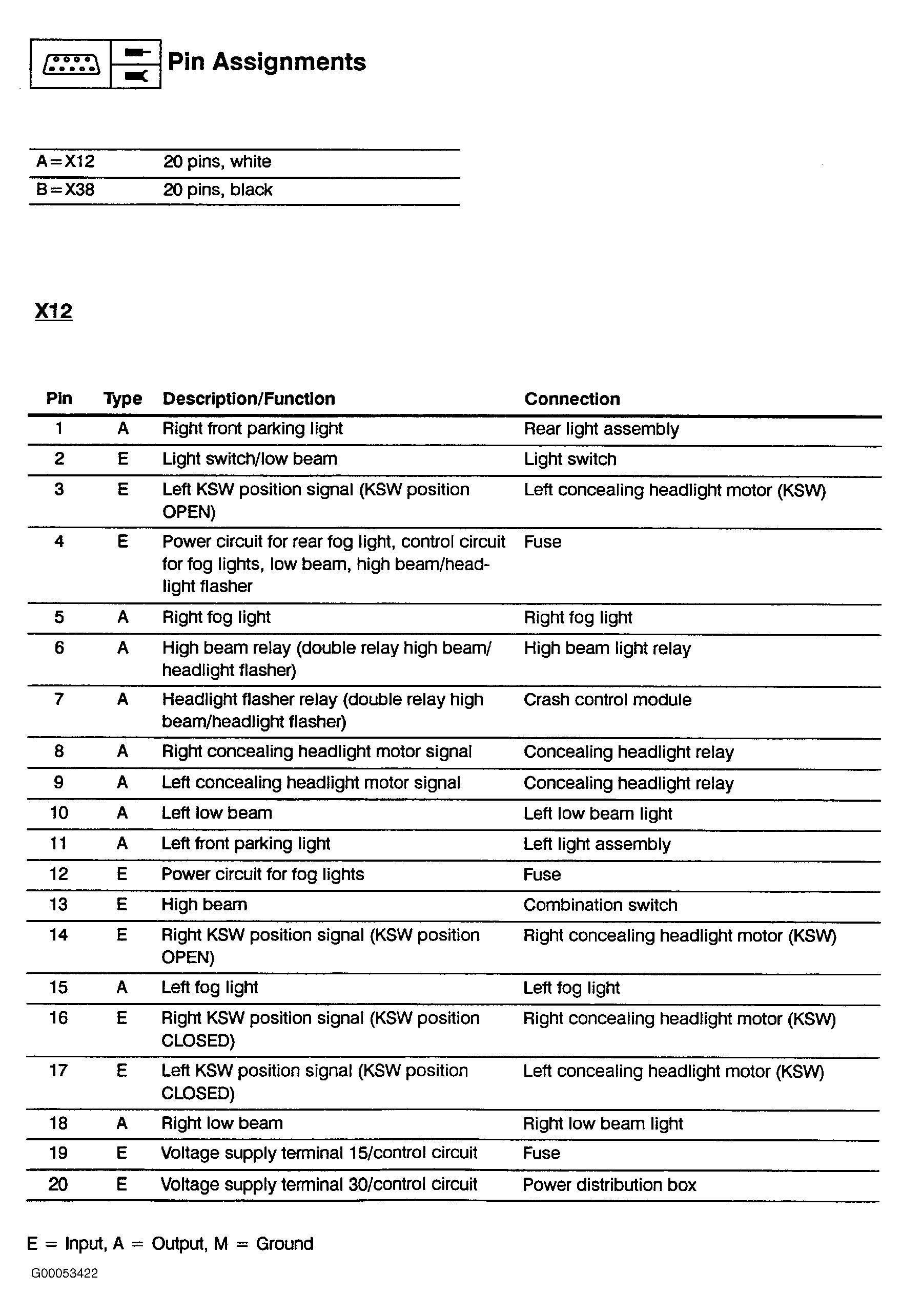

Fig 1: Lamp Monitor Pin Assignments (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

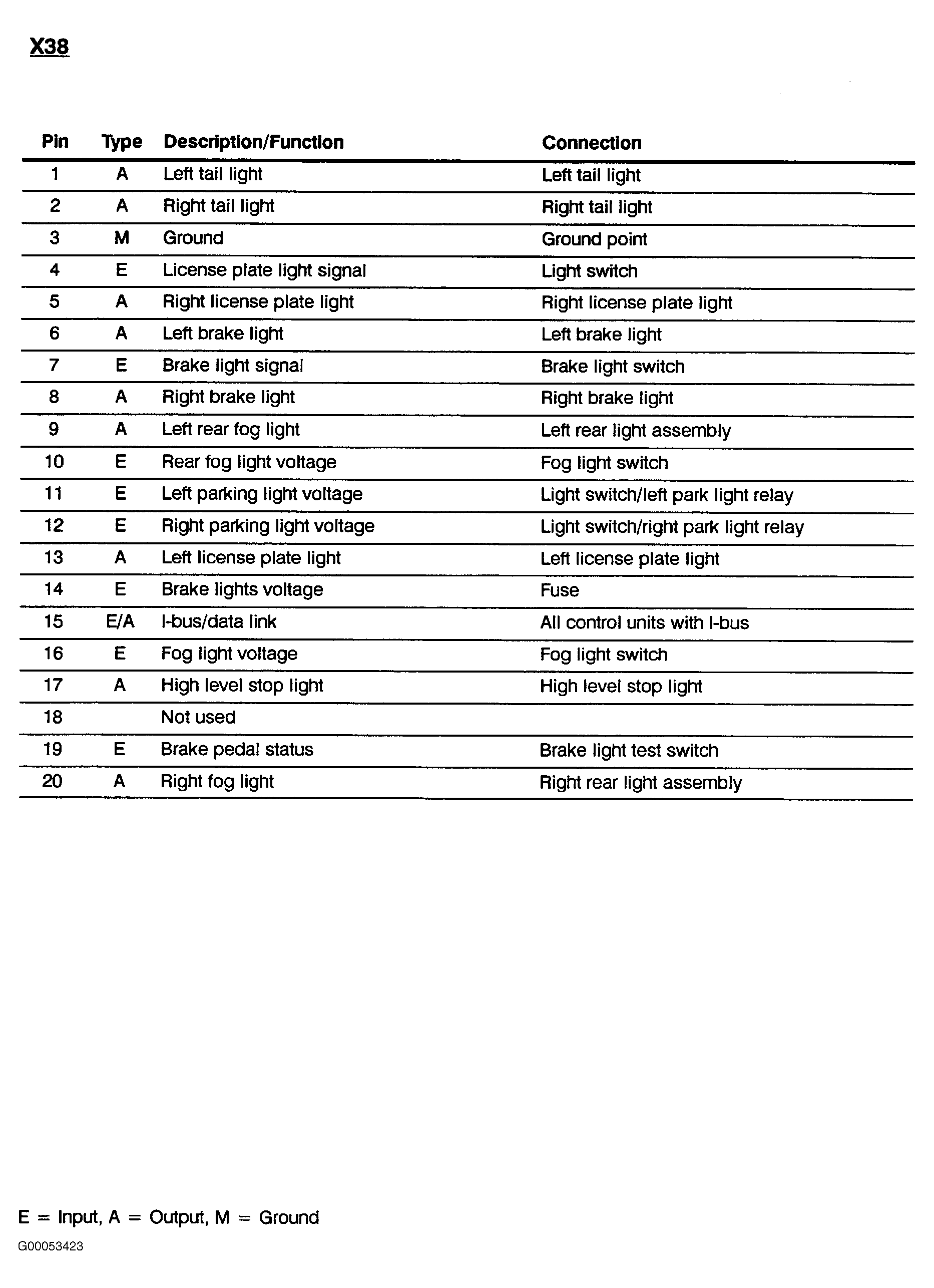

Fig 2: Lamp Monitor Pin Assignments (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
