Lamp Monitor System

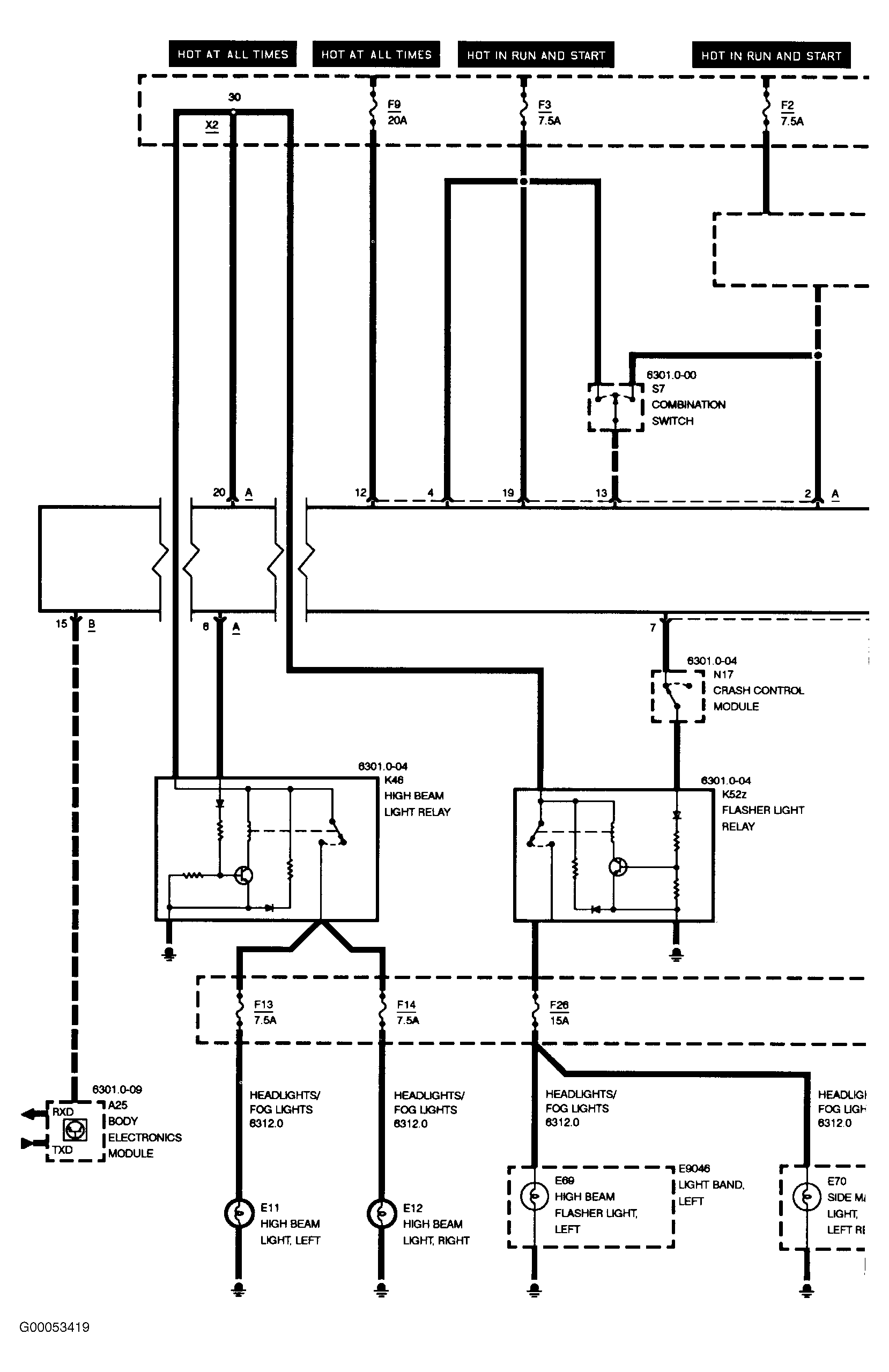

Fig 1: Lamp Monitor (1 Of 3)
G00053419Courtesy of BMW OF NORTH AMERICA, INC.

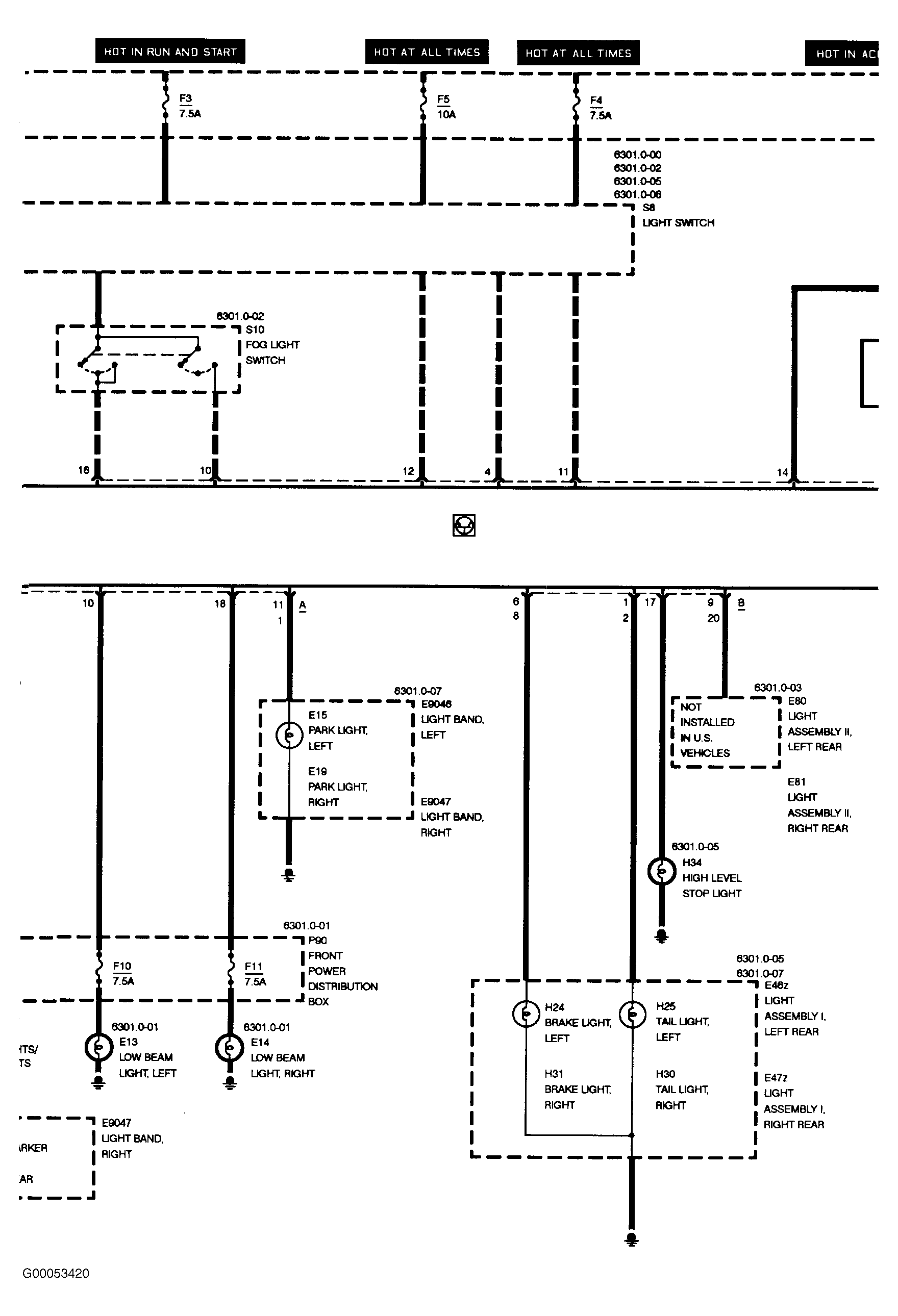

Fig 2: Lamp Monitor (2 Of 3)
G00053420Courtesy of BMW OF NORTH AMERICA, INC.

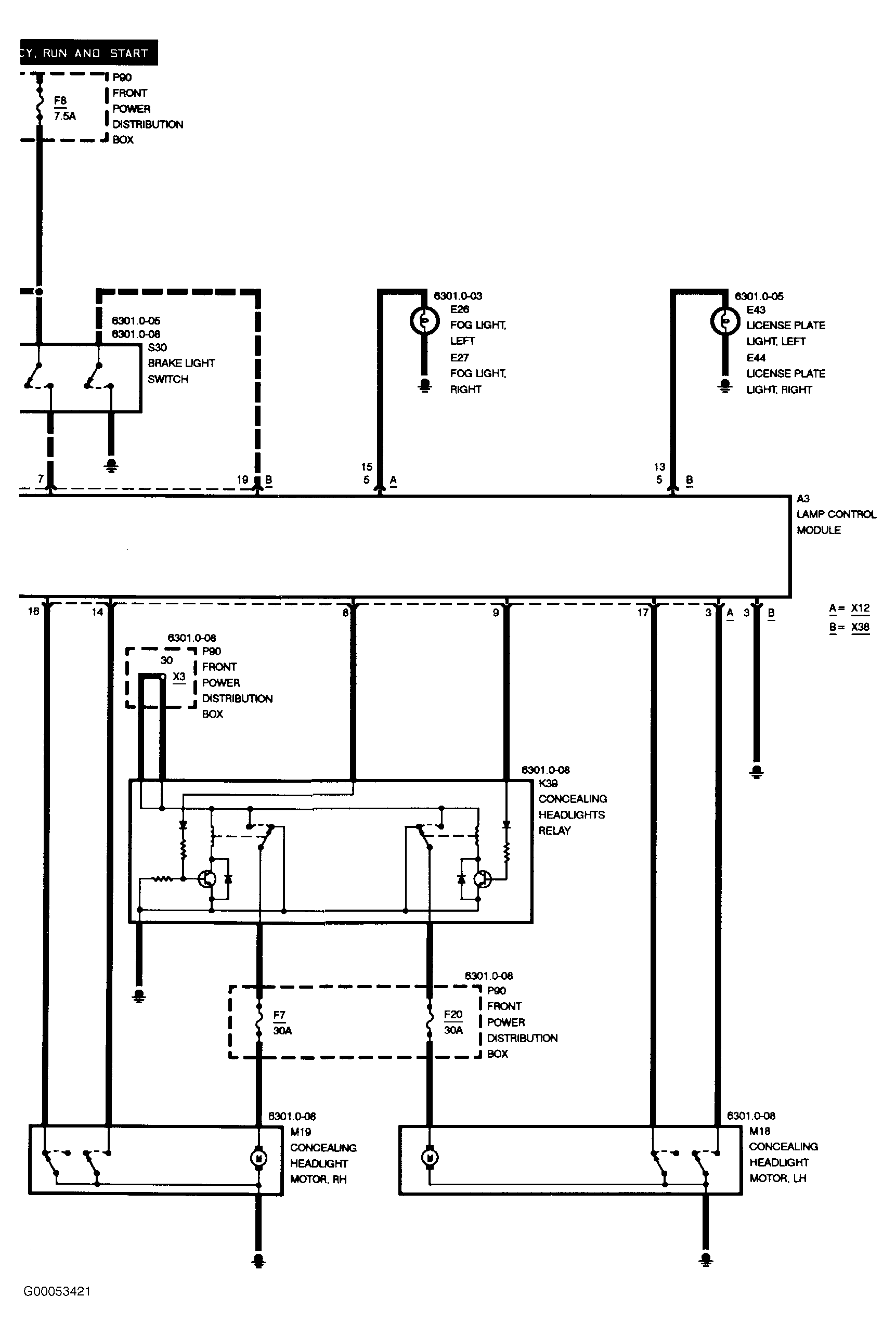

Fig 3: Lamp Monitor (3 Of 3)
G00053421Courtesy of BMW OF NORTH AMERICA, INC.
