Front Fog Lights - Lamp Monitor System

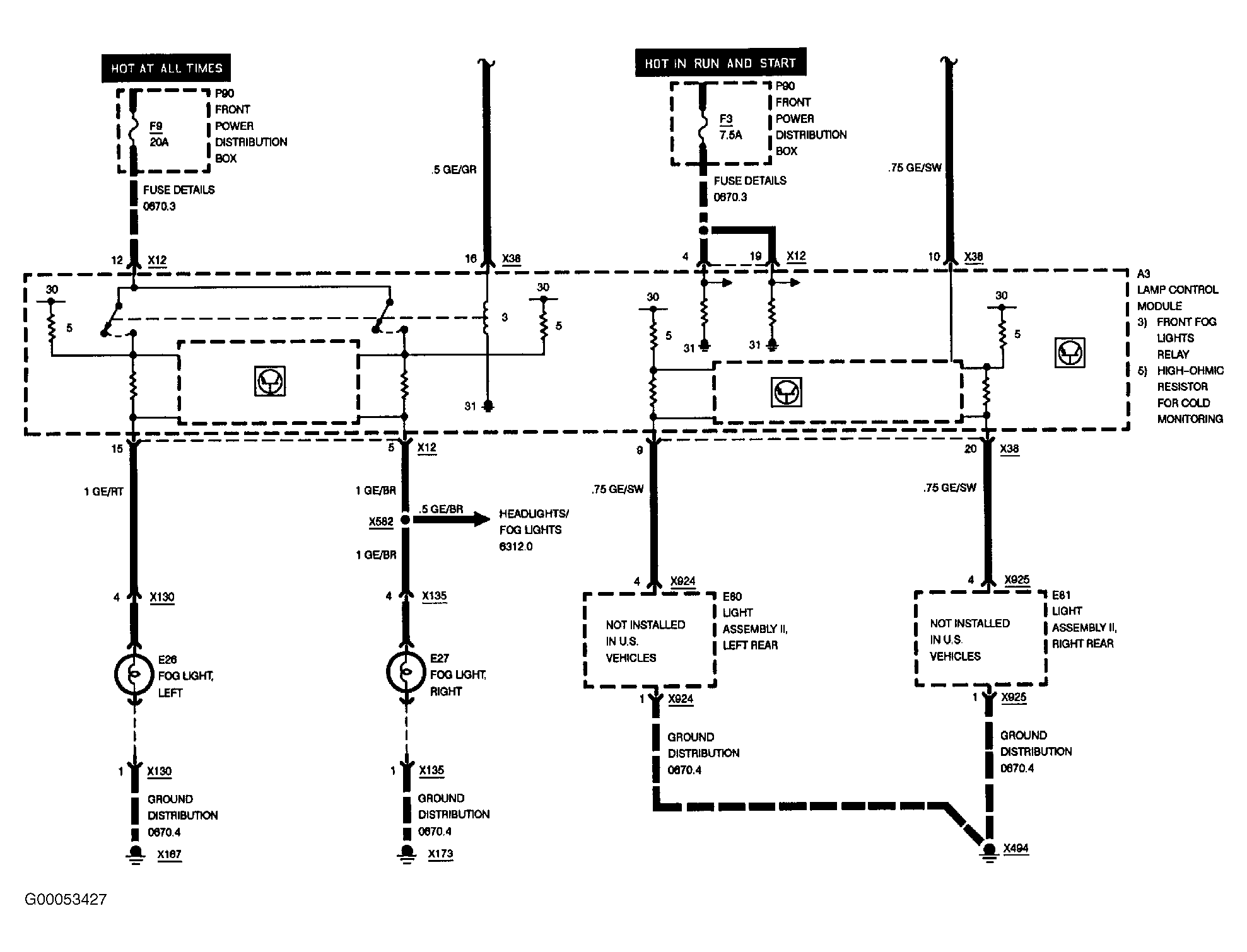

Fig 1: Front Fog Lights - Lamp Monitor System (1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

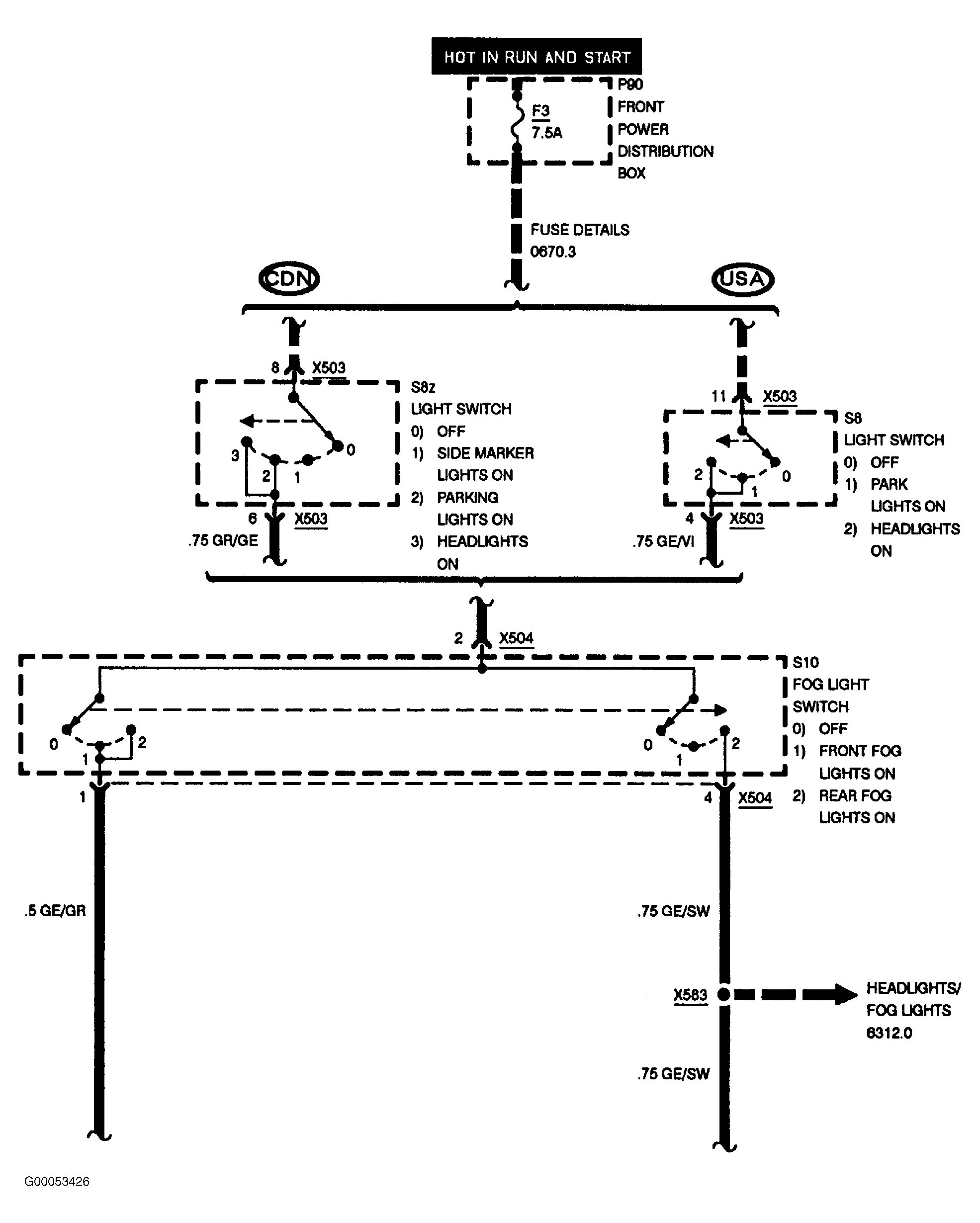

Fig 2: Front Fog Lights - Lamp Monitor System (2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

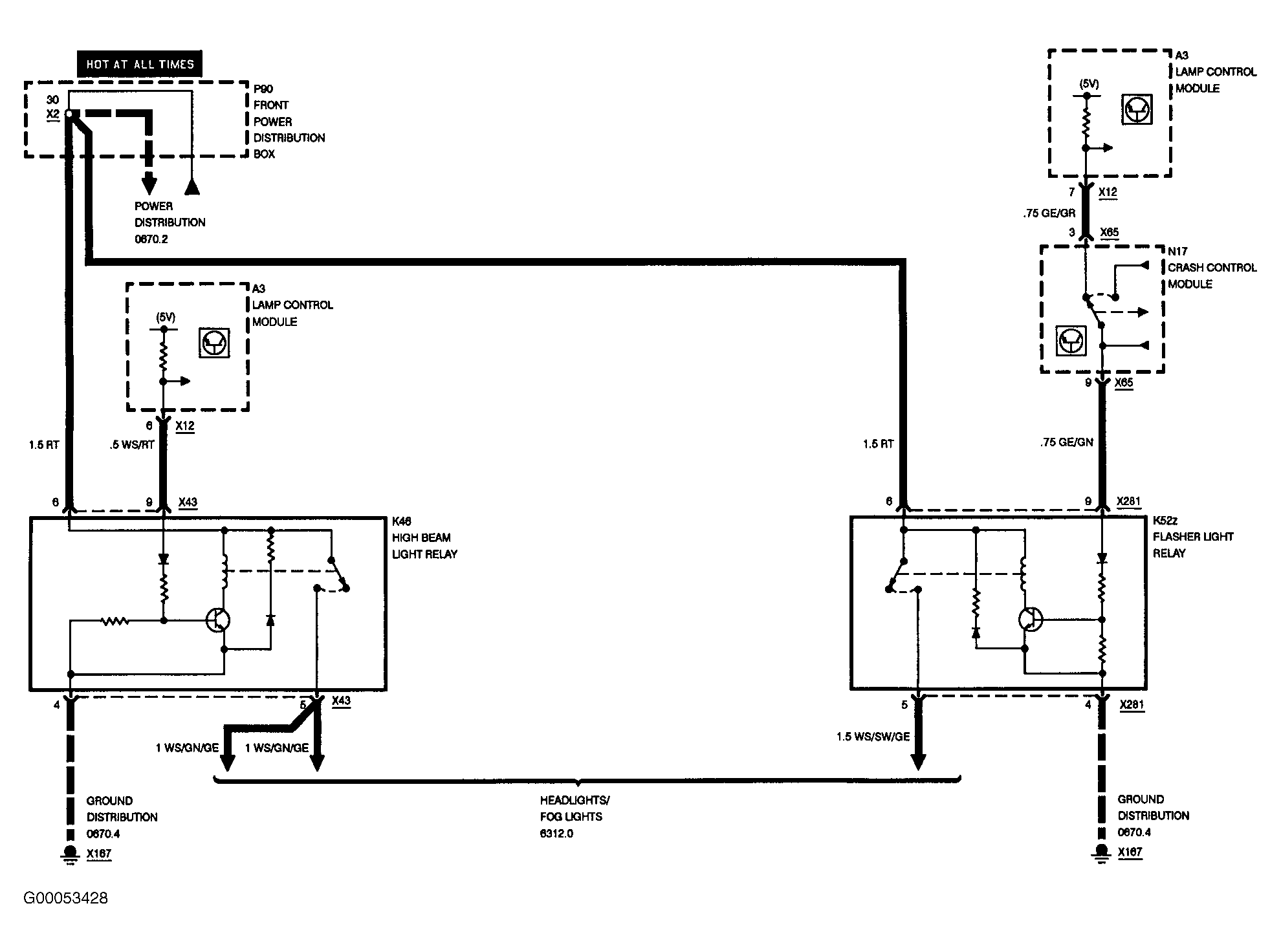

Fig 3: Front Fog Lights - Lamp Monitor System (3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.
