Concealing Headlights - Lamp Monitor System

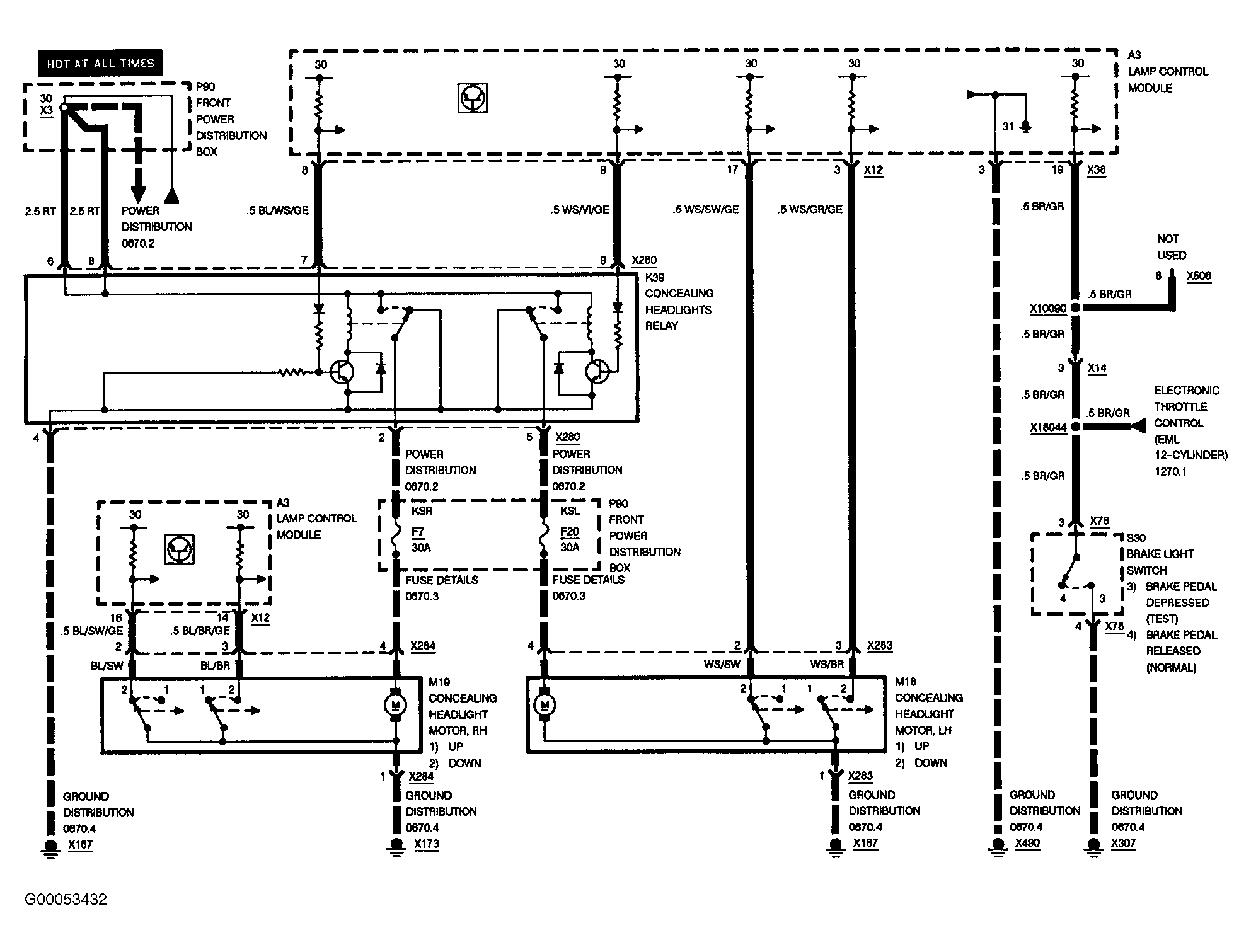

Fig 1: Concealing Headlights - Lamp Monitor System

G00053432

Courtesy of BMW OF NORTH AMERICA, INC.
