Wiring Diagrams - BMW 850 1991-92
>>
Lamp Monitor System (LKM)
>>
Brake & License Plate Lights - Lamp Monitor System
Brake & License Plate Lights - Lamp Monitor System

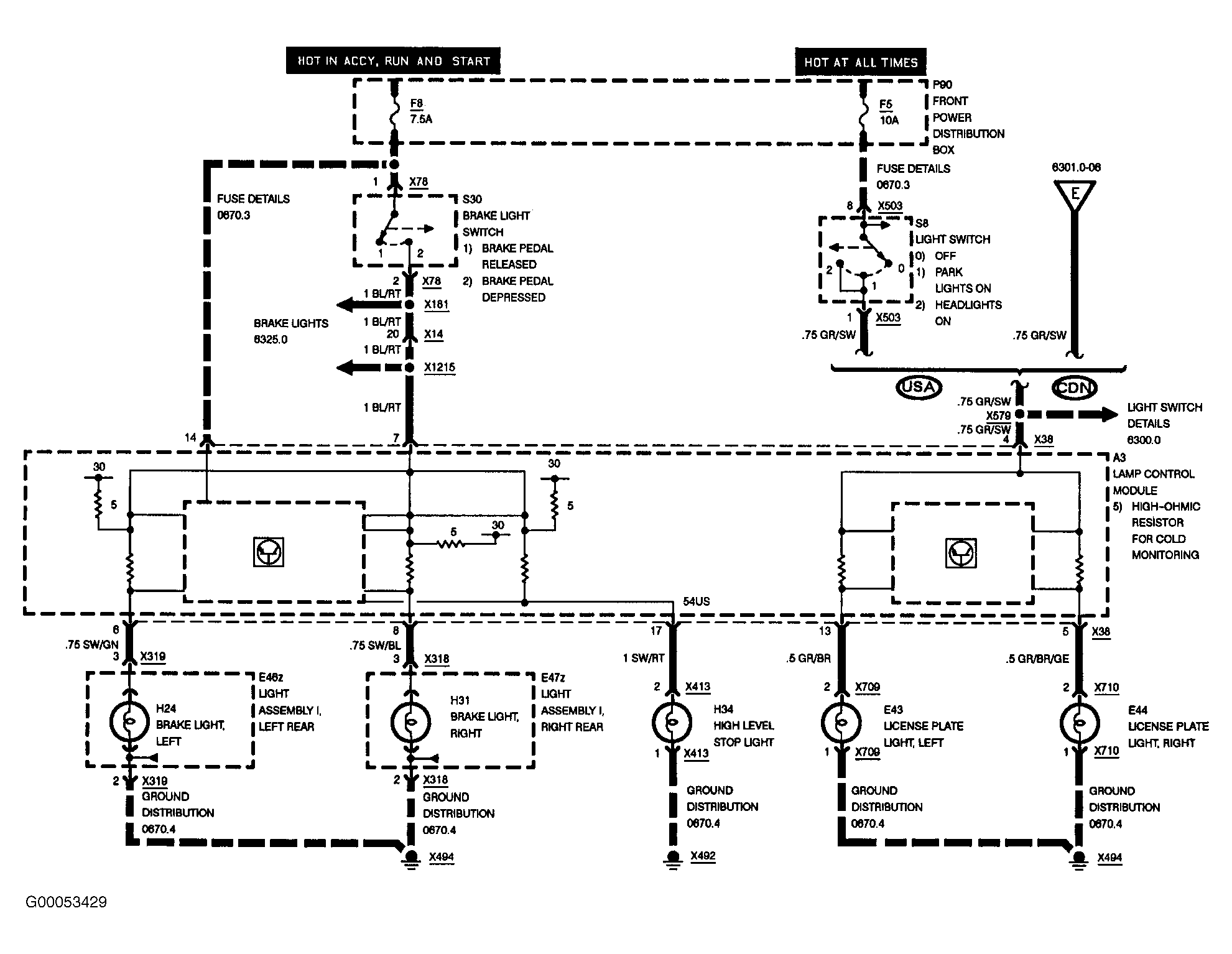

Fig 1: Brake & License Plate Lights - Lamp Monitor System
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
