Wiring Diagrams - BMW 850 1991-92
>>
Interior Accessories
>>
Notes
Interior Accessories: Notes

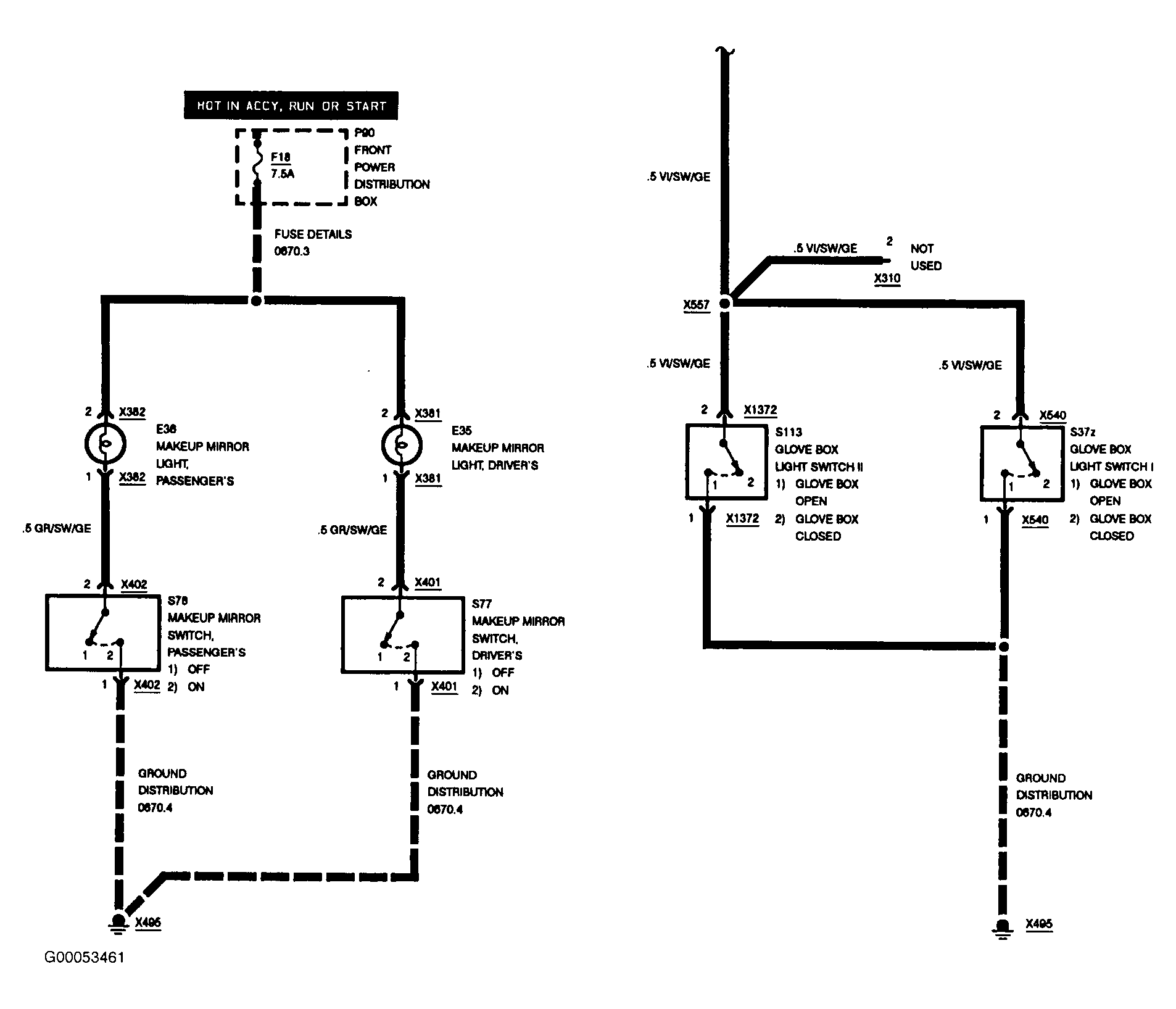

Fig 1: Interior Accessories (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

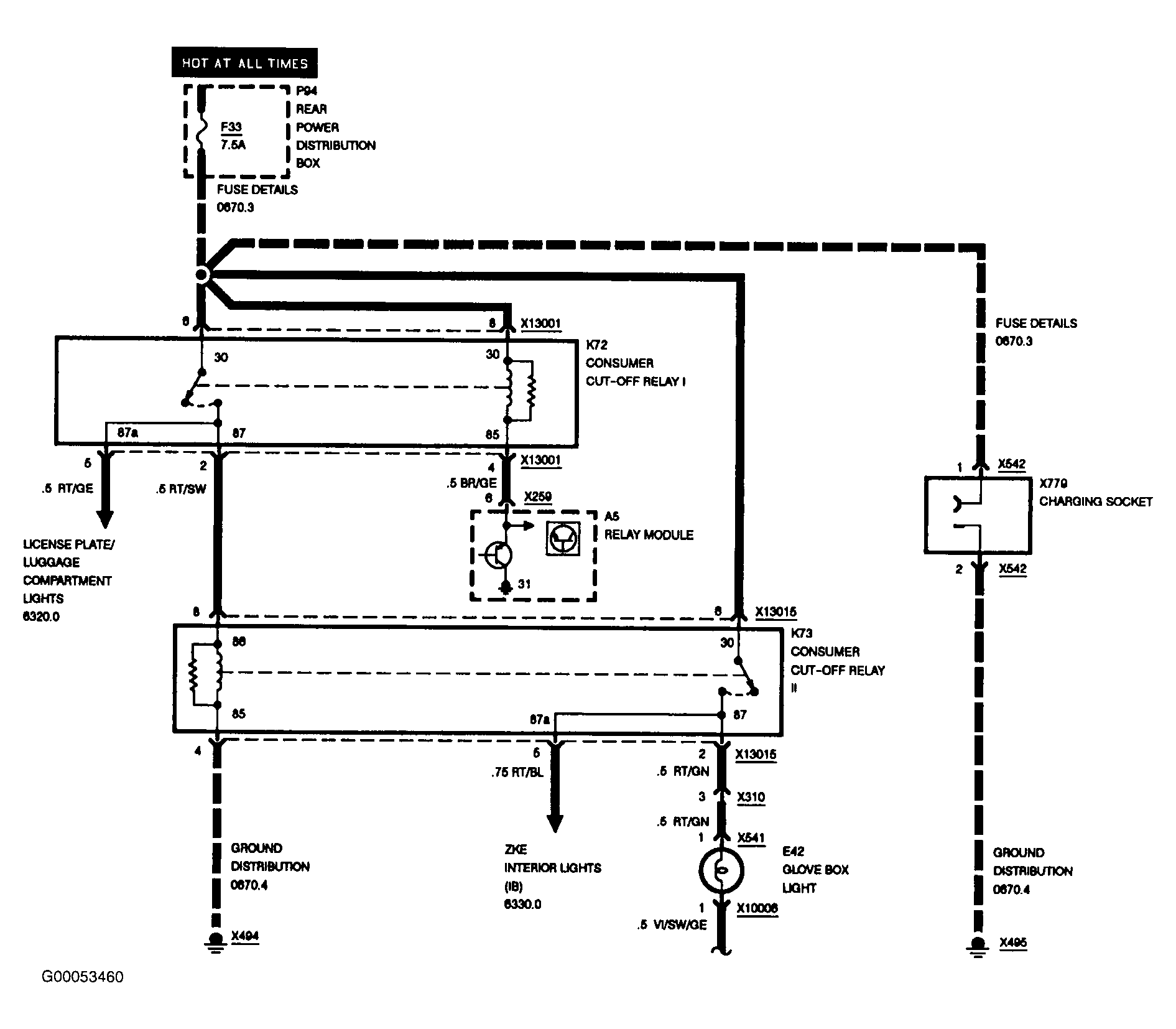

Fig 2: Interior Accessories (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
